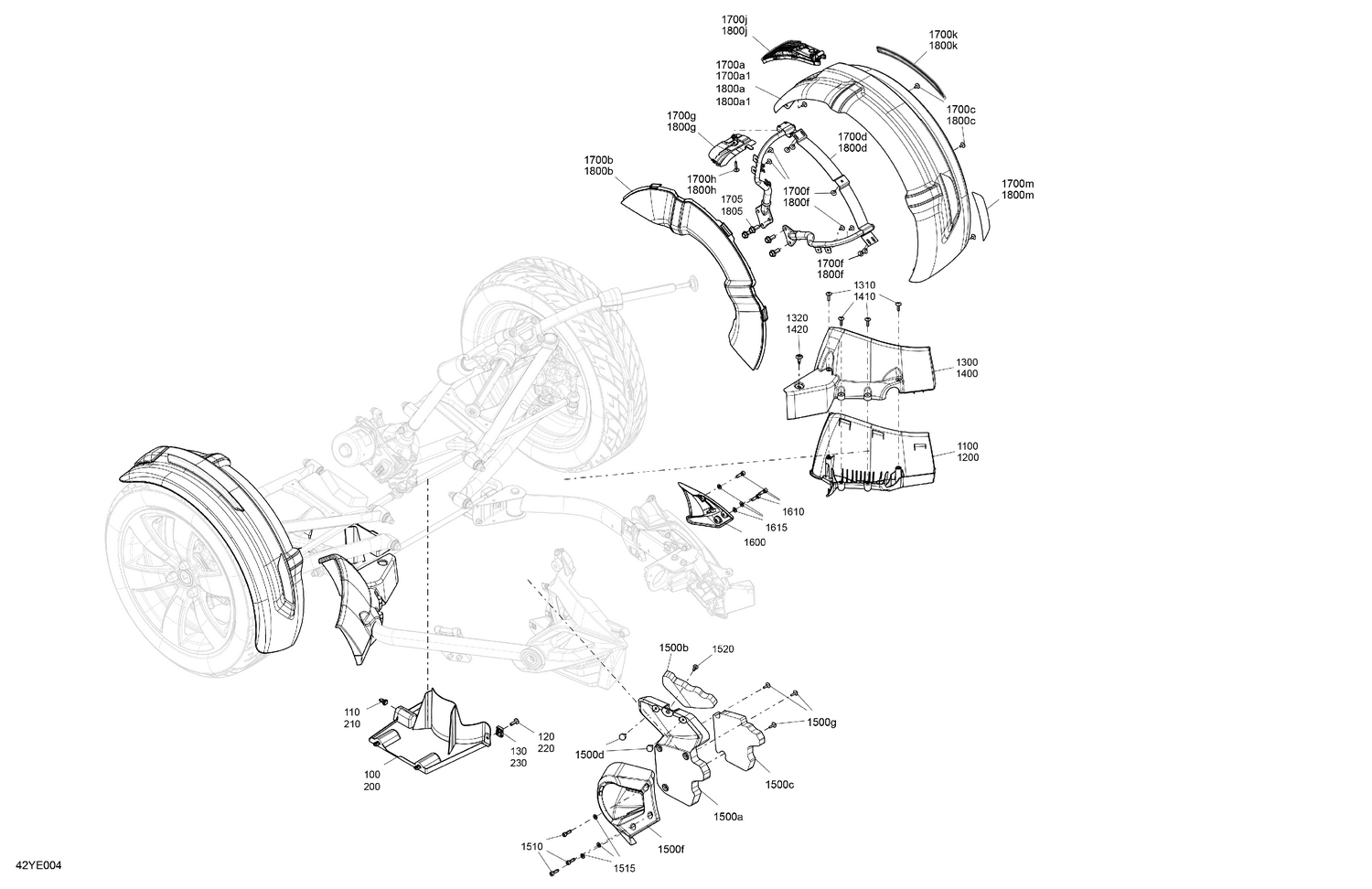

| Ref | Part Number | Description |
|---|
| 100 |
705007785 |
LH Front Skid Plate |
| 110 |
293150230 |
Tuflok Plastic Rivet |
| 120 |
250000705 |
Torx Truss Screw M6 X 20 |
| 130 |
250100208 |
Panel Nut M6 X 1.0 |
| 200 |
705007786 |
RH Front Skid Plate |
| 210 |
293150230 |
Tuflok Plastic Rivet |
| 220 |
250000705 |
Torx Truss Screw M6 X 20 |
| 230 |
250100208 |
Panel Nut M6 X 1.0 |
| 1100 |
705007794 |
LH Deflector |
| 1200 |
705007795 |
RH Deflector |
| 1300 |
705009027 |
LH Shell |
| 1310 |
250000586 |
Torx Truss M5 X 20 |
| 1320 |
414745900 |
Tuflock Phillips Plastic Screw |
| 1400 |
705009029 |
RH Shell |
| 1410 |
250000586 |
Torx Truss M5 X 20 |
| 1420 |
414745900 |
Tuflock Phillips Plastic Screw |
| 1500a |
705009144 |
LH Acoustic Fairing |
| 1500b |
705009344 |
Acoustic Foam |
| 1500c |
705009162 |
Acoustic Foam |
| 1500d |
708000759 |
Rubber Stopper |
| 1500f |
705007780 |
LH Engine Fairing |
| 1500g |
250000725 |
Screw M4 X 16 |
| 1510 |
205562060 |
Socket Head Screw M6 X 20, Scotch Grip |
| 1515 |
234061600 |
Stainless Flat Washer M6 |
| 1520 |
293730024 |
Dart, Fastex |
| 1600 |
705007781 |
RH Engine Fairing |
| 1610 |
205562060 |
Socket Head Screw M6 X 20, Scotch Grip |
| 1615 |
234061600 |
Stainless Flat Washer M6 |
| 1700a1 |
705012976 |
Bare, LH Front Fender |
| 1700b |
705012975 |
LH Inner Fender |
| 1700c |
250000805 |
Plastite Screw M4 X 10 |
| 1700d |
705013519 |
LH Front Fender Support Ass'y |
| 1700f |
250000805 |
Plastite Screw M4 X 10 |
| 1700g |
705013499 |
LH Light Protector |
| 1700h |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 1700j |
710007008 |
LH Front Position Light |
| 1700k |
705012404 |
Yellow, LH Reflector |
| 1700m |
705014736 |
Red, Rear Reflector |
| 1705 |
250000773 |
Hexagonal Screw M8X25 Dog Point |
| 1800a1 |
705012868 |
Bare, RH Front Fender |
| 1800b |
705012867 |
RH Inner Fender |
| 1800c |
250000805 |
Plastite Screw M4 X 10 |
| 1800d |
705012981 |
RH Front Fender Support Ass'y |
| 1800f |
250000805 |
Plastite Screw M4 X 10 |
| 1800g |
705013530 |
RH Light Protector |
| 1800h |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 1800j |
710007009 |
RH Front Position Light |
| 1800k |
705012405 |
Yellow, RH Reflector |
| 1800m |
705014736 |
Red, Rear Reflector |
