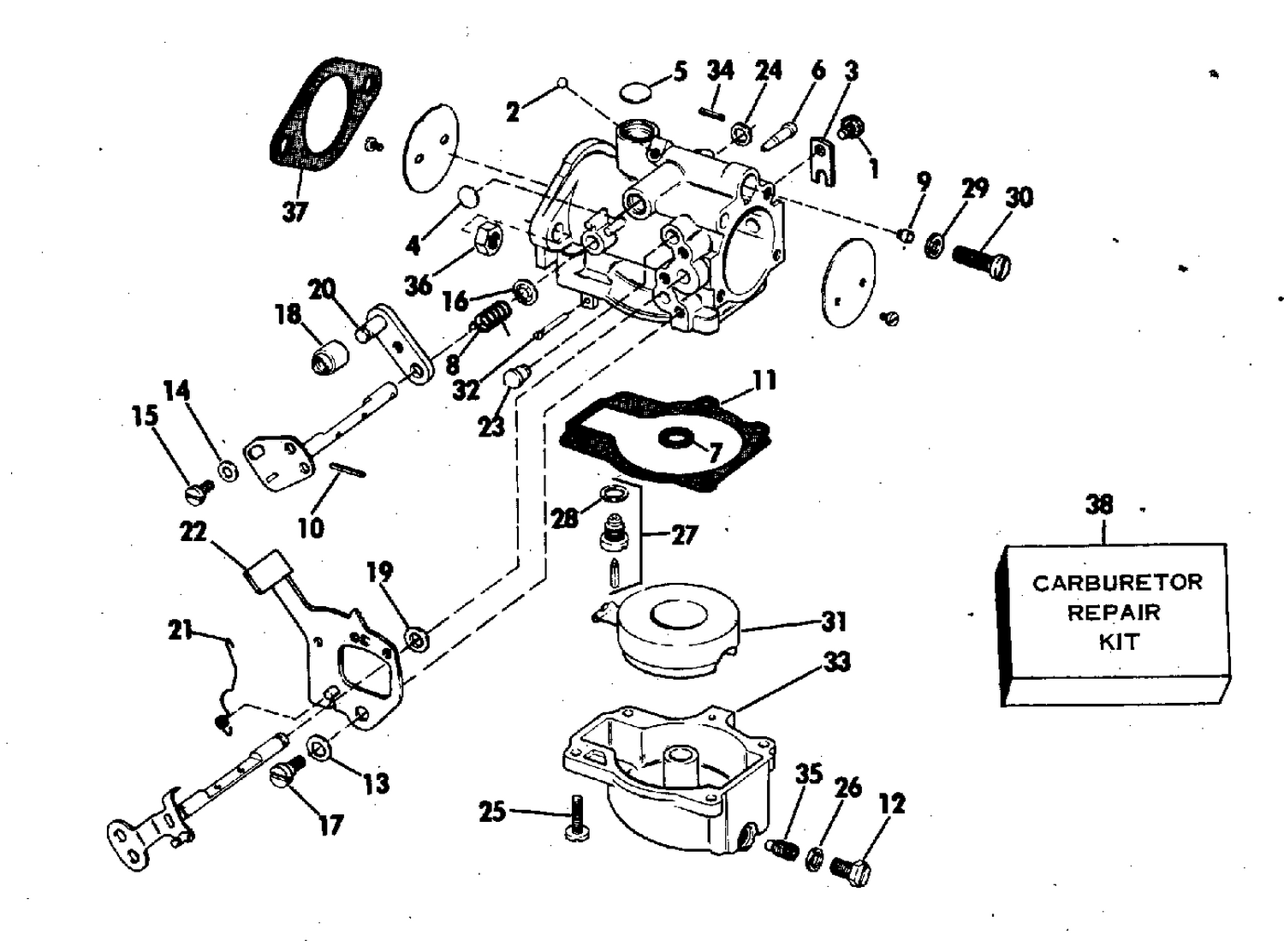

CARBURETOR
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 0314906 | CLIP |
| 9 | 0322776 | ORIFICE 150 only |
| 10 | 0307901 | ROLL PIN |
| 11 | 3136331 | GASKET, Float bowl |
| 12 | 0307832 | PLUG, Screw |
| 22 | 0388160 | LEVER & PIN ASSY |
| 33 | 0387590 | FLOAT CHAMBER |
| 35 | 0321407 | ORFICE PLUG (54D) |
| 36 | 0316355 | BUT, Carburetor mounting |
| 37 | 0325092 | GASKET This part replaces 0314477. |
| 0387917 | 0387917 | CARB ASSY. , Upper |
| 0387918 | 0387918 | CARB ASSY. , Lower |
| 0389485 | 0389485 | CARB ASSY. , Lower |
| 0389486 | 0389486 | CARB ASSY. , Upper |
