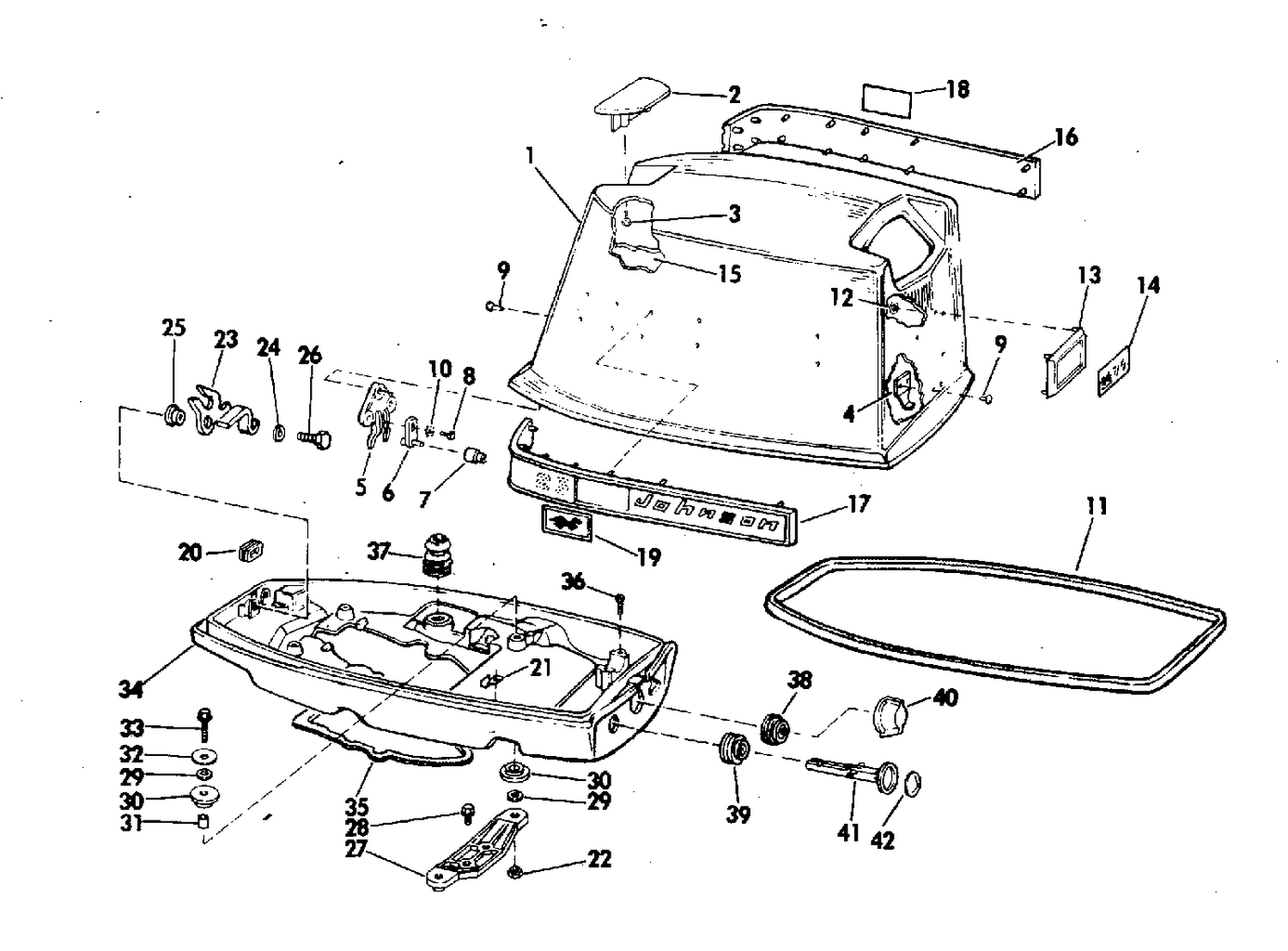

| Ref | Part Number | Description |
|---|
| 1 |
0384926 |
MOTOR COVER ASSY |
| 2 |
0381165 |
TILT HAND & SCREW ASSY |
| 3 |
0312299 |
VIS, serre-câble |
| 4 |
0320400 |
HOOK, Engine cover This part replaces 0316170. |
| 6 |
0384332 |
LIDE & PIN |
| 8 |
0302468 |
SCREW, Ground lead |
| 13 |
0317104 |
APPLIQUE,Front |
| 14 |
0317101 |
PLATE,Front |
| 15 |
0206655 |
SOUND BLANKET |
| 16 |
0317028 |
APPLIQUE,Port |
| 17 |
0317029 |
APPLIQUE, Stbd |
| 18 |
0317102 |
PLATE,Port |
| 19 |
0317103 |
PLATE,Stbd |
| 20 |
0316346 |
GROMMET, Latch lever |
| 21 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 23 |
0316347 |
LEVER, Cover latch |
| 24 |
0204445 |
BOW WASHER |
| 25 |
0204444 |
BUSHING |
| 26 |
0302592 |
SCREW |
| 27 |
0325868 |
BRACKET, Cove to exh. hsg., front This part replaces 0316345. |
| 29 |
0329241 |
RONDELLE This part replaces 0306482. |
| 30 |
0316354 |
ENGINE COVER SUPPORT GROMMET This part replaces 0302405. |
| 31 |
0302406 |
SLEEVE |
| 33 |
0316476 |
SCREW |
| 34 |
0321460 |
MOTOR COVER, Lower This part replaces 0317308. |
| 35 |
0308292 |
SEAL |
| 36 |
0307907 |
SCREW |
| 37 |
0304019 |
CROMMET, CONTROL SHAFT |
| 38 |
0204456 |
GORMMET, Low speed knob |
| 39 |
0204457 |
GOMMET, Choke knob |
| 40 |
0316473 |
KNOB, Slow speed |
| 41 |
0315553 |
CHOKE KNOB |
| 42 |
0315521 |
INSERT |
| 0385328 |
0385328 |
DECAL SET-MANUAL |
| 0385329 |
0385329 |
DECAL SET-ELECTRIC |
