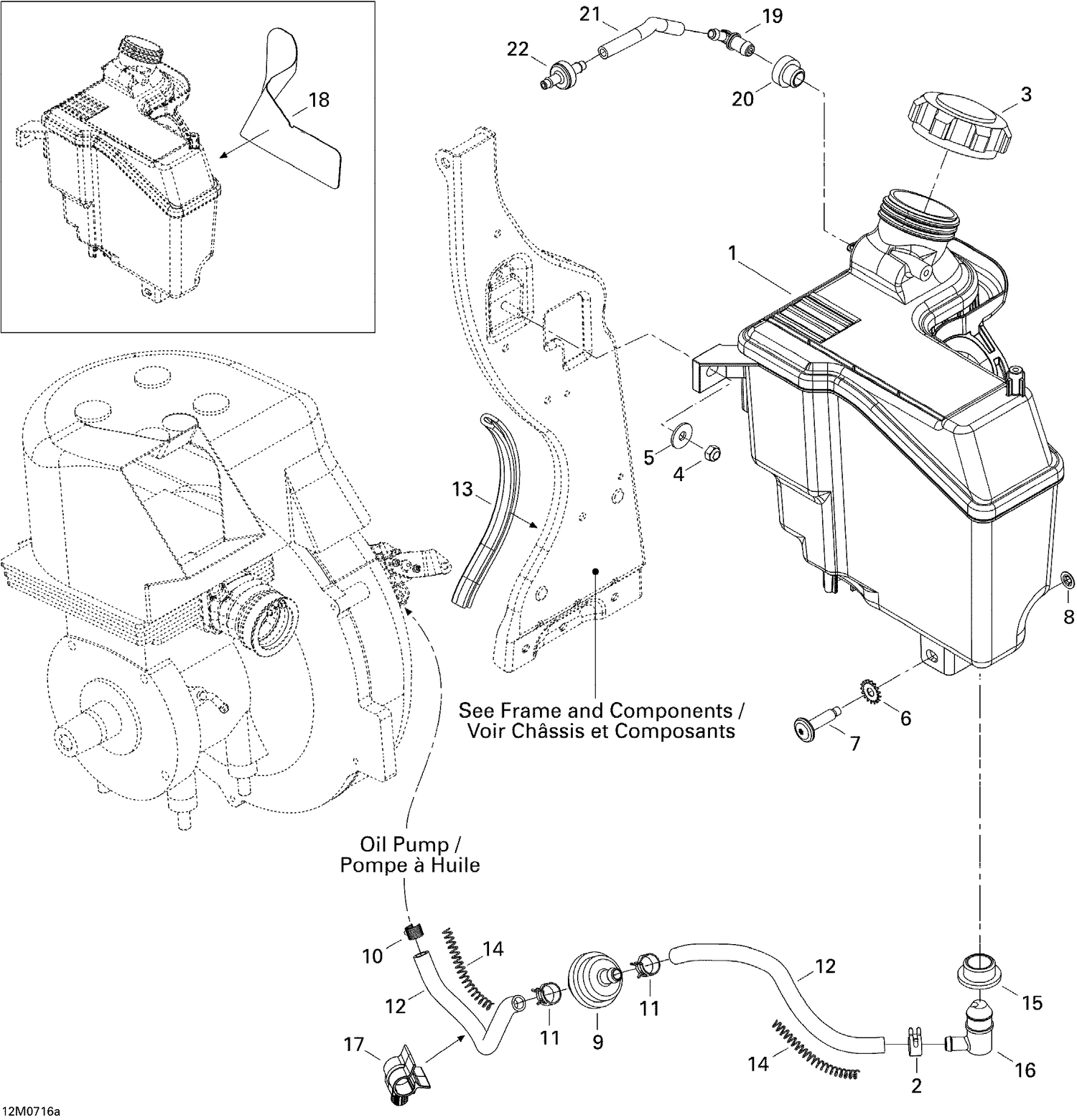

02- Oil System 300F
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000073 | INJECTION OIL TANK - Call your local BRP dealership |
| 2 | 293650042 | Oetiker Clamp |
| 3 | 519000033 | CAP - Call your local BRP dealership |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 250200082 | Flat Washer This part replaces 391302000. |
| 6 | 250200041 | Lock Washer Serrated M6 |
| 7 | 250000728 | Torx Screw M6 X 25 This part replaces 250000081. |
| 8 | 732610072 | Push Nut |
| 9 | 414536500 | Filter |
| 10 | 414420700 | Spring Clamp |
| 11 | 414415200 | Spring Clamp |
| 12 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 13 | 219704353 | Was 271000110 Protection Trim |
| 14 | 519000125 | SPRING - Call your local BRP dealership |
| 15 | 570023000 | Insulating Ring |
| 16 | 519000124 | Elbow Fitting 90° |
| 17 | 275500528 | Hose Retainer |
| 18 | 519000054 | REFLECTIVE SHEET - Call your local BRP dealership |
| 19 | 414580700 | Male Connector |
| 20 | 513032908 | Grommet |
| 21 | 219704410 | Polyurethane Hose 10000Mm Long |
