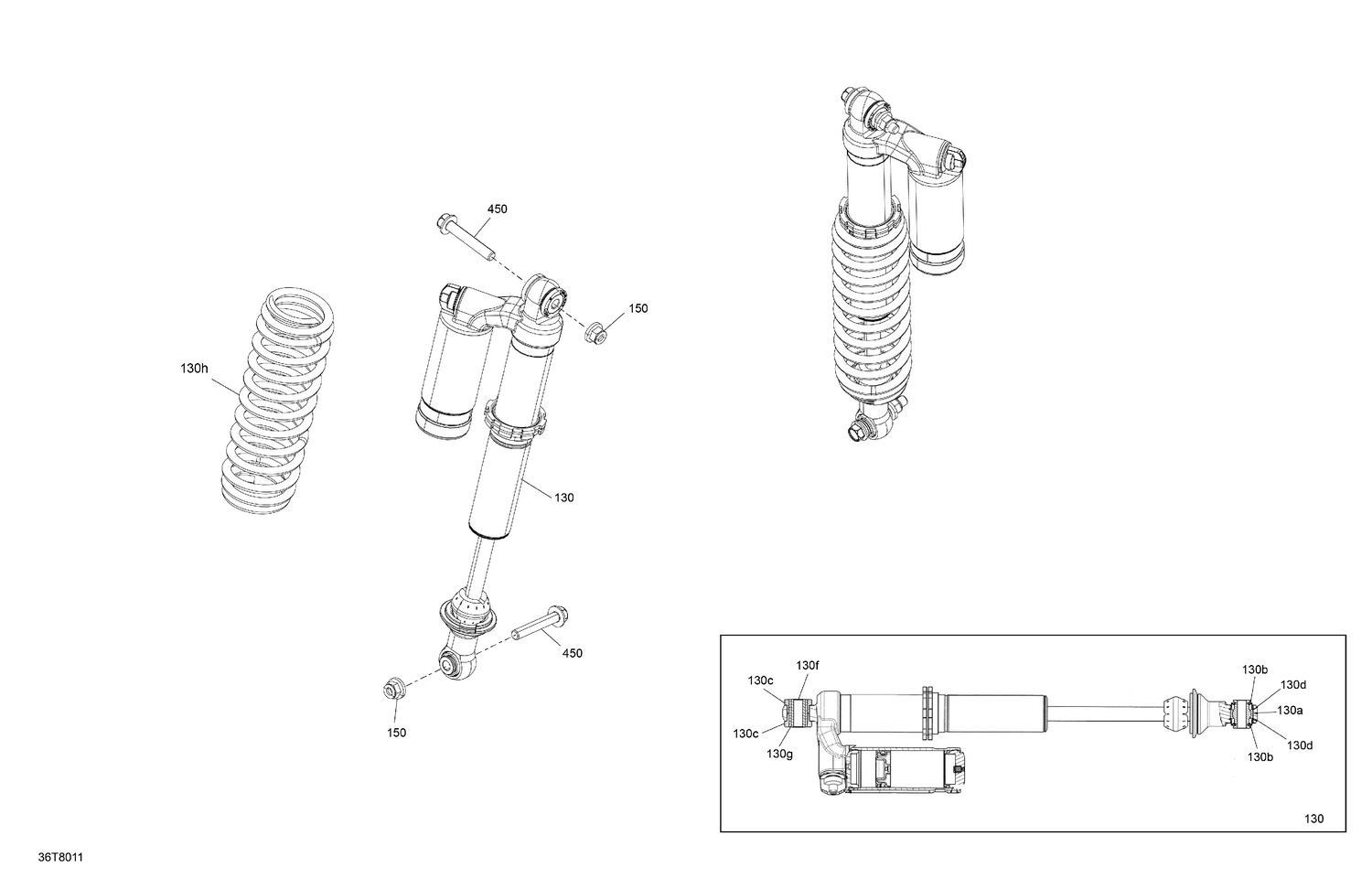

05- Suspension - Rear Shocks
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 130a | 715900336 | Ball Journal |
| 130b | 715900331 | Protector |
| 130c | 706201648 | Bushing |
| 130d | 715900252 | Retaining Ring |
| 130f | 706201586 | Bushing Sleeve |
| 130g | 706201585 | Bushing Sleeve |
| 130h | 706002584 | SPRING_COMPRESSION B-101A PAINTED - Call your local BRP dealership |
| 150 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
