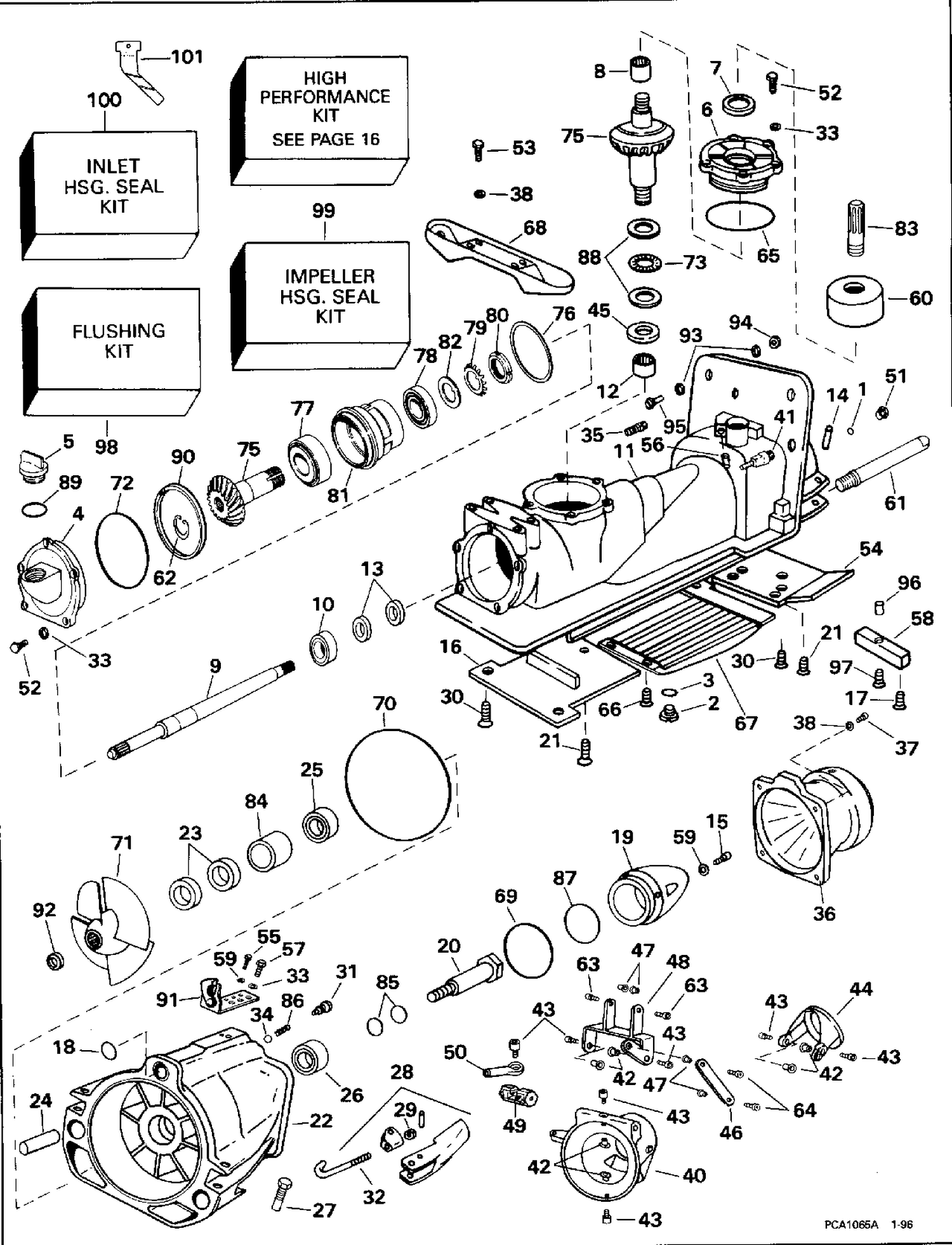

| Ref | Part Number | Description |
|---|
| 1 |
0341394 |
O-RING, Shift cable bushing |
| 1 |
0341547 |
O-RING, Shift cable bushing |
| 4 |
0339870 |
COVER, Inlet housing |
| 5 |
0337208 |
PLUG, Oil fill |
| 6 |
0436286 |
BEARING HEAD & SEAL ASSY. |
| 9 |
0437596 |
DRIVESHAFT & BEARING ASSY. |
| 10 |
0340330 |
BEARING, Internal pump shaft |
| 11 |
0437518 |
HOUSING ASSY., Inlet |
| 12 |
0398194 |
BEARING ASSY. |
| 13 |
0340343 |
SEAL, Inlet housing |
| 14 |
0340349 |
PIN, Clamp to hook |
| 15 |
0340335 |
BOLT |
| 16 |
0340336 |
CLAMP, Pump hold down |
| 17 |
0341897 |
BOLT, Anode mounting |
| 18 |
0340358 |
O-RING |
| 19 |
0340339 |
COVER, Pump cone |
| 20 |
0340340 |
IMPELLER SHAFT |
| 21 |
0340332 |
BOLT |
| 22 |
0437677 |
HOUSING ASSY., Impeller |
| 23 |
0340343 |
SEAL, Inlet housing |
| 24 |
0340749 |
BUSHING, Guide |
| 25 |
0340803 |
BEARING |
| 26 |
0340330 |
BEARING, Internal pump shaft |
| 27 |
0341873 |
PIN, Clamp to impeller housing |
| 28 |
0437516 |
CLAMP ASSY., Pump impeller |
| 29 |
0340351 |
NUT, Swivel to hook |
| 30 |
0340333 |
BOLT |
| 31 |
0340354 |
PLUG, Pressure relief |
| 32 |
0340355 |
HOOK, Impeller to intake |
| 33 |
0329241 |
RONDELLE |
| 34 |
0340357 |
BALL, Pressure relief |
| 35 |
0340807 |
FITTING |
| 36 |
0342340 |
NOZZLE |
| 37 |
0340360 |
BOLT |
| 40 |
0340363 |
NOZZLE, Steering |
| 42 |
0340365 |
BUSHING, Steering |
| 43 |
0340366 |
BOLT, Shoulder pump nozzle |
| 44 |
0340367 |
GATE, Reverse |
| 46 |
0340370 |
ARM, Linkage, reverse gate |
| 47 |
0340371 |
BUSHING, Arm |
| 48 |
0340372 |
LINKAGE, Reverse gate |
| 49 |
0340373 |
PIVOT, Reverse gate cable |
| 50 |
0340374 |
CABLE END, Reverse gate |
| 51 |
0340528 |
BUSHING, Shift cable |
| 52 |
0340503 |
BOLT |
| 53 |
0340504 |
BOLT |
| 54 |
0340745 |
PLATE, Inlet housing ride plate |
| 55 |
0340505 |
BOLT, Clamp, stbd., 13/64 in. (5mm) |
| 56 |
0340807 |
FITTING |
| 57 |
0341895 |
BOLT, Clamp, port, (6mm) |
| 58 |
0340746 |
ANODE, Inlet housing |
| 60 |
0340871 |
COUPLER |
| 61 |
0340747 |
PIN, Impeller housing alignment |
| 62 |
0340513 |
SNAP RING, Pump shaft |
| 63 |
0340514 |
BOLT, Reverse linkage arm |
| 64 |
0342121 |
SCREW, Shift linkage |
| 65 |
0340516 |
O-RING, Top housing cover |
| 66 |
0341896 |
BOLT |
| 67 |
0343154 |
GRATE, Intake This part replaces 0340518. |
| 67 |
0438063 |
INTAKE GRATE |
| 68 |
0340519 |
ARM, Engine mount |
| 69 |
0340334 |
O-RING |
| 70 |
0340338 |
HOUSING, Seal |
| 71 |
0340529 |
IMPELLER |
| 72 |
0339871 |
O-RING, Cover |
| 75 |
0437521 |
GEARSET ASSY. |
| 76 |
0911668 |
SHIM, Bearing carrier .010" |
| 76 |
0911669 |
SHIM, Bearing carrier .011" |
| 76 |
0911670 |
SHIM, Bearing carrier .012" |
| 76 |
0911671 |
SHIM, Bearing carrier .013" |
| 76 |
0911672 |
SHIM, Bearing carrier .014" |
| 76 |
0911673 |
SHIM, Bearing carrier .015" |
| 76 |
0911674 |
SHIM, Bearing carrier .016" |
| 76 |
0911675 |
SHIM, Bearing carrier .017" |
| 76 |
0911676 |
SHIM, Bearing carrier .018" |
| 76 |
0911677 |
SHIM, Bearing carrier .019" |
| 77 |
0983891 |
BEARING, Pinion, upper |
| 78 |
0983892 |
BEARING, Pinion lower |
| 79 |
0911752 |
RETAINER, Nut |
| 80 |
0911753 |
NUT, Pinion |
| 81 |
0911750 |
BEARING CARRIER, Pinion |
| 82 |
0911697 |
WASHER, Pinion |
| 83 |
0343383 |
SHAFT, Coupler to powerhead |
| 84 |
0340344 |
SLEEVE, Inside pump seals |
| 85 |
0340804 |
O-RING, Impeller shaft |
| 86 |
0341641 |
SPRING, Pressure relief |
| 87 |
0341174 |
O-RING |
| 89 |
0911718 |
O-RING, Nipple |
| 90 |
0911751 |
RETAINER RING, Pinion hsg |
| 91 |
0340748 |
CLAMP, Shift cable |
| 92 |
0340750 |
SEAL, Impeller to driveshaft |
| 95 |
0341463 |
SCREW, Housing to transom |
| 96 |
0341306 |
SPACER, Anode |
| 97 |
0324579 |
SCREW |
| 98 |
0437021 |
FLUSHING KIT |
| 99 |
0437531 |
SEAL KIT, Impeller housing |
| 100 |
0437522 |
SEAL KIT, Inlet housing |
