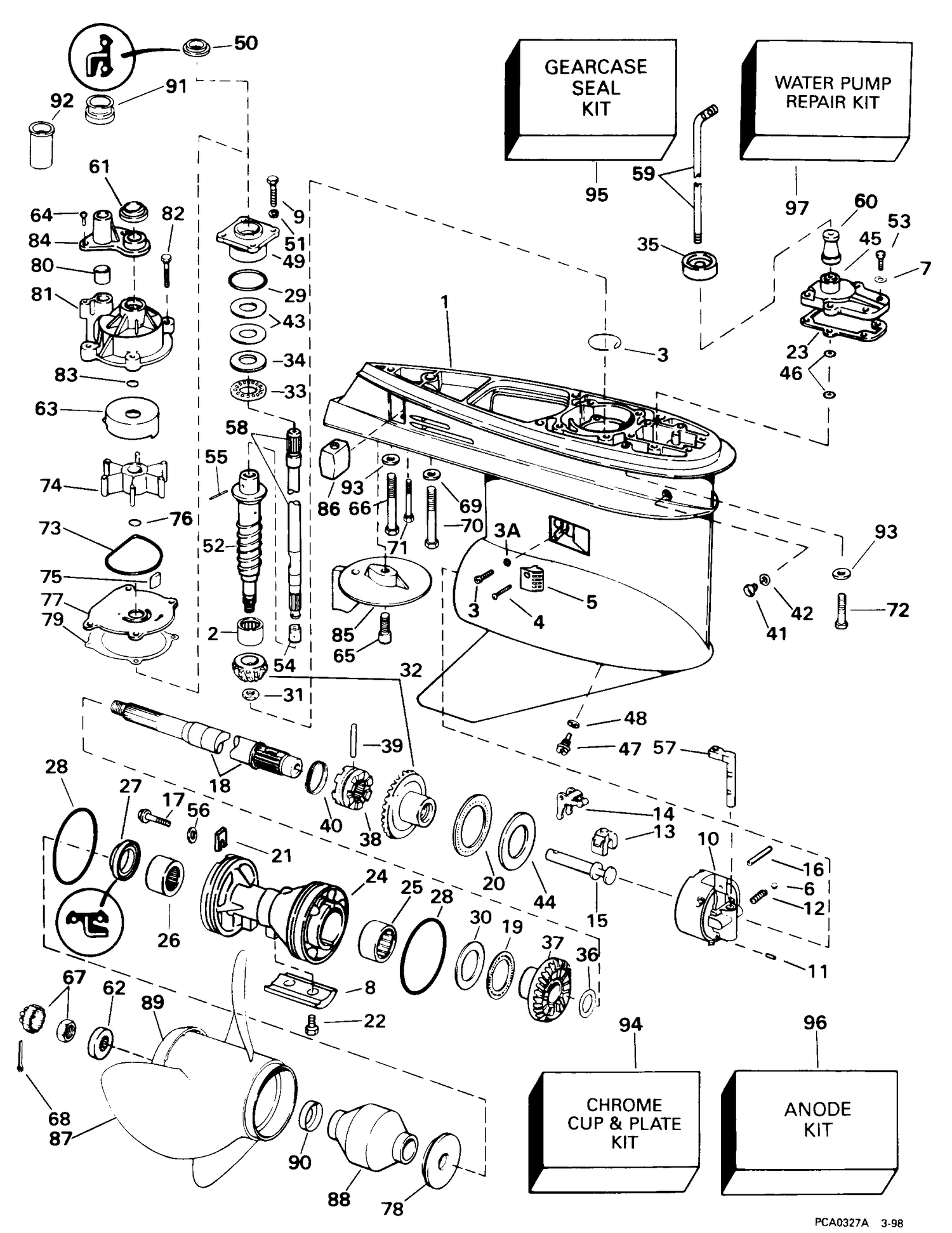

| Ref | Part Number | Description |
|---|
| 3 |
0338778 |
RETAINING RING |
| 27 |
0341281 |
SEAL |
| 28 |
0305123 |
O RING |
| 50 |
0341280 |
SEAL |
| 51 |
0910901 |
INSERT |
| 58 |
5007671 |
DRIVESHAFT Assembly, Upper This part replaces 0436232. |
| 58 |
5007672 |
DRIVESHAFT Assembly, Upper This part replaces 0436233. |
| 59 |
0329864 |
SHIFT ROD |
| 59 |
0329865 |
SHIFT ROD |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 66 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 81 |
0435990 |
IMPELLER HOUSING |
| 83 |
0331188 |
O-Ring |
| 85 |
0338742 |
COMPENSATEUR DE DÉRIVE |
| 87 |
0765187 |
PROPELLER, WDEX Models This part replaces 0391200. |
| 94 |
0435526 |
CHROME CUP & PLATE KIT |
| 95 |
5006373 |
GEARCASE SEAL KIT This part replaces 0439141. |
| 96 |
0392160 |
ANODE KIT |
| 97 |
5001594 |
WATER PUMP REPAIR KIT This part replaces 0434421. |
| 0439506 |
5004639 |
G-Case .44 Std Os This part replaces 0439506. |
| 0439982 |
5004639 |
G-Case .44 Std Os This part replaces 0439982. |
