Parts Catalog

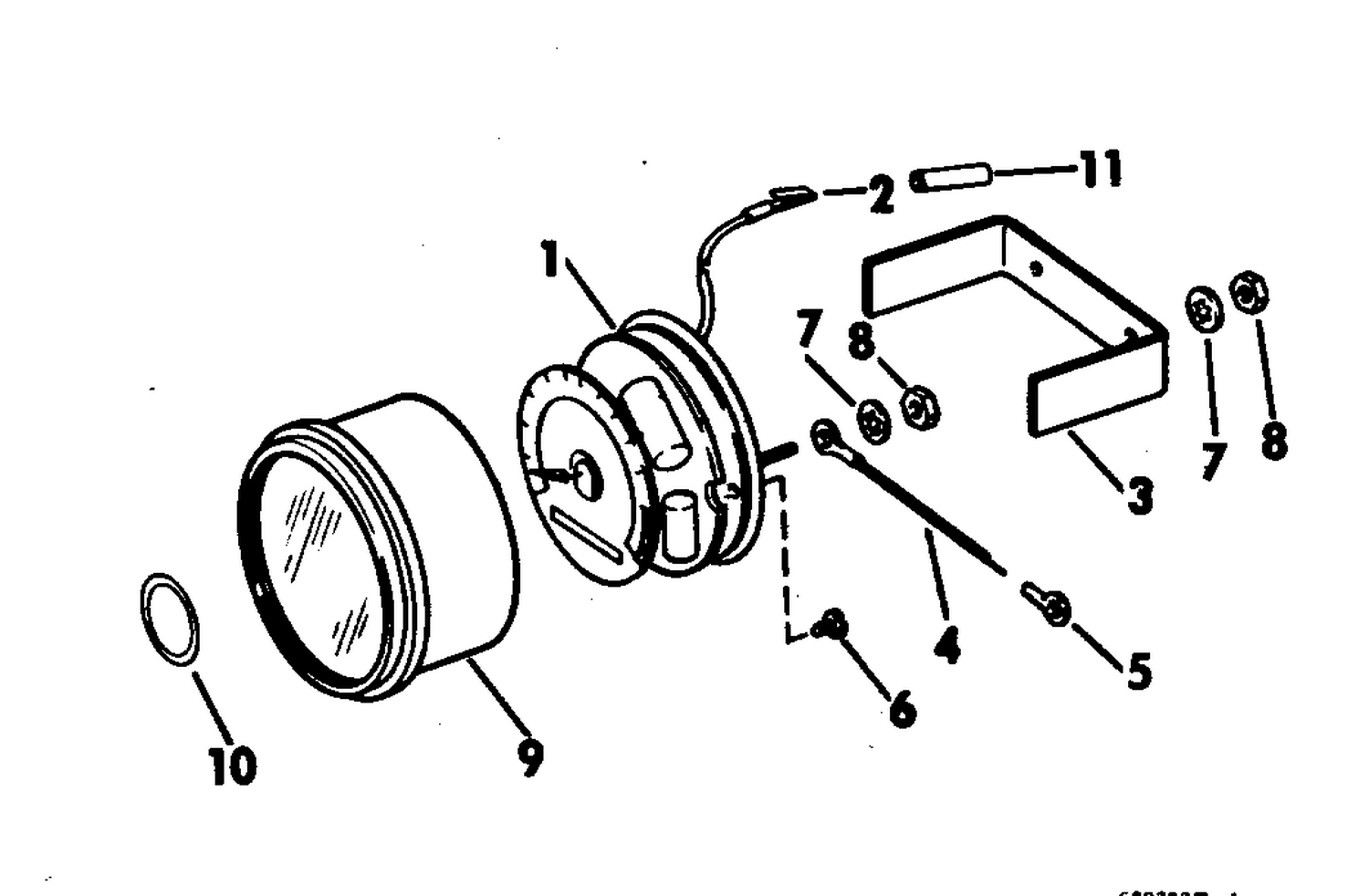

FLUSH MOUNT TACHOMETER 90, 120, 155, 210 HP

Parts (8)

Ref	Part Number	Description
1	0172045	TACHOMETER
3	0121350	BRACKET
4	0171745	GROUND WIRE ASSEMBLY
6	0121354	MOUNTING SCREW, Instrument
7	0304642	LOCKWASHER
9	0171759	CASE ASSEMBLY
10	0121720	BITTON,Trim
0171741	0171741	TACHOMETER ASSEMABLY
