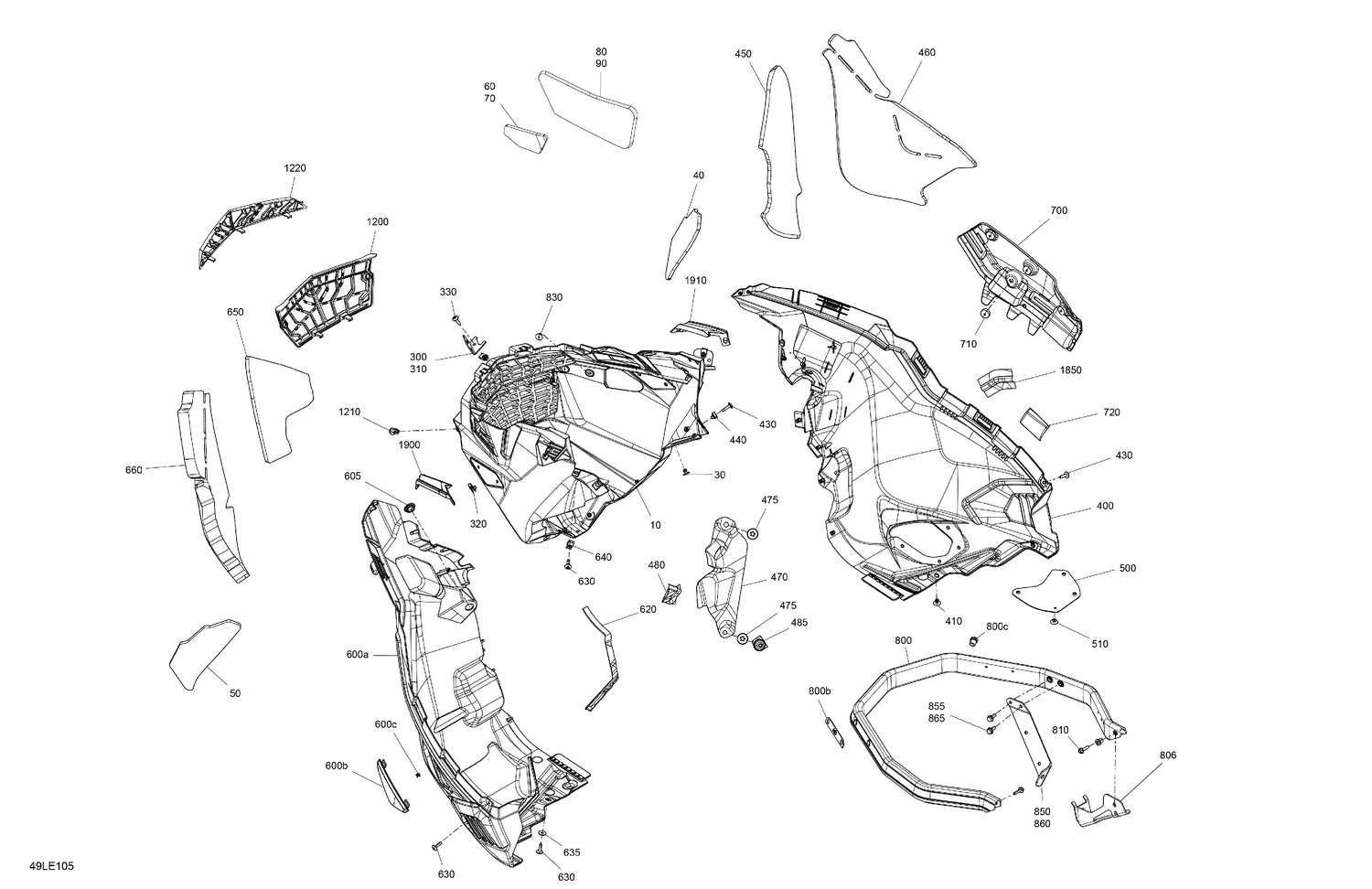

| Ref | Part Number | Description |
|---|
| 10 |
502008648 |
Front Bottom Pan |
| 30 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 40 |
502007788 |
Foam |
| 50 |
502007789 |
Foam |
| 60 |
502008308 |
Foam |
| 70 |
502008309 |
Foam |
| 80 |
502008355 |
Bonded Foam |
| 90 |
502008356 |
Bonded Foam |
| 300 |
502007723 |
LH Screw Plate |
| 310 |
502007724 |
RH Screw Plate |
| 320 |
250000958 |
Panel Nut M5 X 0.8 |
| 330 |
250000586 |
Torx Truss M5 X 20 |
| 400 |
502007922 |
RH Bottom Pan 600MM |
| 410 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 430 |
250000586 |
Torx Truss M5 X 20 |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 450 |
502008403 |
RH Upper Bottom Pan Foam |
| 460 |
502008404 |
RH Lower Bottom Pan Foam |
| 470 |
502007902 |
Heat Shield |
| 475 |
508000853 |
Push Nut |
| 480 |
44110 |
Aluminum Foil |
| 485 |
44110 |
Aluminum Foil |
| 500 |
502007901 |
Plate |
| 510 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 600a |
502008097 |
LH Bottom Pan |
| 600b |
502007676 |
Bottom Pan Door |
| 600c |
269800431 |
Hairpin |
| 605 |
518330527 |
Bottom Pan Plug |
| 620 |
219704476 |
Gasket, Neoprene 2000Mm Long |
| 630 |
250000586 |
Torx Truss M5 X 20 |
| 635 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 650 |
502008405 |
LH Upper Bottom Pan Foam |
| 660 |
502008406 |
LH Lower Bottom Pan Foam |
| 700 |
502008199 |
Heat Shield |
| 710 |
502008149 |
Stopper |
| 720 |
44110 |
Aluminum Foil |
| 800b |
502007880 |
Bumper Trim |
| 800c |
293450398 |
Insert |
| 806 |
502008380 |
Horn Bracket |
| 810 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 850 |
502008104 |
RH Bumper Support |
| 855 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 860 |
502008105 |
LH Bumper Support |
| 865 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 1200 |
502007978 |
Lower Pre Filter |
| 1210 |
293150230 |
Tuflok Plastic Rivet |
| 1220 |
502007977 |
Upper Pre Filter |
| 1850 |
44110 |
Aluminum Foil |
| 1900 |
502008035 |
LH Bottom Pan Deflector |
