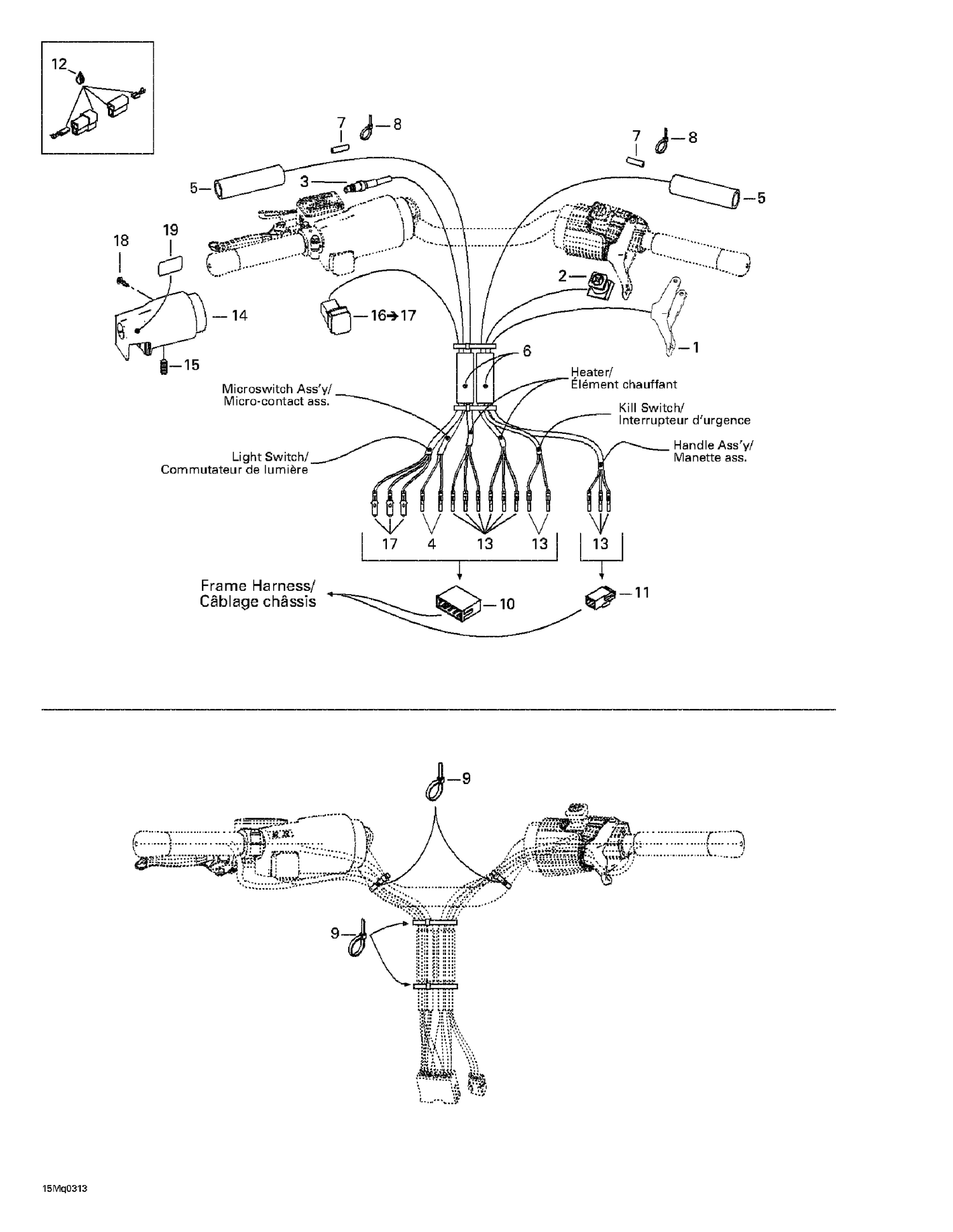

| Ref | Part Number | Description |
|---|
| 1 |
512060214 |
Handle Ass'y This part replaces 512059623. |
| 2 |
515175410 |
Kill Switch |
| 3 |
507032366 |
Microswitch |
| 4 |
515175232 |
Male Terminal |
| 5 |
515175682 |
Heating Element |
| 6 |
515175314 |
GAINE LOW TEMP.VINYL - Call your local BRP dealership |
| 7 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 8 |
293750001 |
Tie Wrap 94 mm |
| 9 |
414115200 |
Tie-Rap 180 mm |
| 10 |
515175352 |
MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 11 |
515175494 |
Male Housing, 3 Circuits |
| 12 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 13 |
515175232 |
Male Terminal |
| 14 |
515175696 |
BRAKE HOUSING - Call your local BRP dealership |
| 15 |
414440800 |
Socket Set Screw M8 X 10 |
| 17 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 18 |
250000022 |
SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
