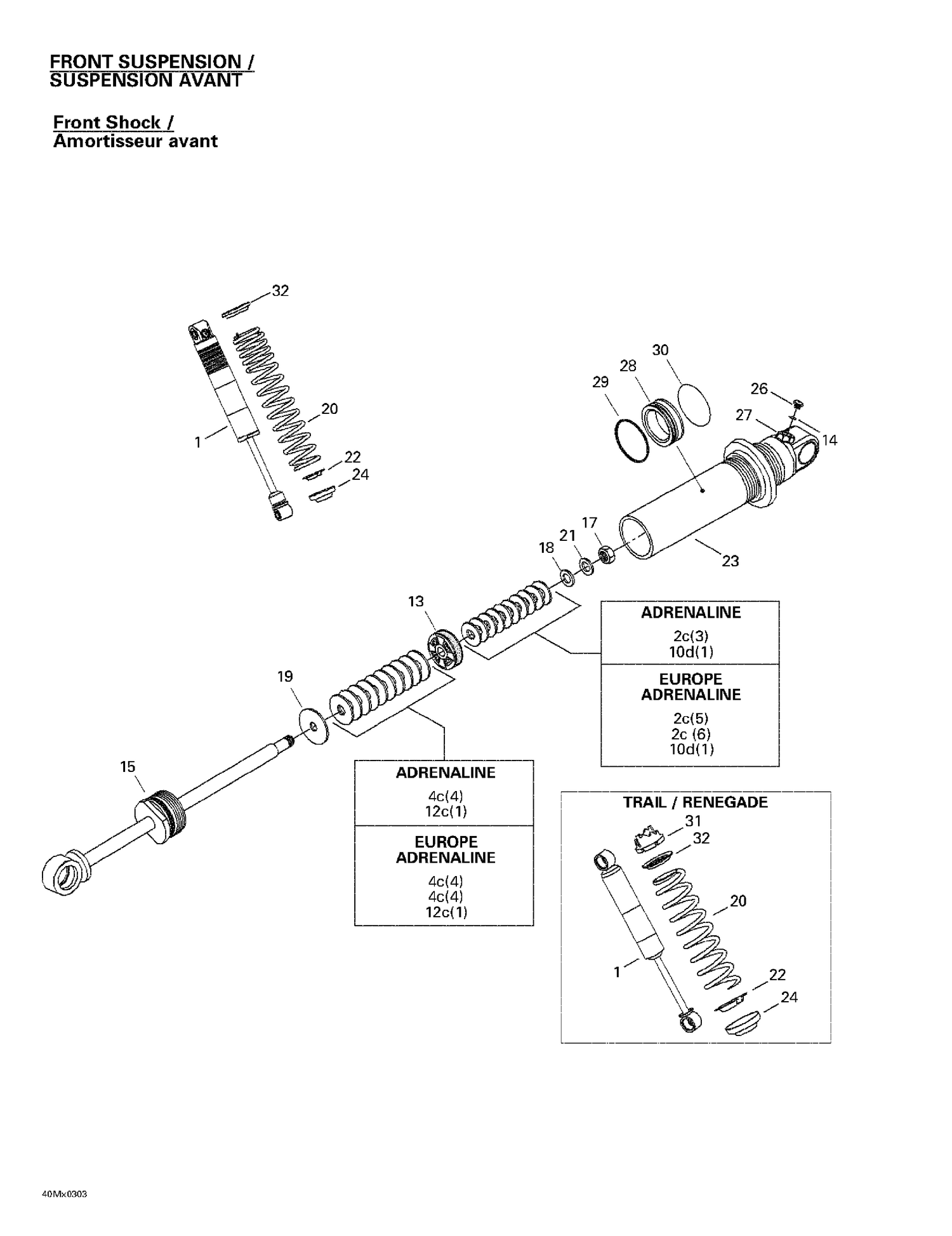

| Ref | Part Number | Description |
|---|
| 2A |
415039100 |
Leaf Valve Ø30 X 0.254 (C36) |
| 2B |
414888318 |
Leaf Valve Ø30 X 0.203 (C36) |
| 2C |
414888319 |
Leaf Valve Ø30 X 0.152 (C36) |
| 3A |
414888320 |
Leaf Valve Ø28 X 0.203 (C36) |
| 3B |
414888321 |
Leaf Valve Ø28 X 0.152 (C36) |
| 4A |
415039000 |
Leaf Valve Ø26 X 0.254 (C36) |
| 4B |
414888322 |
Leaf Valve Ø26 X 0.203 (C36) |
| 4C |
414888323 |
Leaf Valve Ø26 X 0.152 (C36) |
| 5A |
414888324 |
Leaf Valve Ø22 X 0.203 (C36) |
| 5B |
414888325 |
Leaf Valve Ø22 X 0.152 (C36) |
| 6A |
414888340 |
Leaf Valve Ø21 X 0.114 (C36) |
| 7A |
414888326 |
Leaf Valve Ø20 X 0.203 (C36) |
| 7B |
414888327 |
Leaf Valve Ø20 X 0.152 (C36) |
| 7C |
414888328 |
Leaf Valve Ø20 X 0.114 (C36) |
| 8A |
414888329 |
Leaf Valve Ø18 X 0.203 (C36) |
| 8B |
414888330 |
Leaf Valve Ø18 X 0.152 (C36) |
| 9A |
414888331 |
Leaf Valve Ø16 X 0.254 (C36) |
| 9B |
414888332 |
Leaf Valve Ø16 X 0.203 (C36) |
| 9C |
414888333 |
Leaf Valve Ø16 X 0.152 (C36) |
| 9D |
415038900 |
Leaf Valve Ø16 X 0.114 (C36) |
| 10A |
414888334 |
Leaf Valve Ø15 X 0.254 (C36) |
| 10B |
414888335 |
Leaf Valve Ø15 X 0.203 (C36) |
| 10C |
414888336 |
Leaf Valve Ø15 X 0.152 (C36) |
| 10D |
414888337 |
Leaf Valve Ø15 X 0.114 (C36) |
| 11A |
414888331 |
Leaf Valve Ø16 X 0.254 (C36) |
| 11B |
414888334 |
Leaf Valve Ø15 X 0.254 (C36) |
| 11C |
414888333 |
Leaf Valve Ø16 X 0.152 (C36) |
| 11D |
415038900 |
Leaf Valve Ø16 X 0.114 (C36) |
| 12A |
414888338 |
Leaf Valve Ø12 X 0.203 (C36) |
| 12B |
414888339 |
Leaf Valve Ø12 X 0.152 (C36) |
| 12C |
415038800 |
Leaf Valve Ø12 X 0.114 (C36) |
| 13 |
Not |
Available As Spare Part - Piston |
| 14 |
505070400 |
O-Ring |
| 15 |
Not |
Available As Spare Part - Piston rod sss'y |
| 16 |
Not |
Available As Spare Part - Leaf valve Ø17 x 0.203 |
| 17 |
Not |
Available As Spare Part - Nut |
| 18 |
Not |
Available As Spare Part - Valve stopper |
| 19 |
Not |
Available As Spare Part - Valve stopper |
| 21 |
Not |
Available As Spare Part - Washer |
| 23 |
Not |
Available As Spare Part - Body cylinder |
| 24 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 25 |
293600035 |
Shock Oil, 1 Liter |
| 26 |
505070399 |
Screw |
| 27 |
505070398 |
Air Valve |
| 505071128 |
Amortisseur |
Avant 505071128 |
| 505071128 |
FRONT |
SHOCK - Call your local BRP dealership 505071128 |
