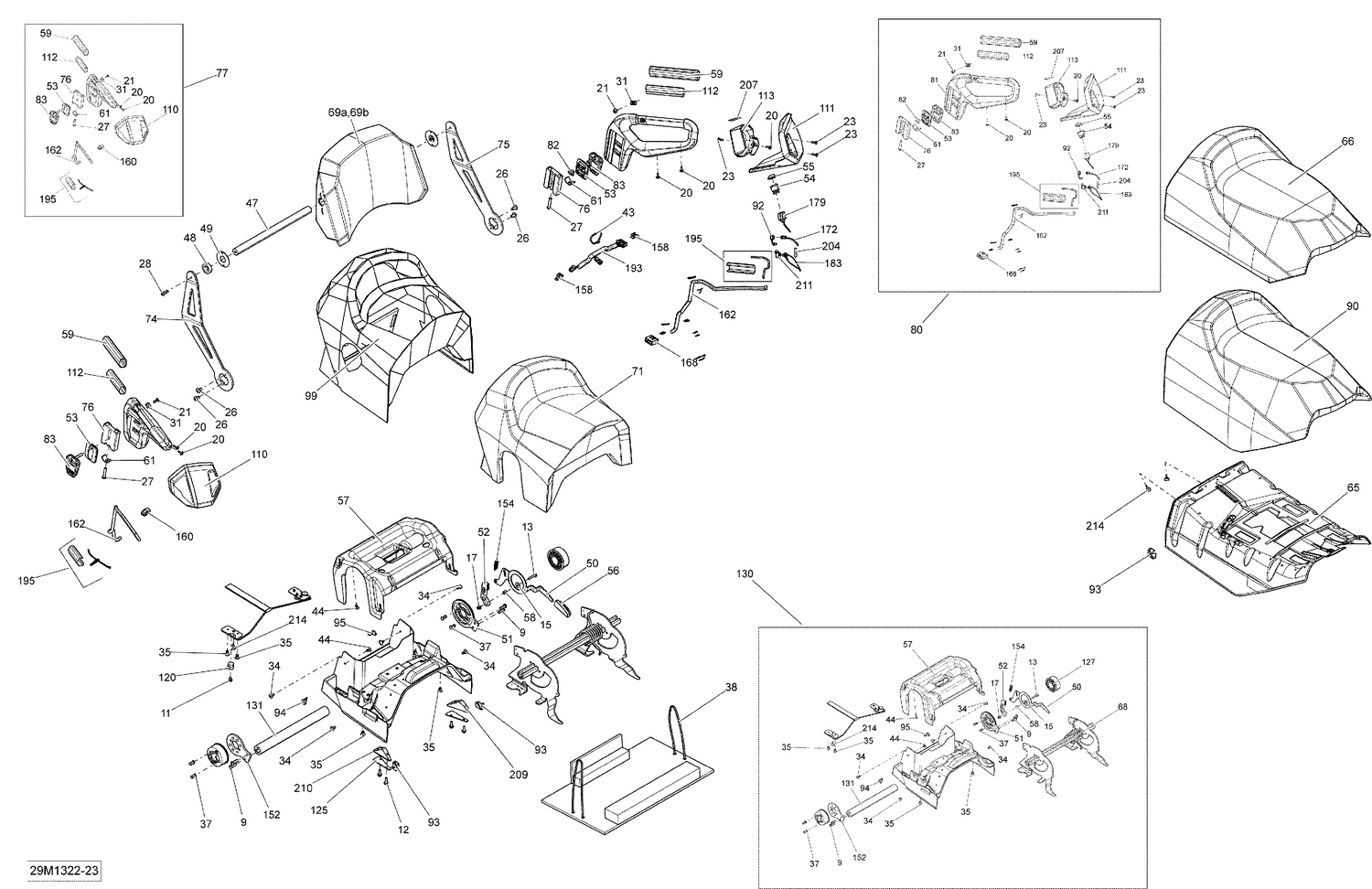

09- Seat LE
Parts (75)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 205982586 | SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 11 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 12 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 13 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 15 | 224061201 | Flat Washer |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 21 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 23 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 26 | 250000746 | Torx Truss Screw M8 X 16 This part replaces 250000198. |
| 27 | 250000220 | SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership |
| 28 | 250000746 | Torx Truss Screw M8 X 16 This part replaces 250000198. |
| 31 | 293100003 | Nut Welded, M6 |
| 34 | 293150100 | Pop Rivet 3/16" |
| 35 | 293150104 | Pop Rivet 3/16" |
| 37 | 293150129 | STEEL RIVET - Call your local BRP dealership |
| 38 | 293750008 | Tie Wrap 368 mm |
| 43 | 414115200 | Tie-Rap 180 mm |
| 44 | 414644300 | Black, Dart |
| 47 | 510004377 | Upper Backrest Axle |
| 48 | 510004378 | Rubber Shim |
| 49 | 510004379 | Washer |
| 50 | 510004385 | HANDLE, BLACK - Call your local BRP dealership |
| 51 | 510004391 | Sprocket |
| 52 | 510006338 | Adjustment Pivot This part replaces 510004392. |
| 53 | 510006602 | Passenger Handle Trim This part replaces 510004405. |
| 54 | 510004413 | Rocker Switch |
| 55 | 510004414 | Switch Protector |
| 56 | 510004419 | GRIP - Call your local BRP dealership |
| 57 | 510004423 | Foam Support |
| 58 | 510004425 | BUSHING - Call your local BRP dealership |
| 59 | 510004449 | Handle Grip |
| 61 | 510004565 | HANDLE CLAMP - Call your local BRP dealership |
| 65 | 510004775 | Front Seat Base |
| 66 | 510004777 | Front Seat Foam |
| 69a | 510004782 | Backrest Foam |
| 69b | 510005353 | BACKREST COVER - Call your local BRP dealership |
| 71 | 510004791 | Rear Seat Foam |
| 74 | 510005464 | RH Arm |
| 75 | 510005465 | LH Arm |
| 76 | 510004798 | HANDLE LINK - Call your local BRP dealership |
| 77 | 510005854 | RH HANDLE ASS'Y - Call your local BRP dealership This part replaces 510004800. |
| 80 | 510006709 | LH Handle Ass'y This part replaces 510004802. |
| 82 | 510004804 | Stopper Block |
| 83 | 510004806 | Lever Lock Ass'y |
| 90 | 510005685 | Front Seat Cover |
| 92 | 510004950 | Cap |
| 93 | 510004963 | SEAT CORNER, BLACK - Call your local BRP dealership |
| 94 | 510004964 | RH REAR CORNER SEAT - Call your local BRP dealership |
| 95 | 510004965 | LH REAR CORNER SEAT - Call your local BRP dealership |
| 99 | 510005694 | REAR SEAT COVER - Call your local BRP dealership |
| 110 | 510005009 | RH Air Deflector |
| 111 | 510005010 | LH Air Deflector |
| 112 | 510005814 | Reinforcement Handle This part replaces 510005011. |
| 113 | 510005036 | Switch Housing |
| 120 | 510005095 | SEAT STUD - Call your local BRP dealership |
| 125 | 510005216 | SPACER - Call your local BRP dealership |
| 130 | 510005688 | Seat Base Ass'y |
| 131 | 510005496 | LINK TUBE - Call your local BRP dealership |
| 152 | 510005568 | LINK PLATE - Call your local BRP dealership |
| 154 | 514053643 | Spring |
| 158 | 515175283 | Housing Support |
| 160 | 515175494 | Male Housing, 3 Circuits |
| 162 | 219704426 | Was 515175506 Tubing |
| 168 | 515176033 | Male Connector |
| 172 | 515177018 | WIRING HARNESS_HEATED SOLE - Call your local BRP dealership |
| 179 | 515176697 | Handle Harness |
| 183 | 515176698 | Visor Connector Harness |
| 193 | 515176766 | Seat Harness |
| 195 | 515176999 | Heated Element |
| 204 | 516003612 | VISOR AND LINER DECAL - Call your local BRP dealership |
| 207 | 516003816 | Heated Handle Decal |
| 209 | 518325709 | LH Seat Anchor |
| 210 | 518325710 | RH Seat Anchor |
| 211 | 572103300 | Cap |
