| Ref | Part Number | Description |
|---|
| 4 |
0585992 |
HORN This part replaces 0389263. |
| 5 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 18 |
0175946 |
HOUSING & COVER ASSY. This part replaces 0397221. |
| 21 |
0332200 |
CREW,. Ground |
| 23 |
0389266 |
SHAFT & THROTTLE PLATE ASSY. |
| 28 |
0323775 |
VIS, collier |
| 29 |
0323762 |
GROMMET |
| 40 |
0331412 |
LEVER, Fast idle |
| 42 |
0393129 |
CABLE |
| 52 |
0393132 |
EMERGECY IGNITION CUT-OFF SWITCH ASSY. |
| 56 |
0323763 |
GROMMET |
| 61 |
0328168 |
INSULATOR Horn to cover |
| 64 |
0323760 |
SCREW, Index plate |
| 74 |
0331048 |
LATCH |
| 79 |
0328170 |
GUARD |
| 0397184 |
0175945 |

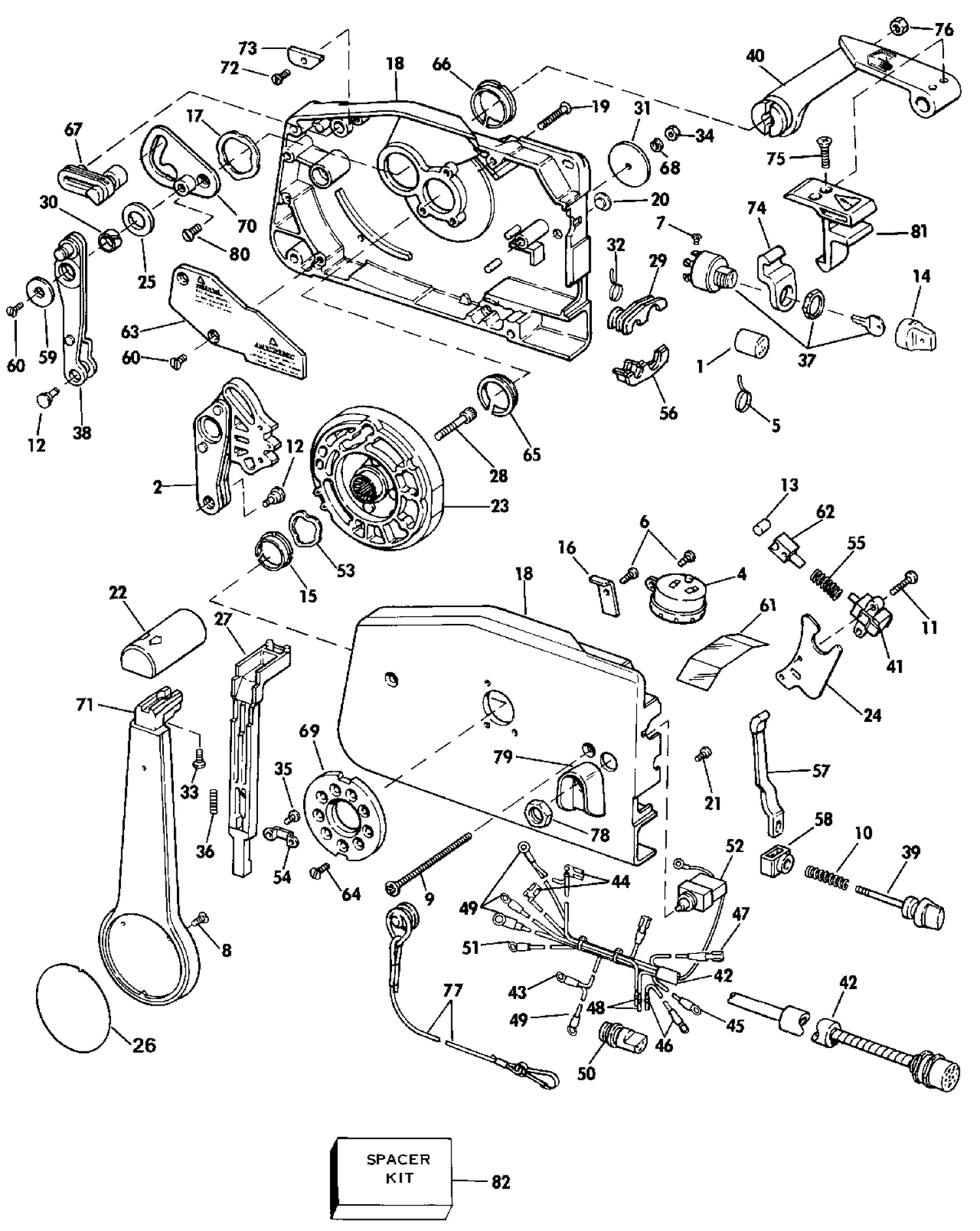

REMOTE CONTROL ASSY. This part replaces 0397184. |
