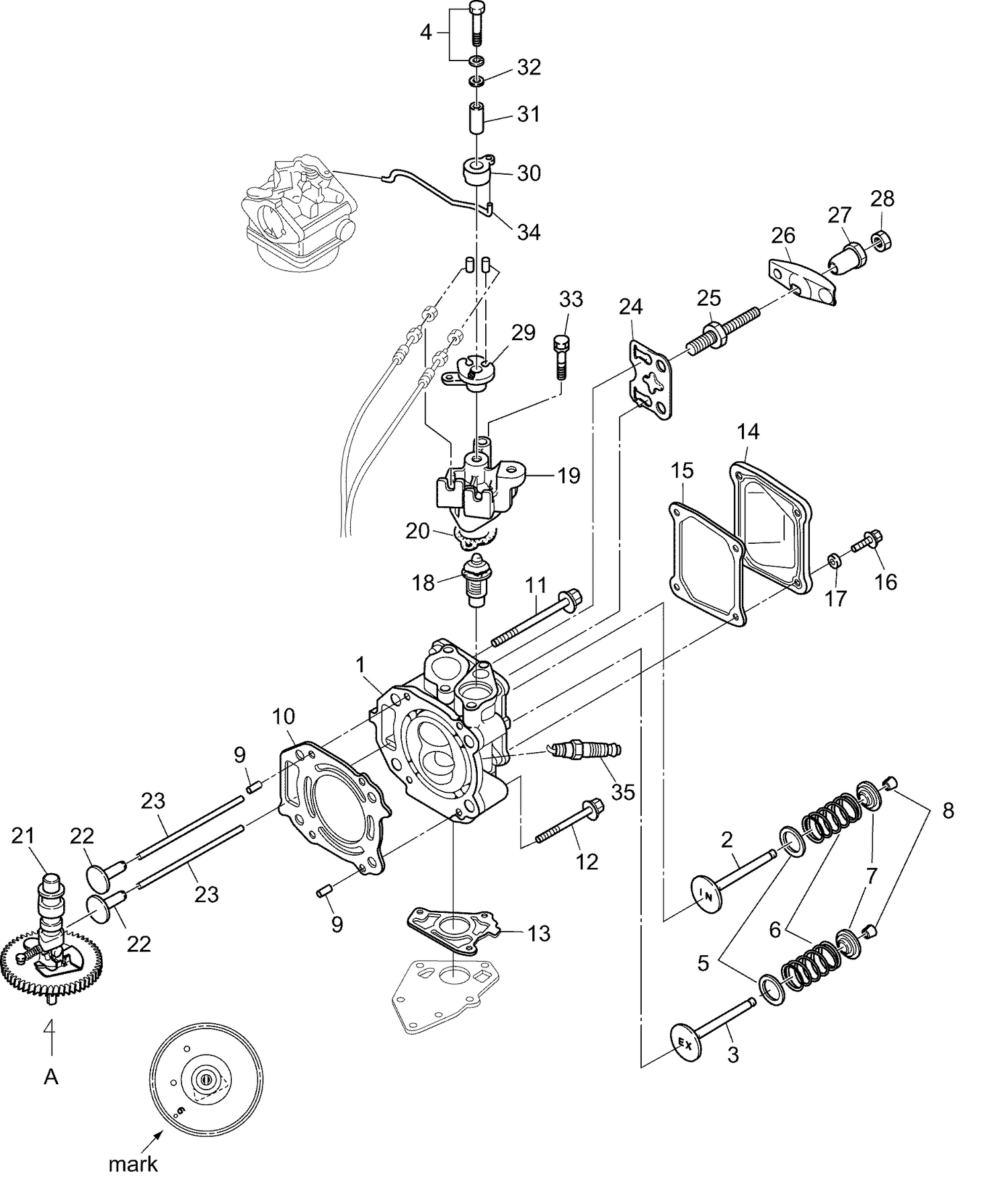

15-7_CYLINDER HEAD ASSEMBLY
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5041247 | Cylinder Head Assembly |
| 2 | 5040863 | Intake Valve |
| 3 | 5040864 | Exhaust Valve |
| 4 | 5041538 | Bolt |
| 7 | 5040985 | Retainer |
| 10 | 5040954 | Cyl Head Gasket |
| 11 | 5040955 | Cylinder Head Bolt |
| 12 | 5040956 | Cylinder Head Bolt |
| 13 | 5040963 | Exhaust Cover Gasket |
| 14 | 5041053 | Cylinder Head Cover |
| 15 | 5040957 | Cyl Hd Cover Gskt |
| 16 | 5041540 | Bolt |
| 19 | 5040901 | Thermostat Cap |
| 20 | 5040066 | THERMOSTAT CAP GASKET |
| 21 | 5041246 | Camshaft Ass’y |
| 22 | 5040987 | Lifter |
| 23 | 5040988 | Push Rod |
| 24 | 5040989 | Plate Push Rod |
| 25 | 5040990 | Pivot Bolt |
| 26 | 5040865 | Rocker Arm |
| 27 | 5040991 | Pivot Rocker Arm |
| 28 | 5041014 | Adjusting Nut |
| 29 | 5040872 | Throttle Drum |
| 30 | 5040873 | Throttle Opener |
| 31 | 5041030 | Collar Drum |
| 33 | 5041539 | Bolt |
| 34 | 5041029 | Throttle Rod |
