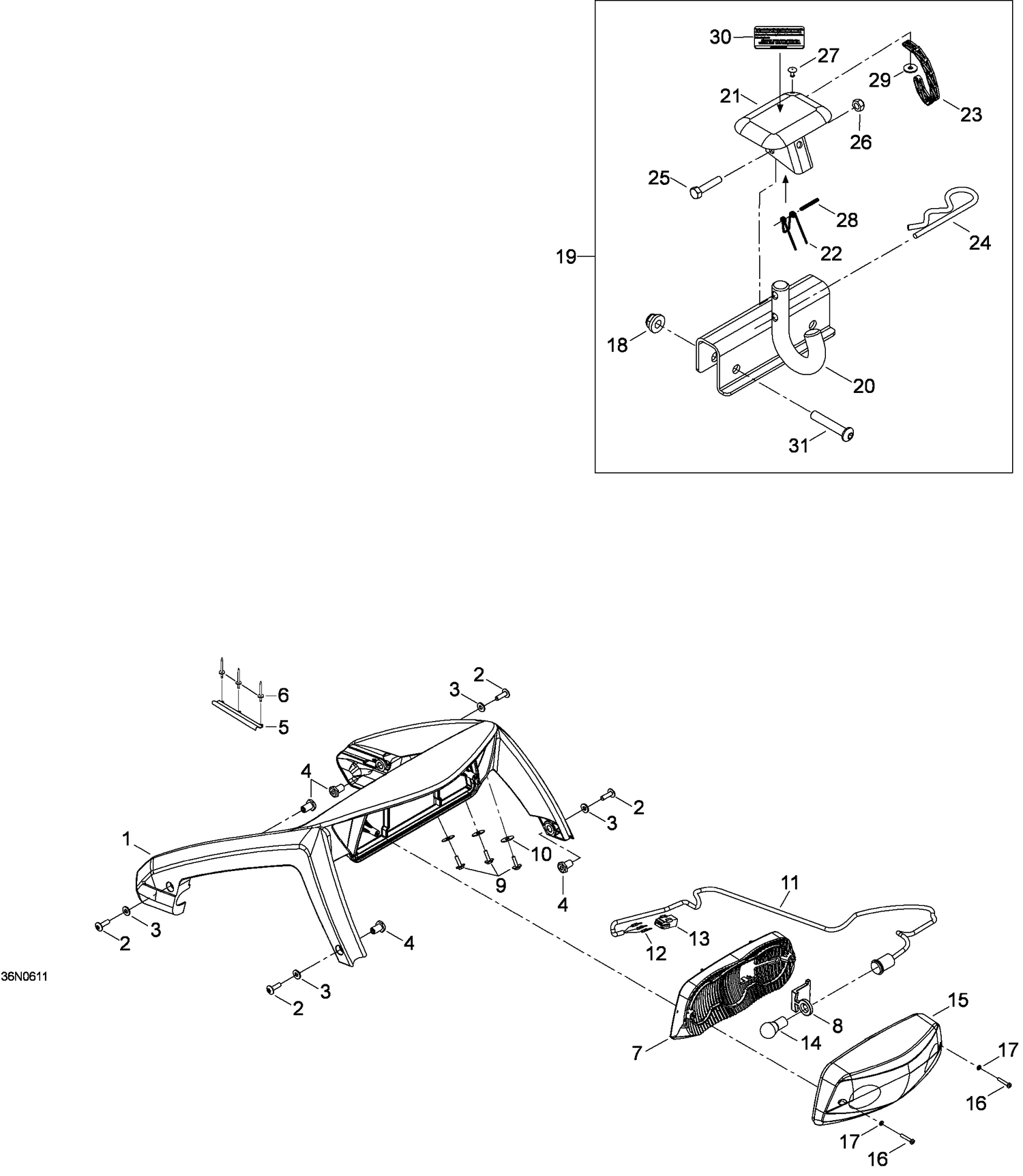

| Ref | Part Number | Description |
|---|
| 1 |
511000425 |
Luggage rack |
| 2 |
250000168 |
SOCKET SCREW M6 X 16 - Call your local BRP dealership |
| 3 |
250200039 |
Flat Washer |
| 4 |
511000398 |
INSERT - Call your local BRP dealership |
| 5 |
605453559 |
Johdon suoja |
| 6 |
36108 |
Rivet steel 4.8x8 ZN bright |
| 7 |
510004442 |
REFLECTOR - Call your local BRP dealership |
| 8 |
511000431 |
BULB SUPPORT - Call your local BRP dealership |
| 9 |
40847 |
SCREW 4 - Call your local BRP dealership |
| 10 |
20117 |
Washer |
| 11 |
515175852 |
Lampa hållare och kabel set |
| 12 |
605642628 |
CONNECTOR - Call your local BRP dealership |
| 13 |
42271 |
Male connector housing (6 circuits) |
| 14 |
520000758 |
Bulb This part replaces 410504000. |
| 15 |
515175995 |
Takalampun lasi |
| 16 |
209632580 |
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 17 |
414516400 |
Washer - Call your local BRP dealership |
| 18 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 19 |
Not |
Available As Spare Part - Hitch ass'y |
| 21 |
517152700 |
Hitch protector |
| 22 |
517152800 |
SPRING - Call your local BRP dealership |
| 23 |
Not |
Available As Spare Part - Chain |
| 24 |
114045200 |
Hair Pin |
| 25 |
207063044 |
Hex. Screw M6 X 30 |
| 26 |
232561414 |
Elastic Stop Nut M6 |
| 27 |
390409400 |
RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership |
| 28 |
732804000 |
SPRING PIN M3 X 24 - Call your local BRP dealership |
| 29 |
391303100 |
Aluslevy |
| 30 |
516003037 |
WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership This part replaces 516002685. |
