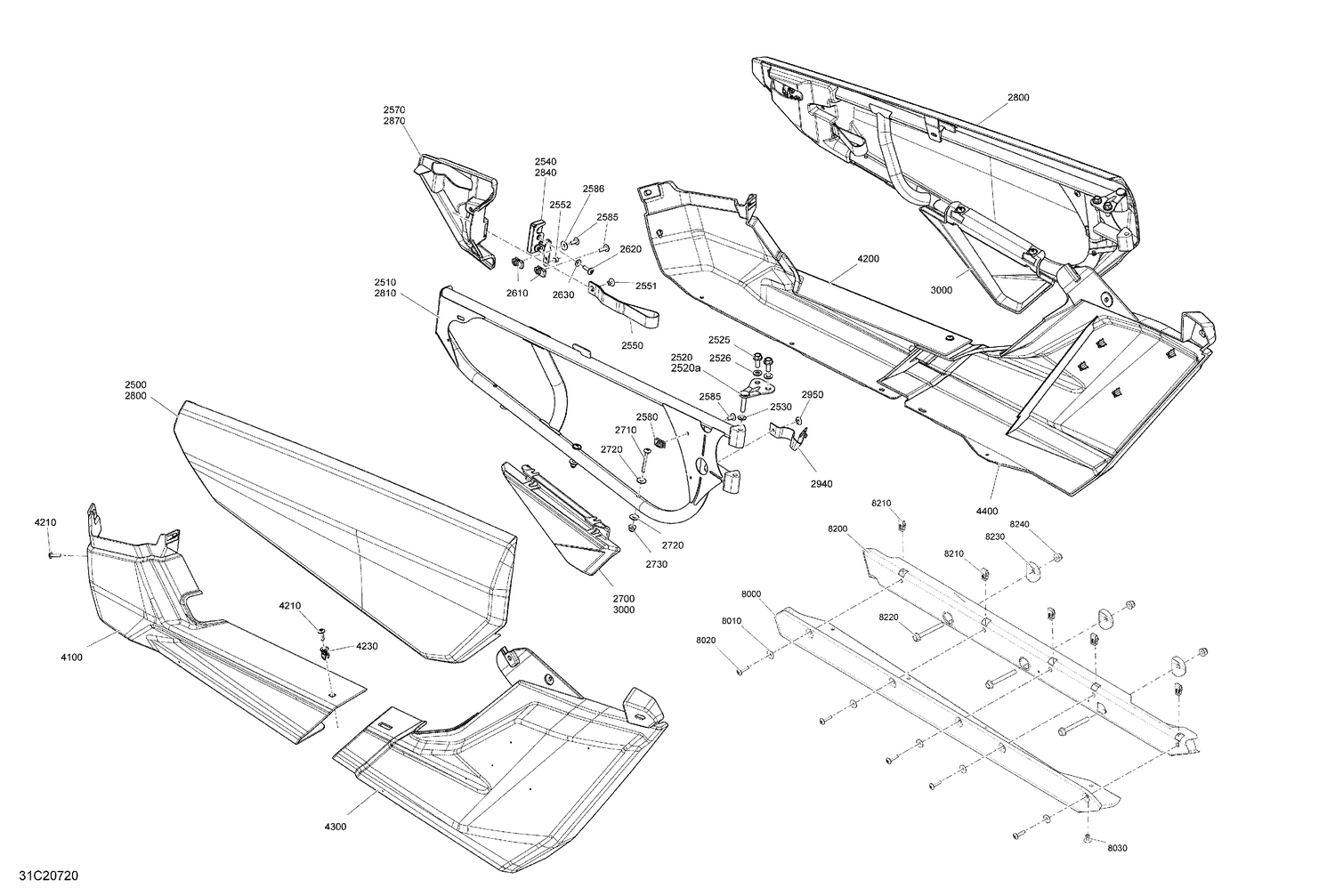

09- Body - Door Section - XRC - Orange

09- Body - Door Section - XRC - Orange

Parts (39)

RefPart NumberDescription
2500 705014333 Carbon Black, LH Front Door Panel This part replaces 705012472.
2510 705016016 Orange Crush, LH Front Door This part replaces 705014089.
2525 207582054 Hex Screw Washer Head M8 X 20
2526 234081430 Flat Washer M8
2530 234081100 Flat Washer 8 mm, Nylon
2540 705013095 LH Latch
2550 293850135 Belt
2551 293150103 Pop Rivet 3/16"
2552 293900104 Bushing
2570 705013535 LH Latch Cover
2580 250100198 Panel Nut M6 X 1.0 This part replaces 250000957.
2585 250000721 Torx Truss Screw M6 X 16
2586 234062670 Stainless Steel Flat Washer
2590 293150103 Pop Rivet 3/16"
2610 250100198 Panel Nut M6 X 1.0 This part replaces 250000957.
2620 250000722 Torx Screw M6 X 20
2630 224061121 Flat Washer
2800 705014339 Carbon Black, RH Front Door Panel This part replaces 705012473.
2840 705013096 RH Latch
2870 705013536 RH Latch Cover
2940 293850129 Door Belt
2950 293150103 Pop Rivet 3/16"
3000 705010733 RH Lower Door Panel
4100 705014105 Orange Crush, LH Front Lower Body Panel
4200 705014106 Orange Crush, LH Lower Body Panel
4210 250000722 Torx Screw M6 X 20
4230 705016606 Insert This part replaces 705010872.
4300 705014107 Orange Crush, LH Rear Lower Body Panel
4400 705014108 Orange Crush, RH Rear Lower Body Panel
8000 705014109 Orange Crush, LH Body Panel Guard
8010 250200164 Flat washer M6
8020 250000807 Torx Truss Screw M6 X 25
8030 293150108 Pop Rivet 3/16” This part replaces 293150108.
8100 705014110 Orange Crush, RH Body Panel Guard
8200 705012774 LH Lateral Structure
8210 250100198 Panel Nut M6 X 1.0 This part replaces 250000957.
8220 207687044 Hex. Flange Screw M8 X 70
8230 705205462 Saddle Washer
8240 233281464 Elastic Flange Nut M8
