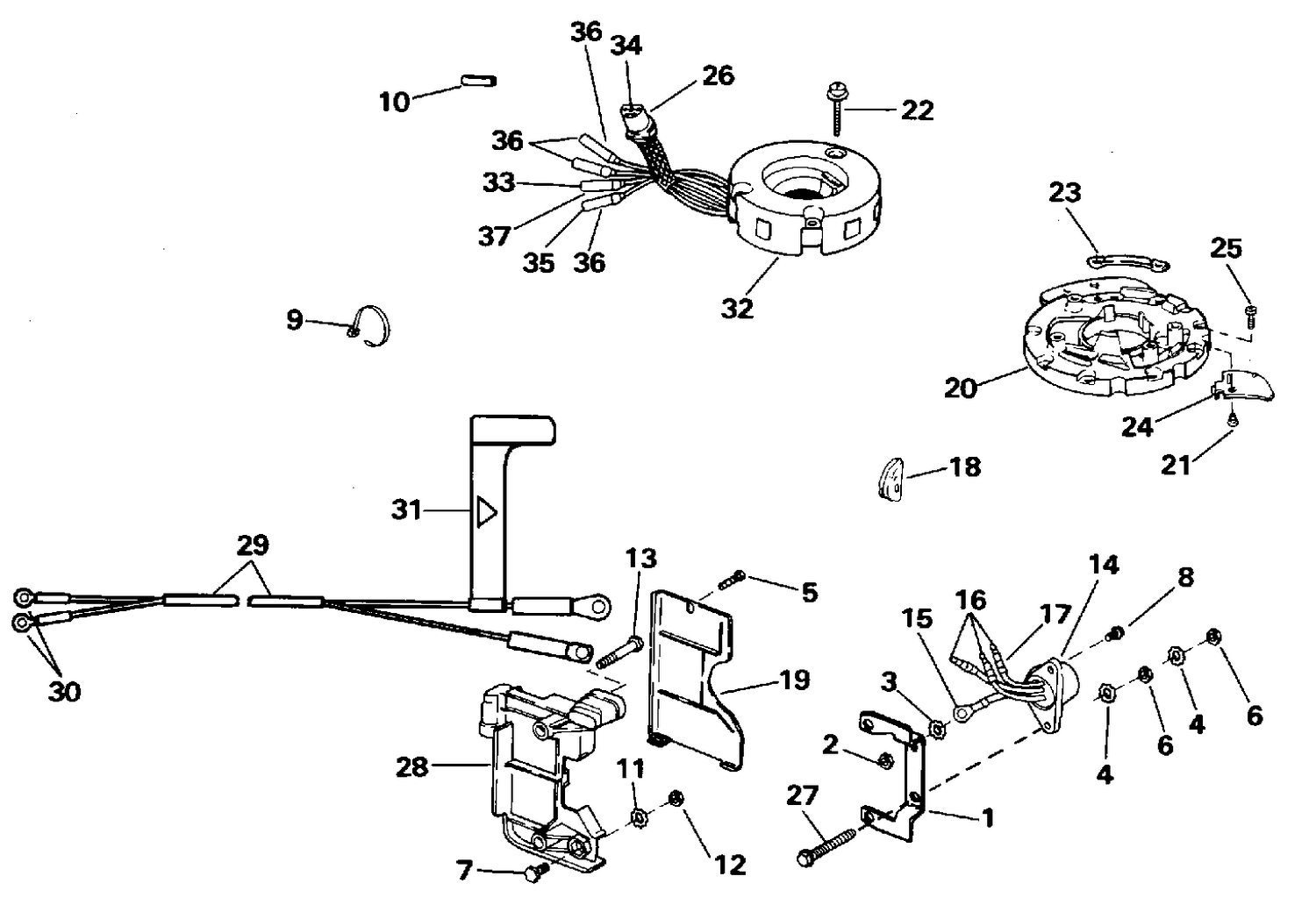

BATTERY CHARGE KIT - 9.9, 15 (2-STROKE)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 0312241 | SCREW, Trim/Tilt relay bracket |
| 9 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10 | 0328074 | CACHE, cosse prise |
| 19 | 0338258 | COVER, Bracket |
| 21 | 0303212 | VIS, collier & capot |
| 22 | 0337522 | VIS, ensemble bobine |
| 25 | 0511460 | VIS, dispositif de retenue |
| 27 | 0312241 | SCREW, Trim/Tilt relay bracket |
| 28 | 0435513 | BRACKET, Electrical |
| 0175899 | 0176942 | BATTERY CHARGE KIT This part replaces 0175899. |
