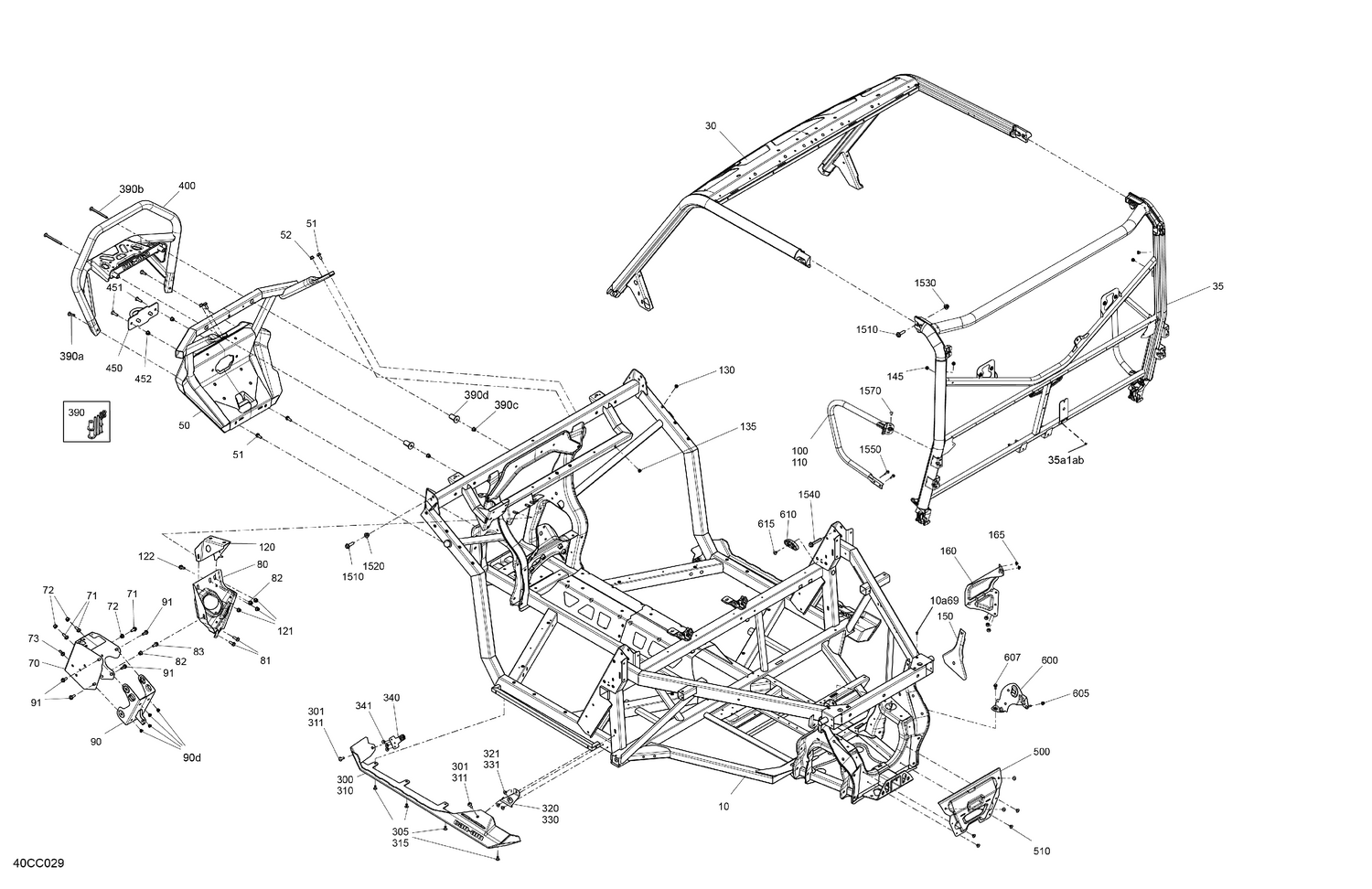

| Ref | Part Number | Description |
|---|
| 10a69 |
390402200 |
Pop Rivet 3/16" |
| 30 |
715008407 |
Front Cage Ass'y |
| 35a1ab |
390402200 |
Pop Rivet 3/16" |
| 50 |
705207588 |
Deep Black, Front Bumper |
| 51 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 70 |
705209388 |
Module Support |
| 71 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 72 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 73 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 80 |
705208741 |
Power Steering Support |
| 81 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 82 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 83 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 90d |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 91 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 100 |
705210922 |
Liquid Titan, LH Guard |
| 110 |
705210932 |
Liquid Titan, RH Guard |
| 120 |
705208742 |
Support |
| 121 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 122 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 130 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 135 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 145 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 150 |
705014849 |
Heat Shield |
| 160 |
707002709 |
Heat Shield |
| 165 |
293150103 |
Pop Rivet 3/16" |
| 300 |
705208686 |
Deep Black, LH Guard Panel |
| 301 |
250000874 |
Torx Truss M8 X 25 |
| 305 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 310 |
705208687 |
Deep Black, RH Guard Panel |
| 311 |
250000874 |
Torx Truss M8 X 25 |
| 315 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 320 |
705206342 |
LH Rock Slider Support |
| 321 |
293150104 |
Pop Rivet 3/16" |
| 330 |
705206343 |
RH Rock Slider Support |
| 331 |
293150104 |
Pop Rivet 3/16" |
| 340 |
705208661 |
Front Guard Support |
| 341 |
293150104 |
Pop Rivet 3/16" |
| 390a |
250000886 |
Torx Screw M8 X 30 |
| 390b |
250001106 |
Torx Truss M/S M8 x X 100 |
| 390c |
233281414 |
Hex. Flange Elastic Nut M8 |
| 390d |
705207754 |
Spacer |
| 400 |
705210151 |
Magma Red, Front Bumper |
| 450 |
705211623 |
Can-Am Red, Front Tow Hook This part replaces 705210289. |
| 451 |
250000886 |
Torx Screw M8 X 30 |
| 452 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 500 |
705207753 |
Rear Chassis Reinforcement |
| 510 |
293150104 |
Pop Rivet 3/16" |
| 600 |
710007522 |
Voltage Regulator Support |
| 605 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 607 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 610 |
705208203 |
Spacer |
| 615 |
293150104 |
Pop Rivet 3/16" |
| 1510 |
250000855 |
Hex. Flange Screw M10 X 35 |
| 1520 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 1530 |
233201466 |
Flange Elastic Nut M10 |
| 1540 |
207606046 |
Hex. Flange Screw M10 X 6 |
| 1550 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
