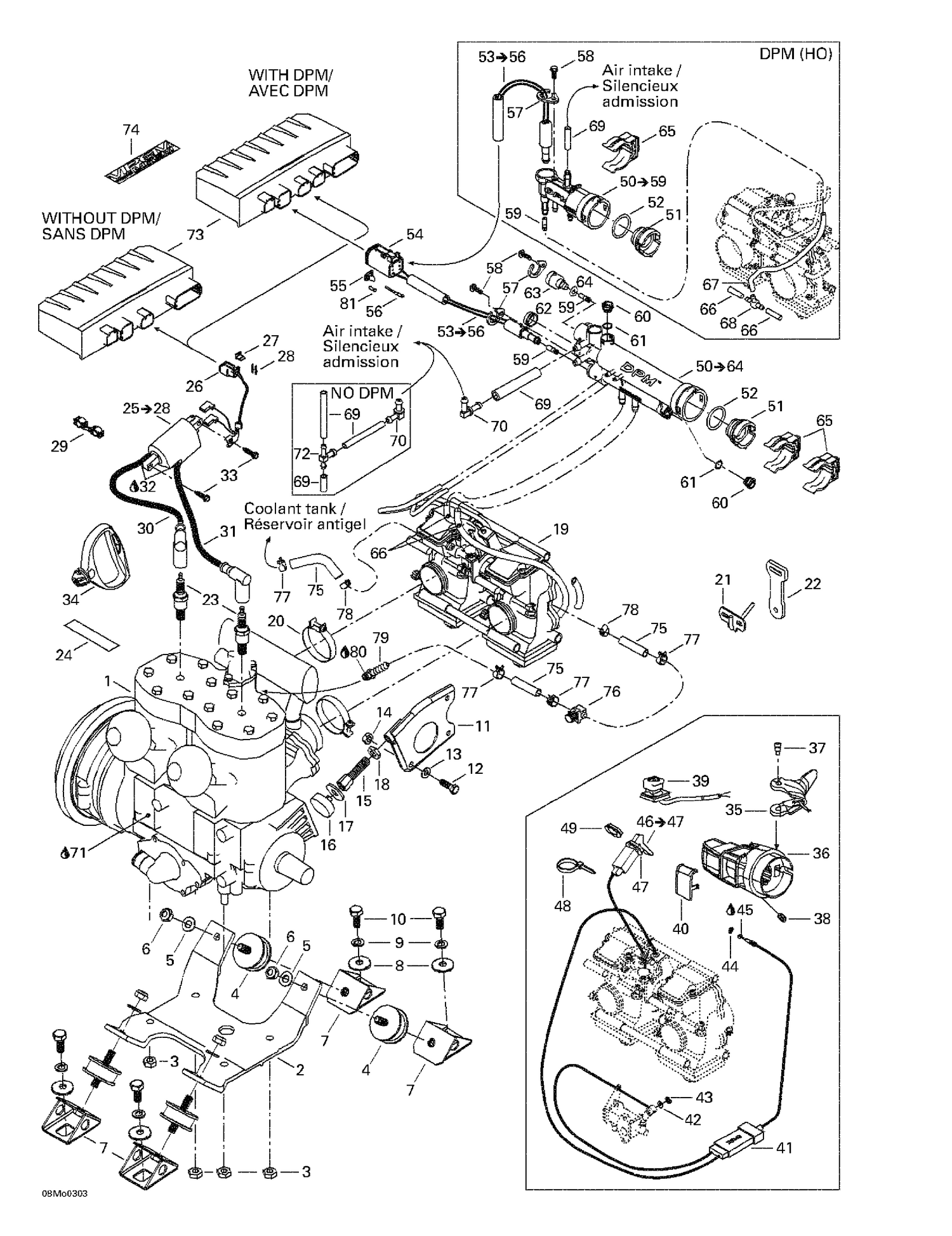

| Ref | Part Number | Description |
|---|
| 3 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 4 |
570128700 |
RUBBER MOUNT - Call your local BRP dealership |
| 5 |
234001410 |
Flat Washer 10 mm |
| 6 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 7 |
512050900 |
Engine Support |
| 8 |
512056700 |
Lock Washer |
| 9 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 10 |
207102544 |
Hex. Screw M10 X 25 |
| 11 |
512058500 |
Support Plate |
| 12 |
207182044 |
Hex. Screw M8 X 20 |
| 13 |
234081410 |
Flat Washer 8 mm |
| 14 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 15 |
512058800 |
STOPPER SCREW - Call your local BRP dealership |
| 16 |
512059056 |
Stopper |
| 17 |
512059057 |
WASHER - Call your local BRP dealership |
| 18 |
232026414 |
RH Hex. Nut This part replaces 732610019. |
| 20 |
512059835 |
Gemi Clamp This part replaces 512059305. |
| 26 |
409207300 |
Female Connector, 2 Circuits |
| 27 |
409207100 |
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
| 28 |
278000632 |
Female Terminal |
| 29 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 30 |
512059696 |
Cable Ass’y, 375 mm This part replaces 512059485. |
| 31 |
512059486 |
CABLE ASSY, 455 MM - Call your local BRP dealership |
| 32 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 34 |
572084400 |
Starter Grip |
| 36 |
512059763 |
THROTTLE HOUSING - Call your local BRP dealership |
| 37 |
732601143 |
Flange Screw |
| 38 |
414440800 |
Socket Set Screw M8 X 10 |
| 39 |
515177362 |
Emergency Stop Switch This part replaces 512059751. |
| 40 |
572100901 |
Switch Cover |
| 41 |
512059679 |
THROTTLE CABLE - Call your local BRP dealership |
| 42 |
234081100 |
Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 43 |
414753500 |
Circlip |
| 44 |
414274500 |
Circlip |
| 45 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 47 |
394103300 |
Lock Washer, Interior Teeth |
| 48 |
293750009 |
Tie-Rap 173 mm |
| 49 |
512059094 |
PLASTIC NUT - Call your local BRP dealership |
| 54 |
515175673 |
Male Housing, 6 Circuits |
| 55 |
515175678 |
Male Wedge, 6 Circuits |
| 56 |
278000632 |
Female Terminal |
| 70 |
414580600 |
Elbow Male Connector |
| 71 |
779123 |
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200. |
| 74 |
516000245 |
Electrical Box Decal |
| 75 |
509000093 |
Hose 8 mm |
| 76 |
512059324 |
Valve 5/16” |
| 77 |
414655700 |
Spring Clamp |
| 78 |
293650170 |
Tridon Gear Clamp This part replaces 293650128. |
| 79 |
293710082 |
STRAIGHT FITTING - Call your local BRP dealership |
| 80 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 779120 |
2T |
Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
