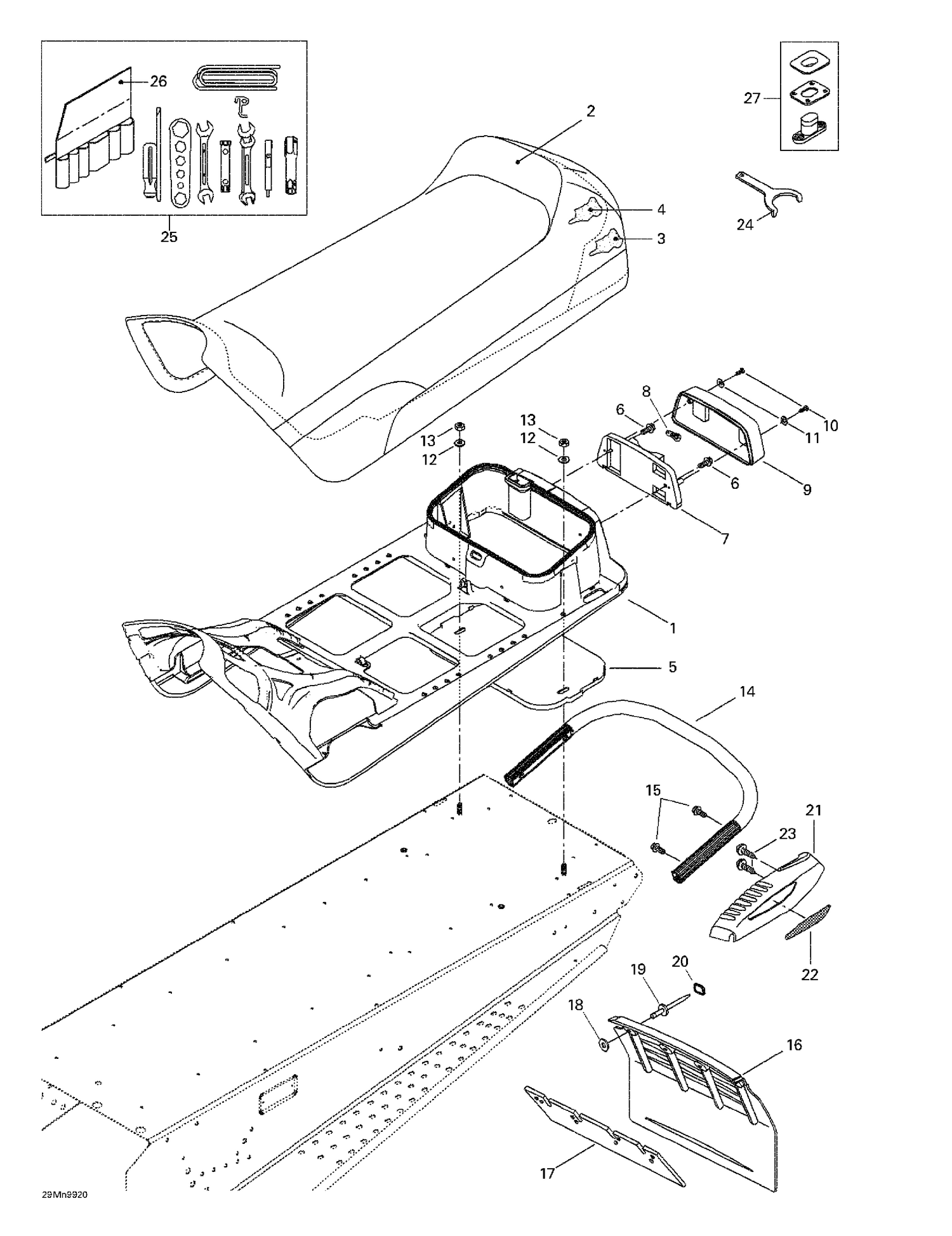

09- Seat And Accessories
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572107600 | Seat Base |
| 2 | 510003636 | Seat Cover |
| 3 | 510003608 | Seat Foam |
| 4 | 510003500 | Seat Foam |
| 5 | 572107601 | UNDER CHEST - Call your local BRP dealership |
| 6 | 732603006 | Hex. Screw #10 X 1" |
| 7 | 510004061 | LIGHT HOUSING - Call your local BRP dealership This part replaces 414513600. |
| 8 | 520000758 | Bulb This part replaces 410504000. |
| 9 | 414513700 | Lens |
| 10 | 209632540 | Phillips Tapping Screw M3.9 X 25 |
| 11 | 414516400 | Washer - Call your local BRP dealership |
| 12 | 234082410 | Flat Washer 8 mm This part replaces 224080251. |
| 13 | 232581414 | Hex. Elastic Stop Nut M8 |
| 14 | 518318200 | REAR BUMPER - Call your local BRP dealership |
| 15 | 207682044 | Hex. Flange Screw M8 X 20 |
| 16 | 572092100 | SNOW GUARD - Call your local BRP dealership |
| 17 | 572108200 | REINFORCEMENT - Call your local BRP dealership |
| 18 | 517225900 | Flat Washer |
| 19 | 293150100 | Pop Rivet 3/16" This part replaces 390908000. |
| 20 | 415073300 | Cap |
| 21 | 572097300 | RH Moulding |
| 22 | 516000237 | RH Reflector, Red |
| 23 | 365901100 | HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 24 | 529000035 | Adjustment Wrench This part replaces 529032900. |
| 26 | 520000047 | Tool Bag |
| 516000238 | LH | Reflector, Red 516000238 |
| 516000238 | Réflecteur | GA, Rouge 516000238 |
| 572097400 | Enjoliveur | GA 572097400 |
| 572097400 | LH | Moulding 572097400 |
