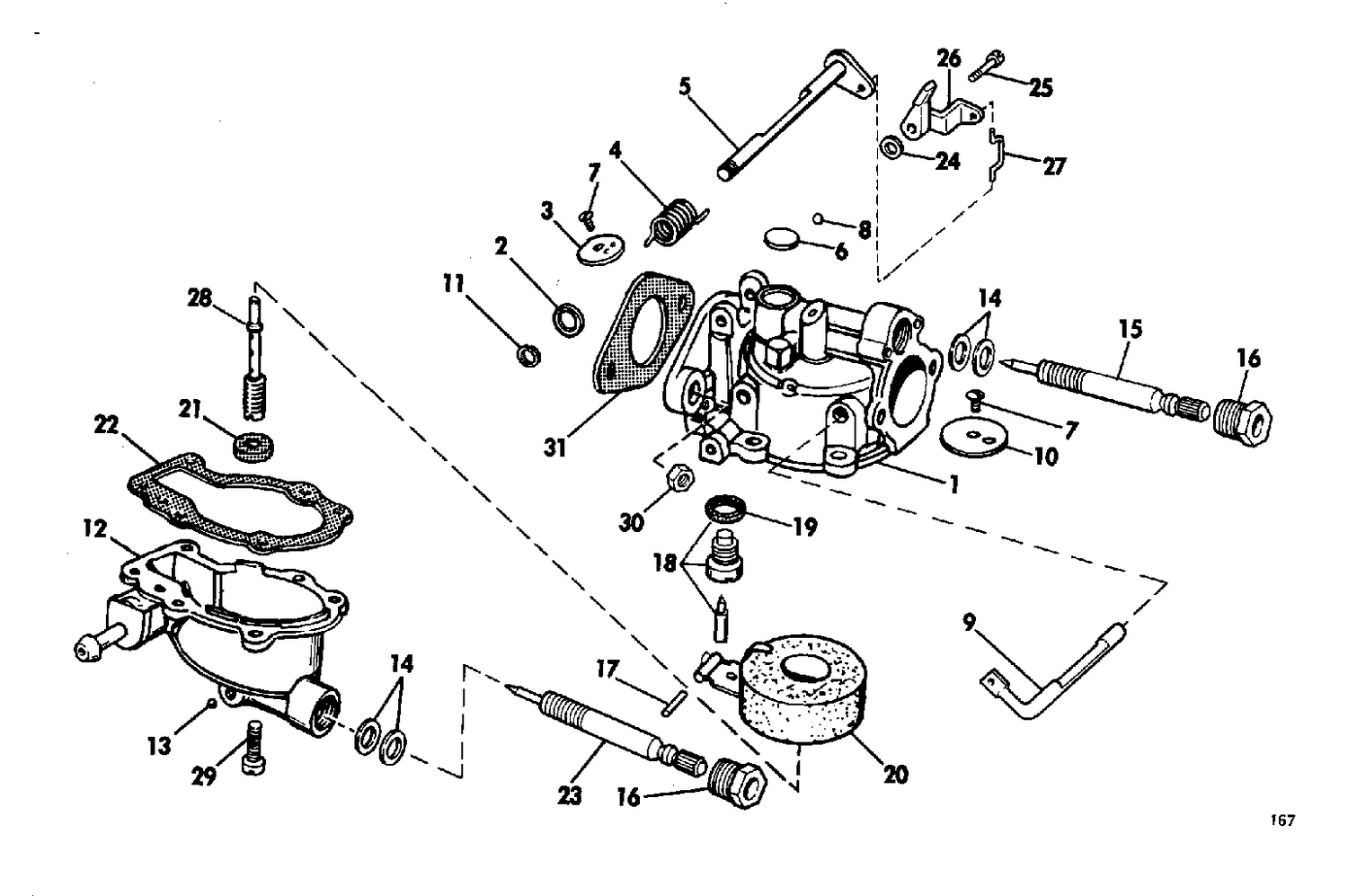

CARBURETOR GROUP
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0383007 | CARBURETOR BODY |
| 11 | 0203949 | E RING LINK This part replaces 0202755. |
| 12 | 0383008 | FLOAT CHAMBER ASSY |
| 15 | 0312823 | NEEDLE VALVE SLOW SPEED |
| 17 | 0300096 | HINGE PIN |
| 21 | 0302984 | GASKET |
| 23 | 0312824 | NEEDLE VALVE HIGH SPEED |
| 26 | 0312832 | CAM FOLLOWER |
| 27 | 0330192 | LINK, Cam follower This part replaces 0312830. |
| 28 | 0312971 | NOZZLE HIGH SPEED |
| 29 | 0307045 | NOZZLE, High speed |
| 30 | 0306397 | NUT |
| 0381804 | 0381804 | CARBURETOR ASSEMBLY |
