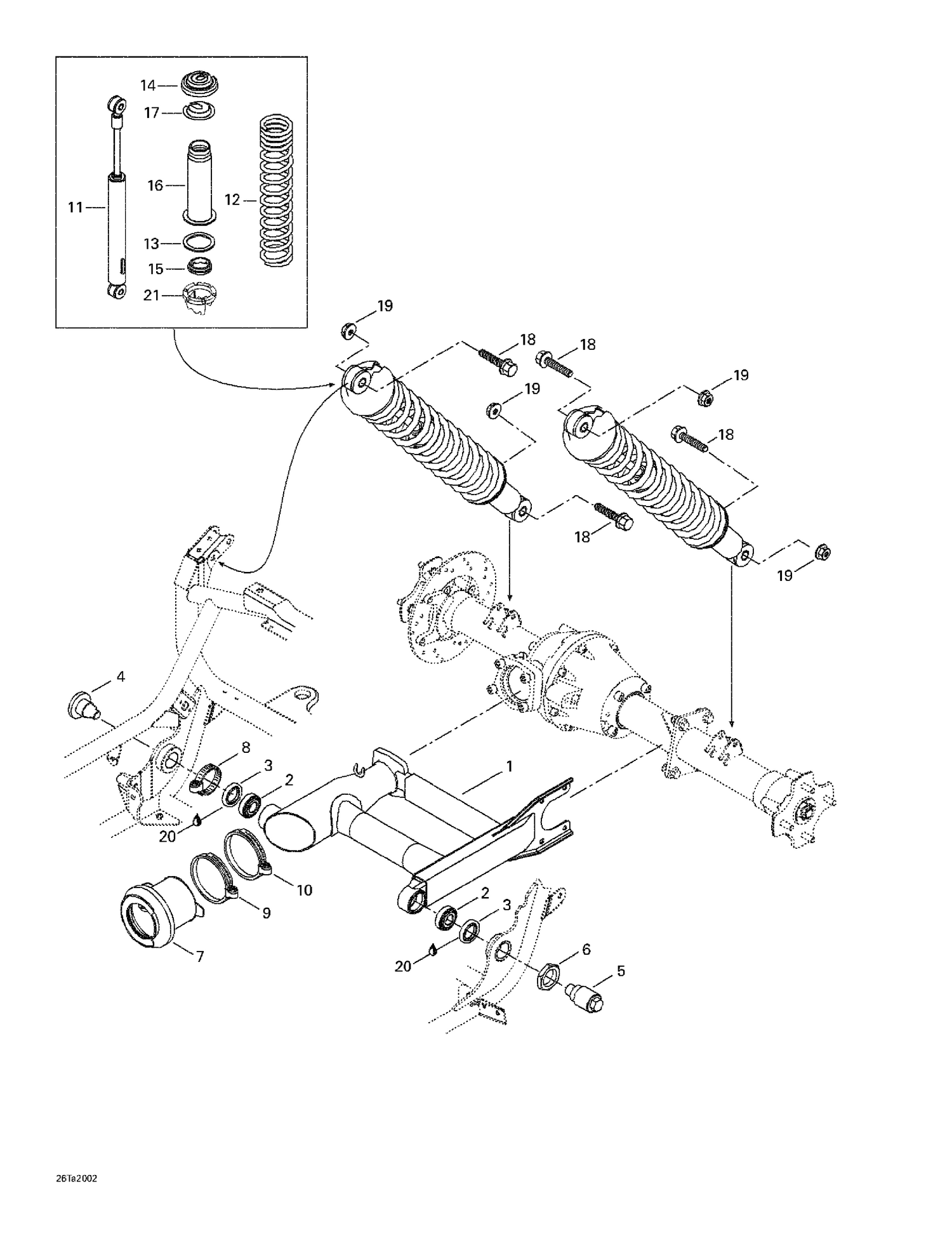

08- Rear Suspension
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 706000009 | CONE BEARING - Call your local BRP dealership |
| 3 | 706000010 | OIL SEAL - Call your local BRP dealership |
| 4 | 706000004 | Pivot Bolt R.H |
| 5 | 706000005 | Pivot Bolt L.H |
| 6 | 706000006 | HEX. JAM NUT - Call your local BRP dealership |
| 7 | 706000011 | Swing Arm Bellows |
| 8 | 293650090 | Norma Gear Clamp |
| 9 | 293650096 | Norma Clamp |
| 10 | 514052924 | Norma Clamp |
| 11 | 706000067 | Rear Shock |
| 12 | 706000068 | REAR SPRING - Call your local BRP dealership |
| 13 | 706000533 | SPRING SEAT - Call your local BRP dealership This part replaces 706000028. |
| 14 | 706200881 | Spring Stopper This part replaces 503140600. |
| 15 | 706000007 | Spring seat |
| 16 | 706000032 | Protector |
| 17 | 706200785 | Cap This part replaces 503141600. |
| 18 | 207605544 | Hex. Flange Screw M10 X 55 |
| 19 | 233201414 | Hex. Flange Elastic Nut M10 |
| 20 | 293550010 | Synthetic Grease, 400 G |
