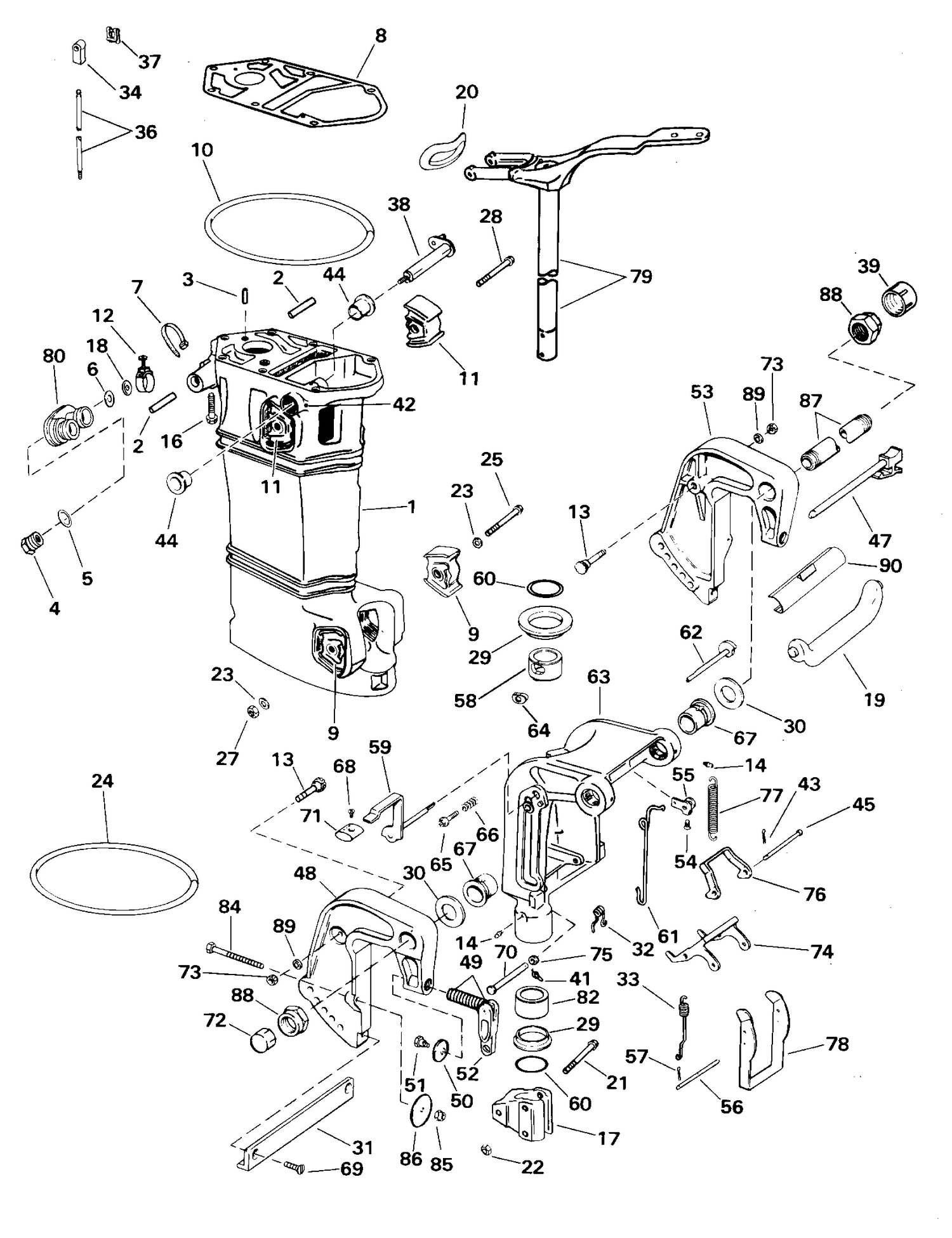

| Ref | Part Number | Description |
|---|
| 1 |
0436133 |
EXHAUST HOUSING |
| 4 |
0436857 |
BOUCHON & GICLEUR, indicateur d'éjection |
| 5 |
0301967 |
O RING |
| 7 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 8 |
0339331 |
GASKET, Powerhead base |
| 9 |
0436039 |
MOUNT, Lower |
| 10 |
0339390 |
EXHAUST HOUSING SEAL, Upper |
| 11 |
0438299 |
MOUNT, Upper |
| 12 |
0336136 |
CLAMP |
| 13 |
0342507 |
PIN, Tilt lock to stern brackets |
| 17 |
0339657 |
BRACKET, Lower mount |
| 18 |
0335530 |
REED VALVE |
| 19 |
0339992 |
CARRYING HANDLE |
| 20 |
0340819 |
SEAL, Steering arm |
| 21 |
0339388 |
SCREW, Bracket to pivot shaft, M8 |
| 22 |
0338935 |
LOCKNUT, M8 |
| 23 |
0341053 |
WASHER, Lower mount screw, M8 |
| 24 |
0340800 |
EXHAUST HOUSING SEAL, Lower |
| 25 |
0339741 |
SCREW, Lower mount, M8 |
| 27 |
0338935 |
LOCKNUT, M8 |
| 28 |
0343168 |
SCREW, Upper mnt. to steering arm, M10 |
| 30 |
0319699 |
THRUST WASHER, Stern bracket |
| 31 |
0357240 |
TIE BAR, Stern bracket This part replaces 0319709. |
| 32 |
0322946 |
SPRING, Shallow water drive |
| 33 |
0319697 |
SPRING REVERSE LOCK |
| 37 |
0338630 |
BRIDE, à ressort, tige de commande de sens de marche vers levier coudé |
| 38 |
0439560 |
LEVER & SHAFT ASSY. |
| 44 |
0340923 |
BUSHING, Shift shaft |
| 45 |
0326943 |
PIN, Link to lock lever |
| 47 |
0436387 |
TILT PIN |
| 48 |
0342723 |
STERN BRACKET, Stbd. |
| 49 |
0433675 |
CLAMP SCR. & HAND. ASSY. This part replaces 0433674. |
| 53 |
0342722 |
STERN BRACKET, Port |
| 54 |
0319108 |
SCREW BELCRANK |
| 55 |
0319695 |
BELL CRANK |
| 56 |
0322945 |
PIN, Link shallow water drive |
| 58 |
0342914 |
BUSHING |
| 59 |
0436897 |
LEVER & SHAFT Assembly, Tilt lock |
| 60 |
0318295 |
THRUST WASHER, Upper |
| 61 |
0319696 |
ROD, Reverse lock |
| 62 |
0388661 |
CAM & SHIFT ASSY., Tilt lock |
| 63 |
5000697 |
BRACKET, Swivel |
| 64 |
0342397 |
BLOC, friction de direction |
| 67 |
0319787 |
BUSHING |
| 68 |
0319227 |
SCREW, Knob |
| 69 |
0324579 |
SCREW |
| 70 |
0322947 |
HEAD ASSY. |
| 71 |
0328048 |
KNOB, Tilt & reverse lock lever |
| 72 |
0317894 |
CACHE, tube de relevage |
| 74 |
0322949 |
LINK, Reverse lock |
| 75 |
0303887 |
WASHEER, Pin to swivel bracket |
| 76 |
0322950 |
LEVER, Reverse lock |
| 77 |
0315078 |
SPRING, Reverse lock |
| 78 |
0338657 |
LINK, Shallow water drive |
| 79 |
0438298 |
ARM & SHAFT ASSY. |
| 80 |
0436223 |
GROMMET, Exhaust relief |
| 82 |
0339489 |
BUSHING |
| 87 |
0351896 |
TILT TUBE This part replaces 0321511. |
| 88 |
0335554 |
CROU, tube de relevage |
| 89 |
0303884 |
RONDELLE |
