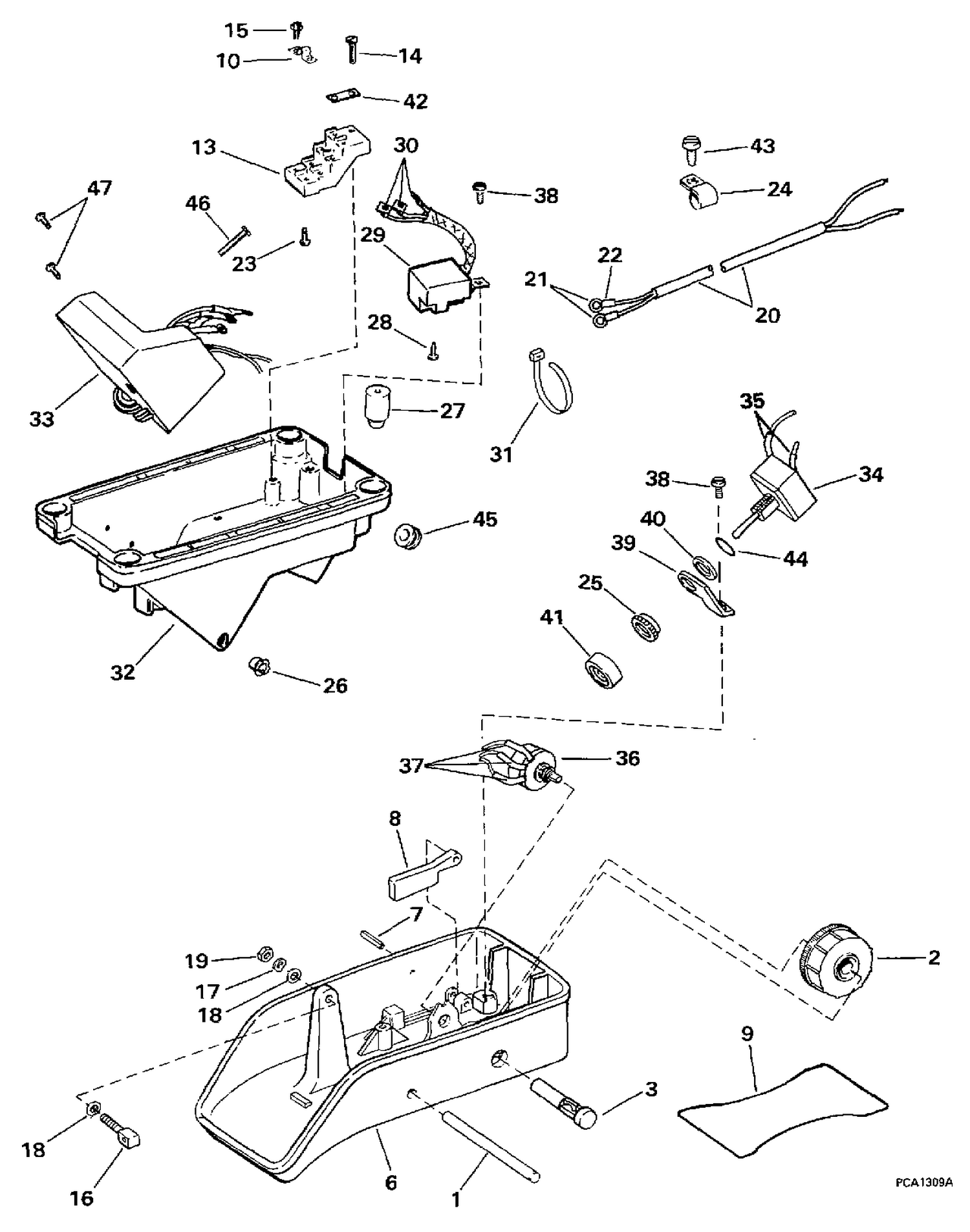

| Ref | Part Number | Description |
|---|
| 1 |
0319524 |
HINGE PIN, Pedal to base |
| 2 |
0116615 |
WHEEL, Speed control |
| 3 |
0338080 |
SHAFT, Bearing control wheel |
| 6 |
0116425 |
PEDAL ASSY. |
| 7 |
0319527 |
ROLL PIN, Lever |
| 8 |
0319519 |
LEVER ON/OFF SWITCH |
| 9 |
0116416 |
NON SLIP TAPE, Pedal |
| 10 |
0315004 |
FIL DE LIAISON, bornier |
| 13 |
0116603 |
TERMINAL BLOCK, Pedal |
| 14 |
0319613 |
SCREW, Terminal block mounting |
| 15 |
0329182 |
VIS, borne |
| 16 |
0338175 |
PIVOT PIN, Cable to pedal |
| 18 |
0302474 |
WAHSER,Link |
| 20 |
0116735 |
CABLE ASSY., Battery |
| 21 |
0512902 |
RING TERMINAL |
| 24 |
0333441 |
CLAMP, Battery cable 12V |
| 25 |
0324648 |
NUT, Switch to bracket |
| 26 |
0319518 |
BUSHING |
| 27 |
0319522 |
BUMPER, Base |
| 29 |
0116660 |
DIODE MODULE ASSY. |
| 30 |
0116608 |
TERMINAL, Side ring |
| 32 |
0116619 |
BASE, Foot control |
| 33 |
0116665 |
CONTROLLER MODULE |
| 34 |
0116768 |
ON/OFF SWITCH |
| 36 |
0116767 |
SPEED CONTROL ASSY. |
| 38 |
0332343 |
SCREW |
| 39 |
0332339 |
BRACKET, Switch to pedal |
| 41 |
0324609 |
COVER, On/off switch |
| 42 |
0116737 |
JUMPER |
| 43 |
0319615 |
SCREW, Clamp |
| 45 |
0332342 |
GROMMET, Electrical cable |
| 46 |
0116728 |
SCREW, Controller to base |
