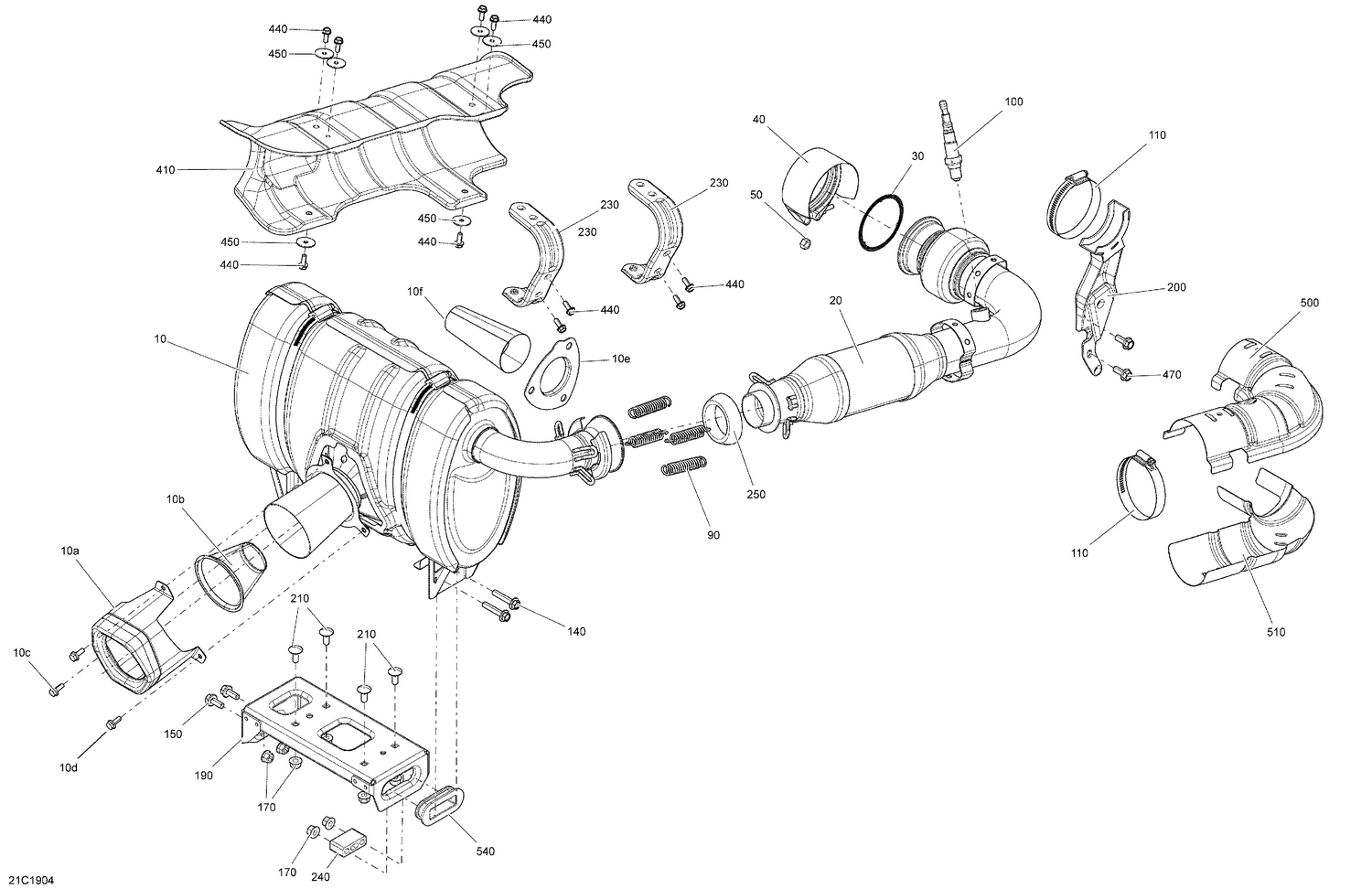

01- Exhaust - Turbo
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 707602046 | Heat Shield |
| 10c | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 20 | 707602242 | Headpipe |
| 30 | 707601835 | Seal |
| 40 | 707602570 | V Clamp |
| 50 | 707602143 | Nut |
| 90 | 707601834 | Spring |
| 100 | 707600872 | Oxygen Sensor |
| 110 | 293650255 | Gear Clamp |
| 140 | 207684044 | Hex. Flange Screw M8 X 40 |
| 150 | 207682046 | Hex. Flange Screw M8 X 20 |
| 160 | 234082410 | Flat Washer 8 mm |
| 170 | 233081416 | Hex. Flange Nut M8 |
| 190 | 707601765 | Muffler Support |
| 200 | 707602815 | Exhaust Mount This part replaces 707601842. |
| 210 | 207782044 | Carriage Bolt, M8 X 20 |
| 230 | 707601896 | C Support |
| 240 | 707601897 | Muffler Stopper |
| 250 | 707601908 | Gasket |
| 410 | 707601768 | Lateral Heat Shield |
| 440 | 210261650 | Hex. Flange Screw M6 X 16 |
| 450 | 503193995 | Washer |
| 470 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 500 | 707601795 | Upper Heat Shield |
| 510 | 707601796 | Lower Heat Shield |
