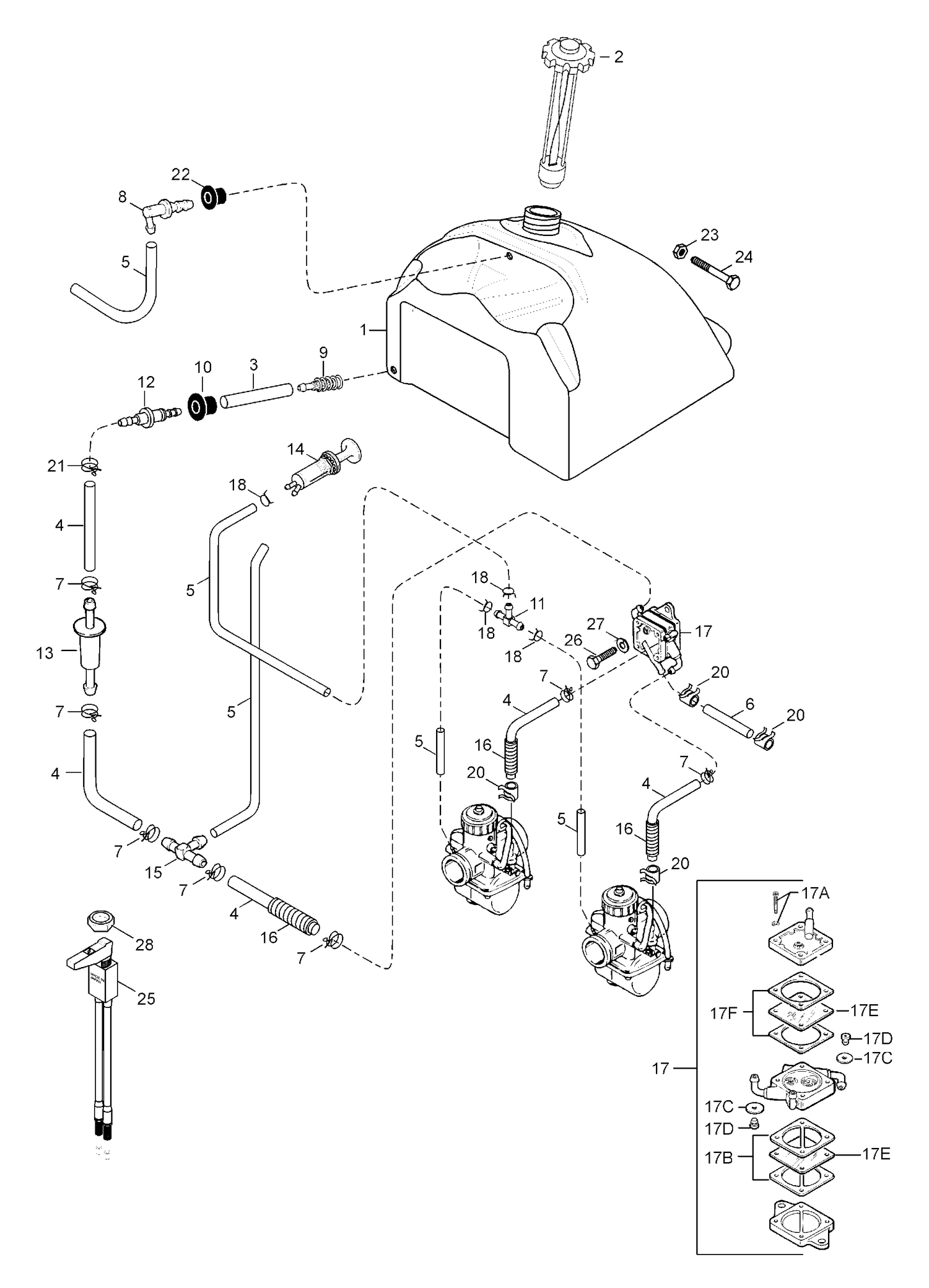

02- Fuel Tank
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5141006 | Fuel tank, 37l |
| 2 | 572161200 | Gauge |
| 3 | 39030 | Fuel hose 8/5 |
| 4 | 39004 | Fuel hose 8/5 |
| 5 | 39035 | Primer hose 5/3 |
| 6 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 7 | 27086 | CLAMP - Call your local BRP dealership |
| 8 | 533535 | Angle nipple |
| 9 | 414865700 | Filter for fuel tank |
| 10 | 570045500 | Grommet |
| 11 | 21062 | T-joint |
| 12 | 414518500 | Connector |
| 13 | 21065 | Fuel filter |
| 14 | 415060500 | Primer This part replaces 414479200. |
| 15 | 21067 | T-joint |
| 16 | 28012 | Spriral tube |
| 17 | 403800600 | FUEL PUMP - Call your local BRP dealership |
| 17A | 404131600 | Screw |
| 17B | 404902300 | GASKET - Call your local BRP dealership |
| 17C | 404902100 | GROMMET - Call your local BRP dealership |
| 17D | 404900300 | VALVE - Call your local BRP dealership |
| 17E | 404902200 | DIAPHRAGM - Call your local BRP dealership |
| 17F | 404902400 | GASKET - Call your local BRP dealership |
| 18 | 543230 | Clamp, primer |
| 20 | 414420700 | Universal Spring Clamp |
| 21 | 414554800 | Spring clamp |
| 22 | 280000674 | Grommet This part replaces 28037. |
| 23 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 24 | 40085 | Screw M6x80 |
| 25 | 535482 | Choke |
| 26 | 40029 | Screw M6x16 |
| 27 | 20003 | Washer |
