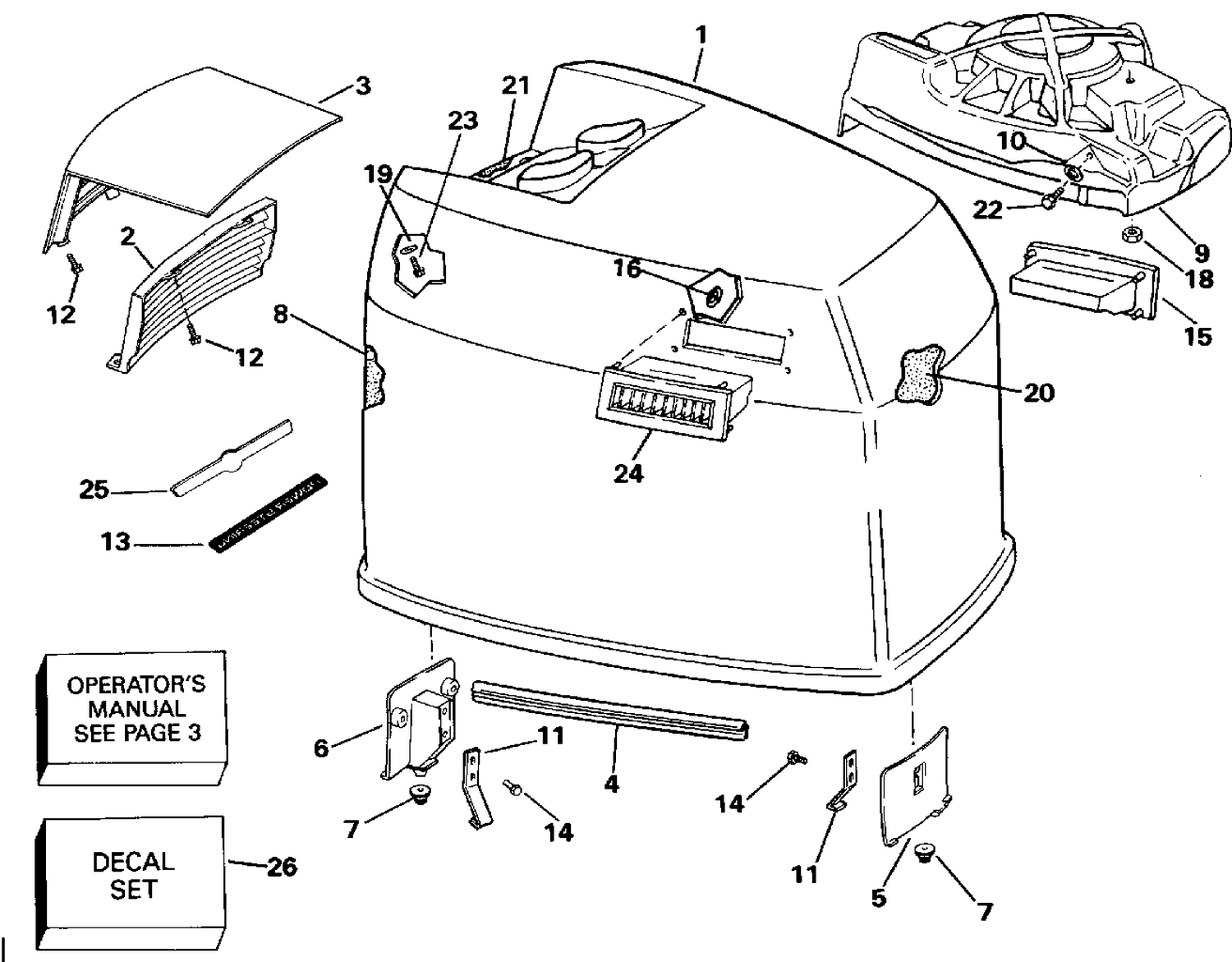

| Ref | Part Number | Description |
|---|
| 1 |
0434902 |
ENGINE COVER ASSY., 200TX |
| 1 |
0434903 |
ENGINE COVER ASSY., 200CX |
| 1 |
0434904 |
ENGINE COVER ASSY., 225 |
| 1 |
0434905 |
ENGINE COVER ASSY., 225 |
| 1 |
0434906 |
ENGINE COVER ASSY., 225 |
| 2 |
0331945 |
BAFFLE |
| 3 |
0331944 |
TILT HANDLE |
| 5 |
0336991 |
BRACKET, Locating, front |
| 8 |
0334947 |
SOUND BLANKET, Side |
| 9 |
0334911 |
BAFFLE |
| 13 |
0337720 |
APPLIQUE, Power steering |
| 15 |
0334909 |
LOUVER, Engine cover, port |
| 18 |
0336188 |
NUT, Baffle |
| 20 |
0334948 |
SOUND BLANKET, Front |
| 21 |
0334949 |
SOUND BLANKET, Rear |
| 22 |
0334967 |
SCREW, Baffle |
| 24 |
0334910 |
LOUVER, Engine cover, stbd |
| 25 |
0337719 |
APPLIQUE, Counter rotating |
| 26 |
0435655 |
DECAL SET, 200TX, 200CX |
| 26 |
0435656 |
DECAL SET, 225, 20" |
