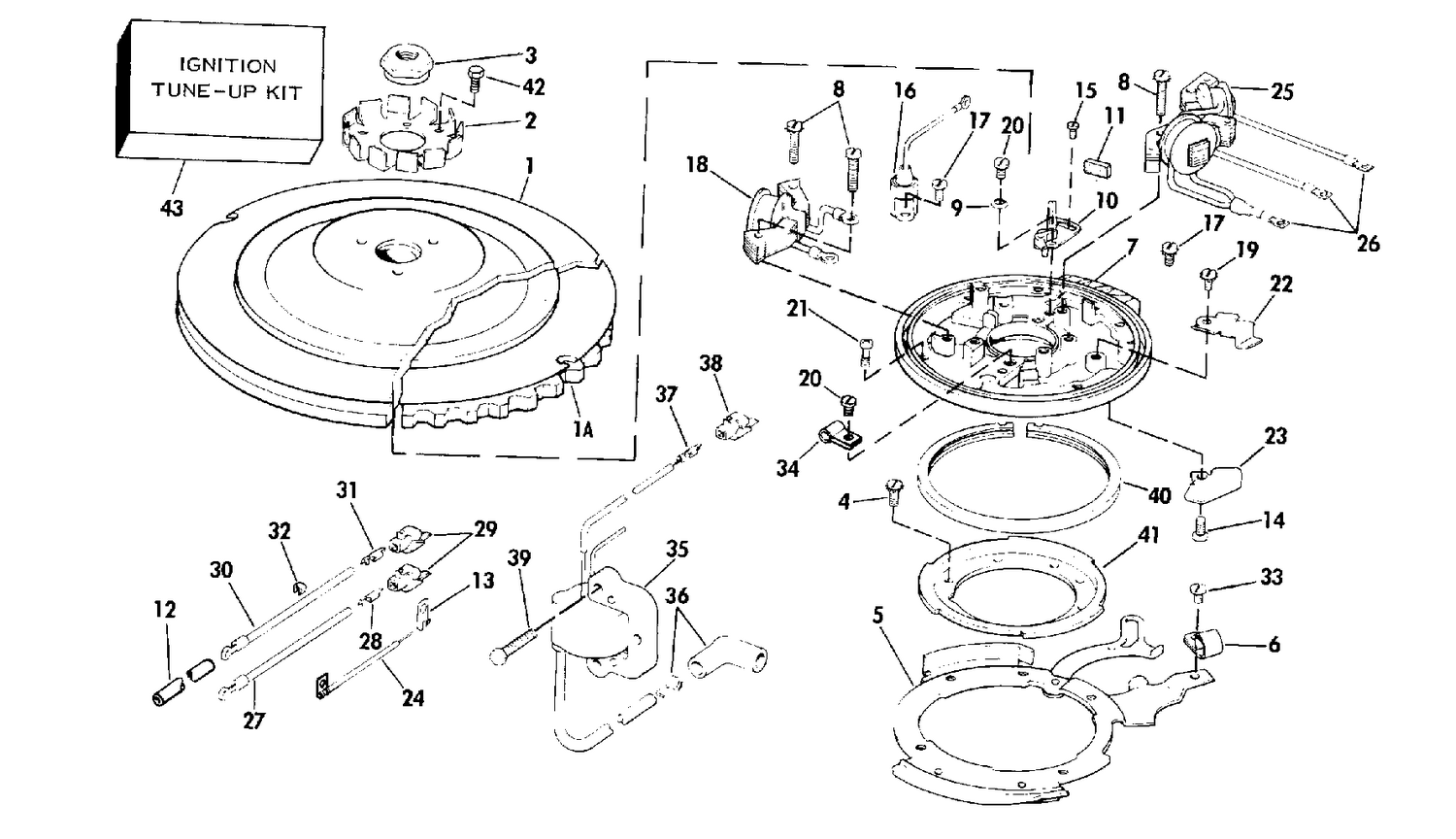

| Ref | Part Number | Description |
|---|
| 1 |
0582615 |
FLYWHEEL ASSY. This part replaces 0581344. |
| 1A |
0581345 |
FLYWHEEL ASSY |
| 2 |
0202111 |
RATCHET |
| 3 |
0326111 |
NUT This part replaces 0308457. |
| 4 |
0305230 |
SCREW |
| 5 |
0386172 |
RETAINER, Cam and link assembly |
| 6 |
0316669 |
CLAMP This part replaces 0319473. |
| 7 |
0581217 |
ARMATURE PLATE |
| 8 |
0510397 |
SCREW |
| 9 |
0510208 |
BOW WASHER |
| 10 |
0581207 |
BREAKER ASSY |
| 12 |
0320288 |
TUBING LEADS |
| 12 |
0511327 |
TUBING,Leads |
| 13 |
0511286 |
TERMINAL, Ground lead |
| 15 |
0510194 |
SCREW |
| 16 |
0581419 |
CONDENSER |
| 18 |
0581202 |
COIL & LAMINATION |
| 18 |
0581557 |
COIL & LAMINATION |
| 21 |
0511195 |
SCREW |
| 22 |
0318954 |
CLAMP, Ignition coil |
| 23 |
0318909 |
COVER |
| 24 |
0581320 |
LEAD ASSY.,Ground |
| 24 |
0581393 |
LEAD ASSY,Ground |
| 25 |
0581252 |
STATOR ASSY |
| 27 |
0581322 |
LEAD LOWER |
| 30 |
0581321 |
LEAD, Upper |
| 32 |
0511071 |
CLIP |
| 34 |
0314200 |
CLAMP |
| 35 |
0581370 |
IGNITION COIL ASSEMBLY |
| 39 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0309646. |
| 40 |
0322435 |
ROULEMENT, plaque d'allumage vers support This part replaces 0319069. |
| 41 |
0318910 |
SUPPORT, Armature plate |
| 42 |
0308072 |
SCREW |
| 0581208 |
0581208 |
ARMATURE PLATE ASSY |
| 0581558 |
0581558 |
ARMATURE PLASTE ASSY. |
