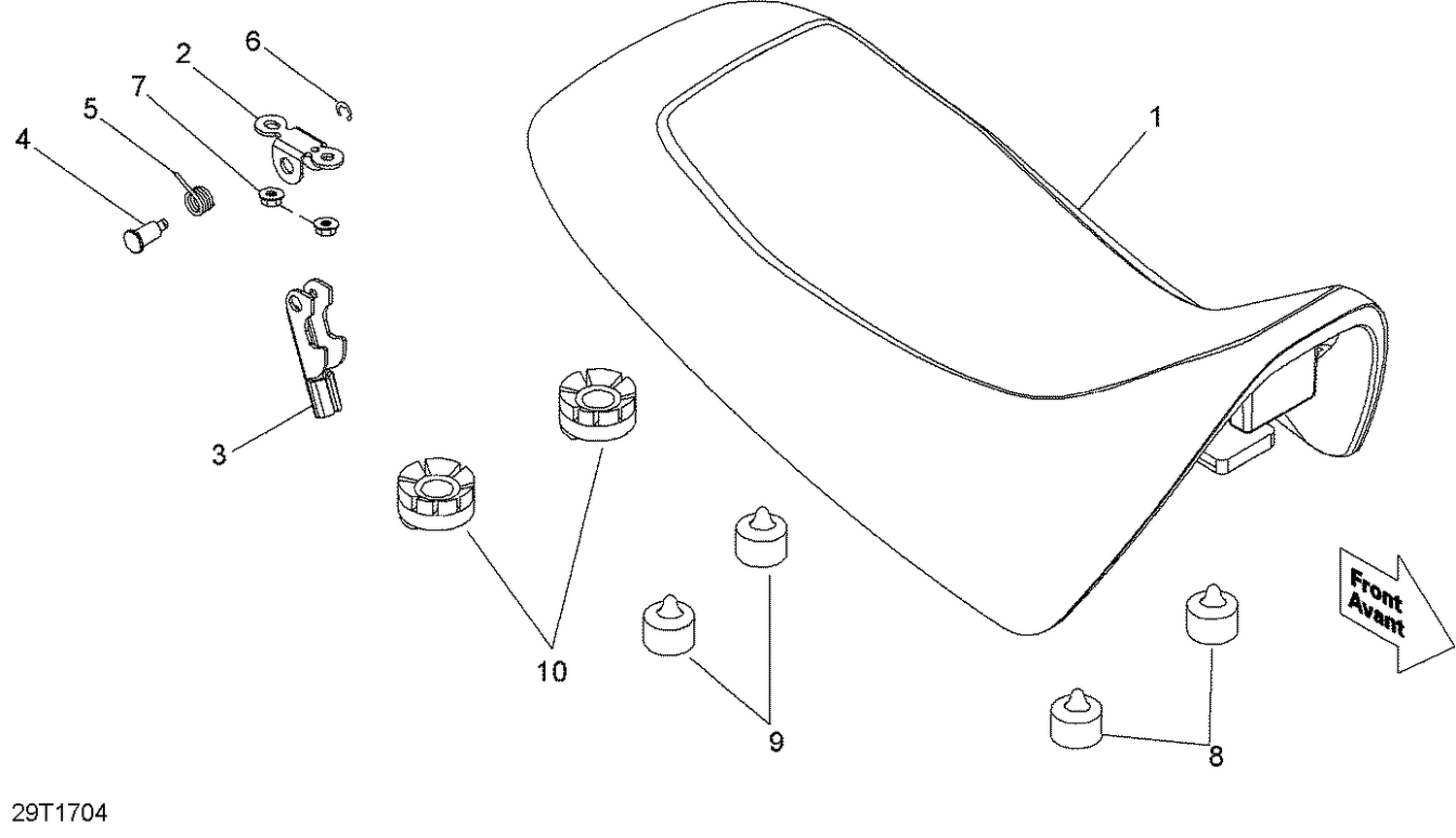

09- Seat
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V77100DGF030LL | Seat |
| 2 | V77232MAA020LL | Seat Lock Stay This part replaces V77232MAA020. |
| 3 | V77239MAA030LL | Seat Lock |
| 4 | V11200MAA030LL | Seat Lock Pin |
| 5 | V75581MAA020LL | Seat Lock Spring |
| 6 | V90605MAA010LL | Circlip |
| 7 | 232561414 | Elastic Stop Nut M6 |
| 8 | V85268MAA010LL | Rubber Cushion |
| 9 | V85268DGF020LL | Rubber Cushion |
