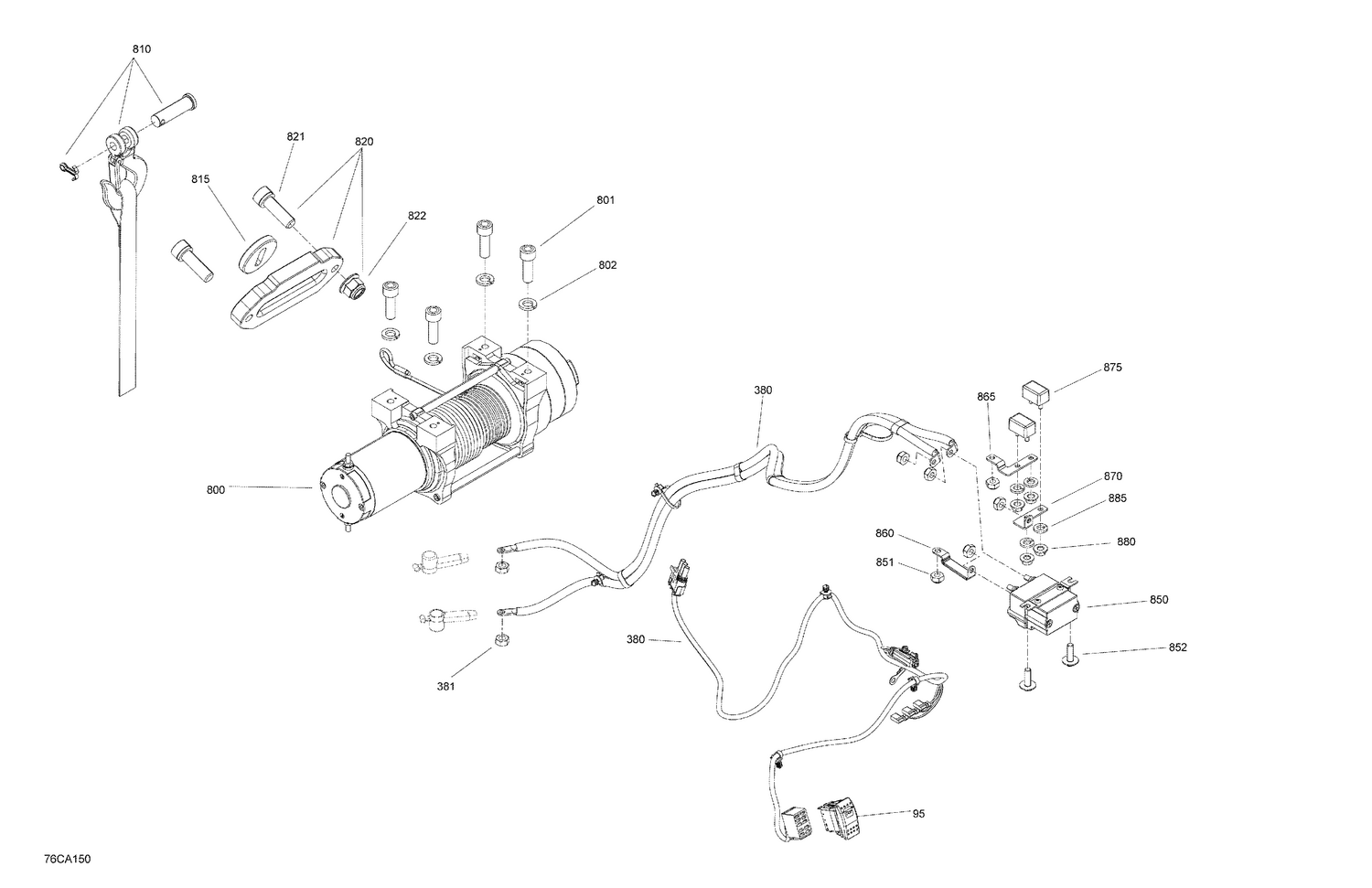

08- Electric - Winch
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 35 | 232561200 | Brass Elastic Stop Nut M6 |
| 95 | 710002052 | Switch Winch |
| 380 | 710007832 | Winch Cables |
| 381 | 232561200 | Brass Elastic Stop Nut M6 |
| 800 | 710006990 | Electric Winch |
| 801 | 205082544 | Socket Head Screw M8 X 25 |
| 802 | 234181401 | Lock Washer 8 mm |
| 810 | 705014949 | Winch Hook Kit |
| 815 | 710007028 | Stopper |
| 820 | 715006426 | Winch Rope Guide Kit |
| 821 | 205003044 | Socket Screw M10 x 30 |
| 822 | 233201414 | Hex. Flange Elastic Nut M10 |
| 850 | 710006991 | Solenoid |
| 851 | 232561200 | Brass Elastic Stop Nut M6 |
| 852 | 250000959 | Screw PT Type K-50 X 16 |
| 860 | 710004772 | Power Bar |
| 865 | 710004872 | Power Bar |
| 870 | 710004873 | Power Bar |
| 875 | 710007039 | Circuit Breaker 50 Amp |
| 880 | 233251434 | Flange Elastic Nut M5 |
