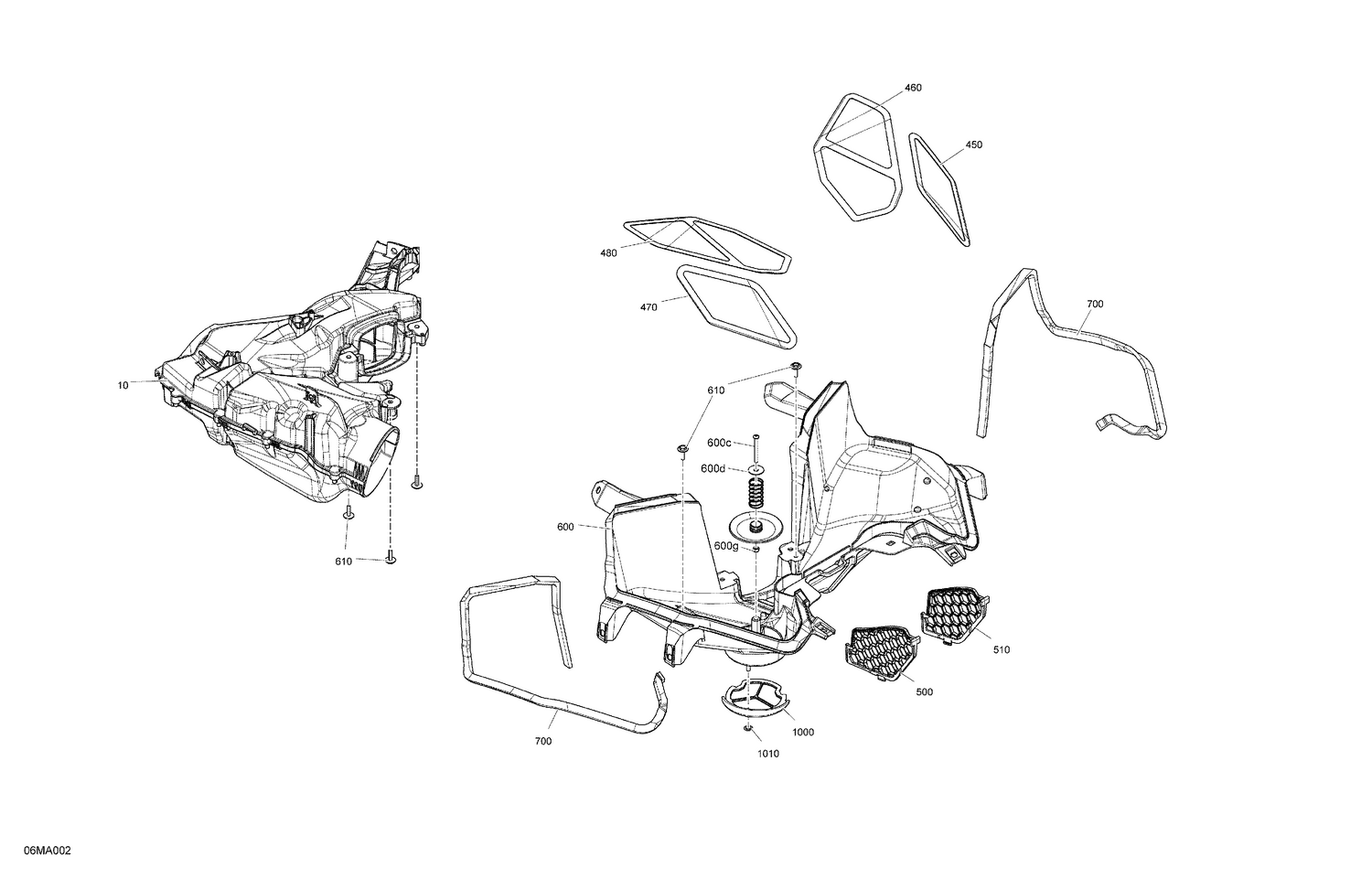

02- Engine - Air Intake
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 508001044 | Secondary Chamber |
| 450 | 508001035 | Air Filter |
| 460 | 508001040 | Air Filter |
| 470 | 508001034 | Air Filter |
| 480 | 508001038 | Air Filter |
| 500 | 508001049 | LH Protective Grille |
| 510 | 508001050 | RH Protective Grille |
| 600c | 205444056 | Socket Head Screw M4 X 40 |
| 600d | 224060201 | Flat Washer |
| 600g | 232541414 | Elastic Stop Nut M4 |
| 610 | 250000725 | Screw M4 X 16 |
| 700 | 293830188 | Seal, 1PC = 3M |
| 1000 | 508000815 | Pop Off Filter |
