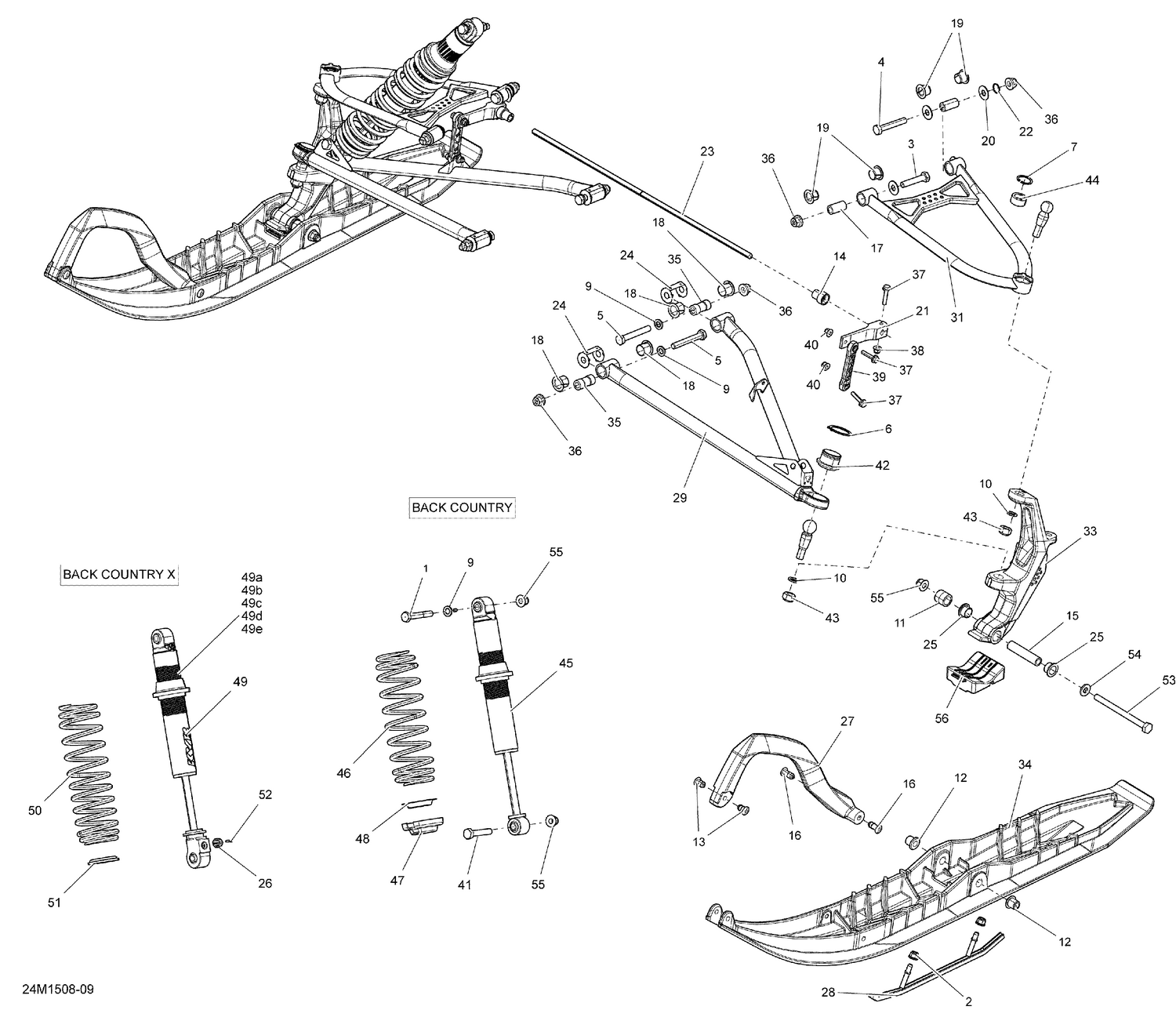

07- Front Suspension And Ski _24M1508
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 4 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 5 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 6 | 293370035 | Circlip |
| 7 | 293370070 | Circlip |
| 9 | 503189564 | Washer |
| 10 | 503192491 | Washer |
| 11 | 503193651 | Spacer |
| 12 | 505071781 | Ski Bushing |
| 13 | 505071812 | Retainer 17mm long |
| 14 | 505072064 | Bushing |
| 15 | 506133300 | Spacer |
| 16 | 505072133 | Retainer 23mm Long |
| 17 | 505072143 | Sleeve |
| 18 | 505072208 | Bushing |
| 19 | 505072250 | Bushing |
| 20 | 505072392 | Washer |
| 21 | 505072394 | Stabilisator Lever |
| 22 | 505072448 | O-Ring |
| 23 | 505072602 | Stabilisator |
| 24 | 505072634 | Wear Plate |
| 25 | 505072690 | Leg Bushing |
| 26 | XXX | Not Available As Spare Parts |
| 28 | 860201044 | Carbide Runner Kit (Square Runner) |
| 29 | 505073583 | Black Epoxy, LH Lower Arm |
| 29 | 505073584 | Black Epoxy, RH Lower Arm |
| 31 | 505073588 | Black Epoxy, LH Upper Arm |
| 32 | 505073589 | Black Epoxy, RH Upper Arm |
| 33 | 505073630 | Black, LH Ski Leg |
| 33 | 505073631 | Black, Ski Leg RH |
| 34 | 505073227 | Black, Ski |
| 35 | 505072209 | Sleeve |
| 36 | 250100165 | Hex. Flange Elastic Nut M10 |
| 37 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 38 | 233261466 | Hex. Flange Elastic Nut M6 |
| 39 | 505072204 | Sway Bar Double Joint Link |
| 40 | 233261466 | Hex. Flange Elastic Nut M6 |
| 41 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 42 | 505073636 | Ball Joint This part replaces 505072682. |
| 43 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 44 | 505072913 | Upper Ball Joint |
| 45 | 505073699 | Front Shock |
| 46 | 505072526 | Deep Black, Spring |
| 47 | 706200881 | Spring Stopper |
| 48 | 706200785 | Cap |
| 49 | XXX | Not Available As Spare Parts |
| 49a | XXX | Not Available As Spare Parts |
| 49b | XXX | Not Available As Spare Parts |
| 49c | XXX | Not Available As Spare Parts |
| 49d | XXX | Not Available As Spare Parts |
| 49e | XXX | Not Available As Spare Parts |
| 50 | 505072846 | Deep Black, Spring |
| 51 | 503194270 | Spring Stopper This part replaces 503192608. |
| 52 | 250000644 | Allen Screw M3 X 0.5 X 10 This part replaces 205031060. |
| 53 | 250000703 | Hex. Screw M10 X 130 |
| 54 | 503192496 | Washer |
| 55 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
