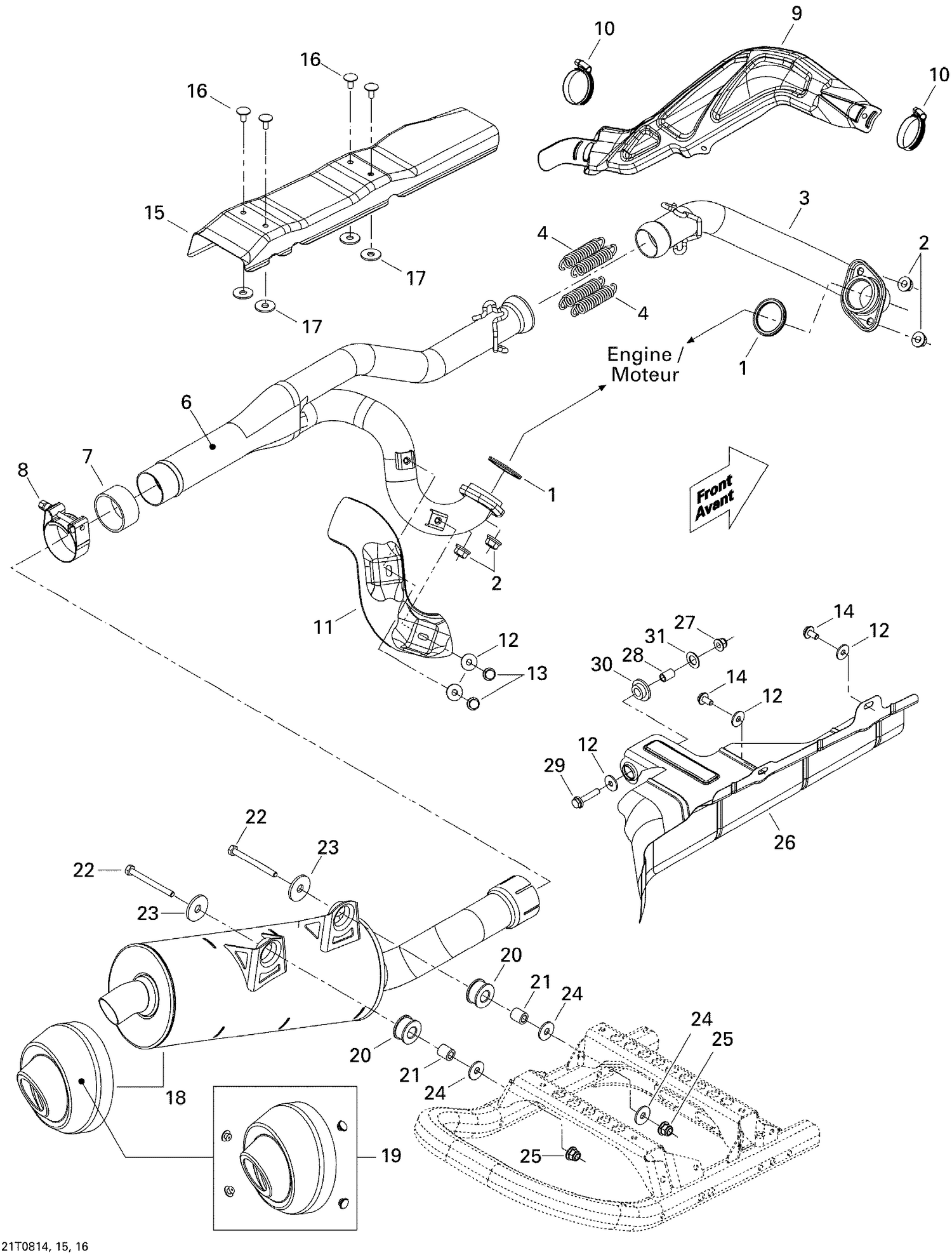

| Ref | Part Number | Description |
|---|
| 1 |
707600317 |
Gasket |
| 2 |
233081416 |
Hex. Flange Nut M8 |
| 3 |
707600529 |
FRONT TUNED PIPE - Call your local BRP dealership |
| 4 |
415107100 |
Spring |
| 5 |
XXX |
Not Available As Spare Parts |
| 6 |
707600530 |
REAR TUNED PIPE - Call your local BRP dealership |
| 7 |
707600430 |
Pipe Gasket |
| 8 |
293650177 |
Norma Gear Clamp |
| 9 |
707600889 |
Heat Shield This part replaces 707600342. |
| 10 |
293650098 |
Norma Gear Clamp |
| 11 |
707600615 |
PROTECTOR - Call your local BRP dealership This part replaces 707600318. |
| 12 |
250200082 |
Flat Washer This part replaces 391302000. |
| 13 |
250000073 |
HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership |
| 14 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 15 |
707600700 |
HEAT SHIELD - Call your local BRP dealership This part replaces 707600426. |
| 16 |
390406500 |
Pop Rivet 3/16" |
| 17 |
517124300 |
Washer |
| 19 |
703500701 |
MUFFLER CAP KIT - Call your local BRP dealership |
| 20 |
707603323 |
Vibration Damper This part replaces 707600077. |
| 21 |
293900106 |
Bushing This part replaces 293900082. |
| 22 |
207087044 |
Hex. Screw M8 X 70 |
| 23 |
503032900 |
Washer |
| 24 |
234082410 |
Flat Washer 8 mm |
| 25 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 26 |
707600621 |
Protector This part replaces 707600284. |
| 27 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 28 |
293900078 |
Sleeve |
| 29 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 30 |
705003932 |
Grommet This part replaces 709200115. |
