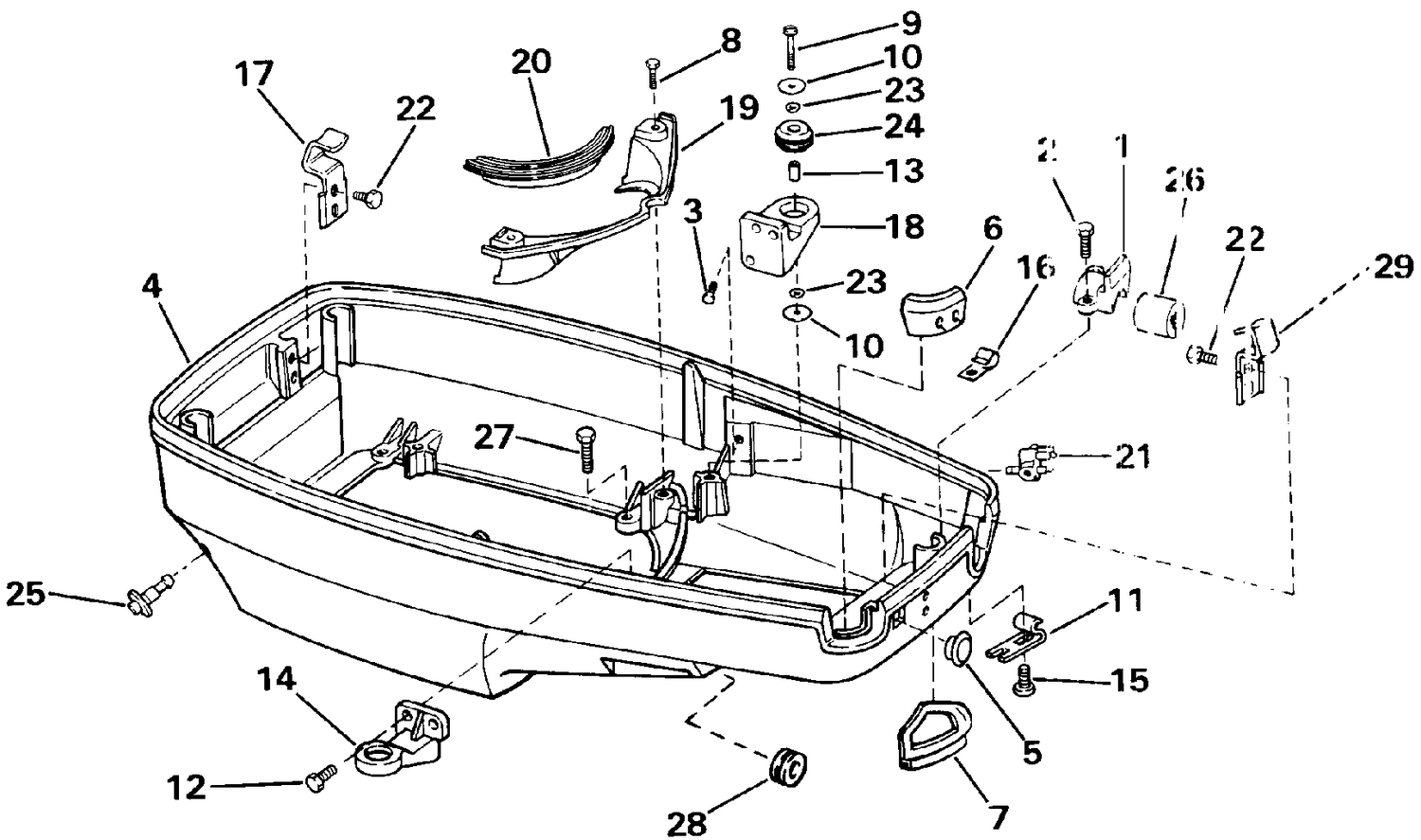

| Ref | Part Number | Description |
|---|
| 1 |
0318286 |
CLAMP |
| 3 |
0313117 |
SCR,Clamp,eng cable |
| 4 |
0391762 |
ENGINE COVER, Lower |
| 4 |
0397383 |
ENGINE COVER, Lower This part replaces 0329883. |
| 5 |
0327118 |
PLUG |
| 6 |
0326959 |
GROMMET, Control cables |
| 6 |
0327117 |
GROMMET, Control cables |
| 7 |
0318574 |
SEAL, Steering arm |
| 8 |
0312299 |
VIS, serre-câble |
| 9 |
0303398 |
VIS, support |
| 11 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0318313. |
| 12 |
0551793 |
SCREW |
| 13 |
0302406 |
SLEEVE |
| 14 |
0327196 |
SUPPORT, Front stbd |
| 15 |
0310539 |
SCREW, Clamp choke solenoid |
| 16 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 17 |
0323474 |
HOOK, Cover to housing |
| 18 |
0316002 |
SUPPORT, Front port |
| 19 |
0318557 |
FRAME, Front |
| 20 |
0316064 |
SEAL, Frame |
| 21 |
0393334 |
CONNECTEUR, carburant - mâle |
| 22 |
0304027 |
VIS, arbre de commande de sens de marche |
| 24 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 25 |
0321885 |
NIPPLE |
| 27 |
0300646 |
VIS, ancrage |
| 28 |
0331634 |
BAGUE, câble d'accélérateur This part replaces 0325958. |
| 29 |
0208252 |
HOOK, Front |
