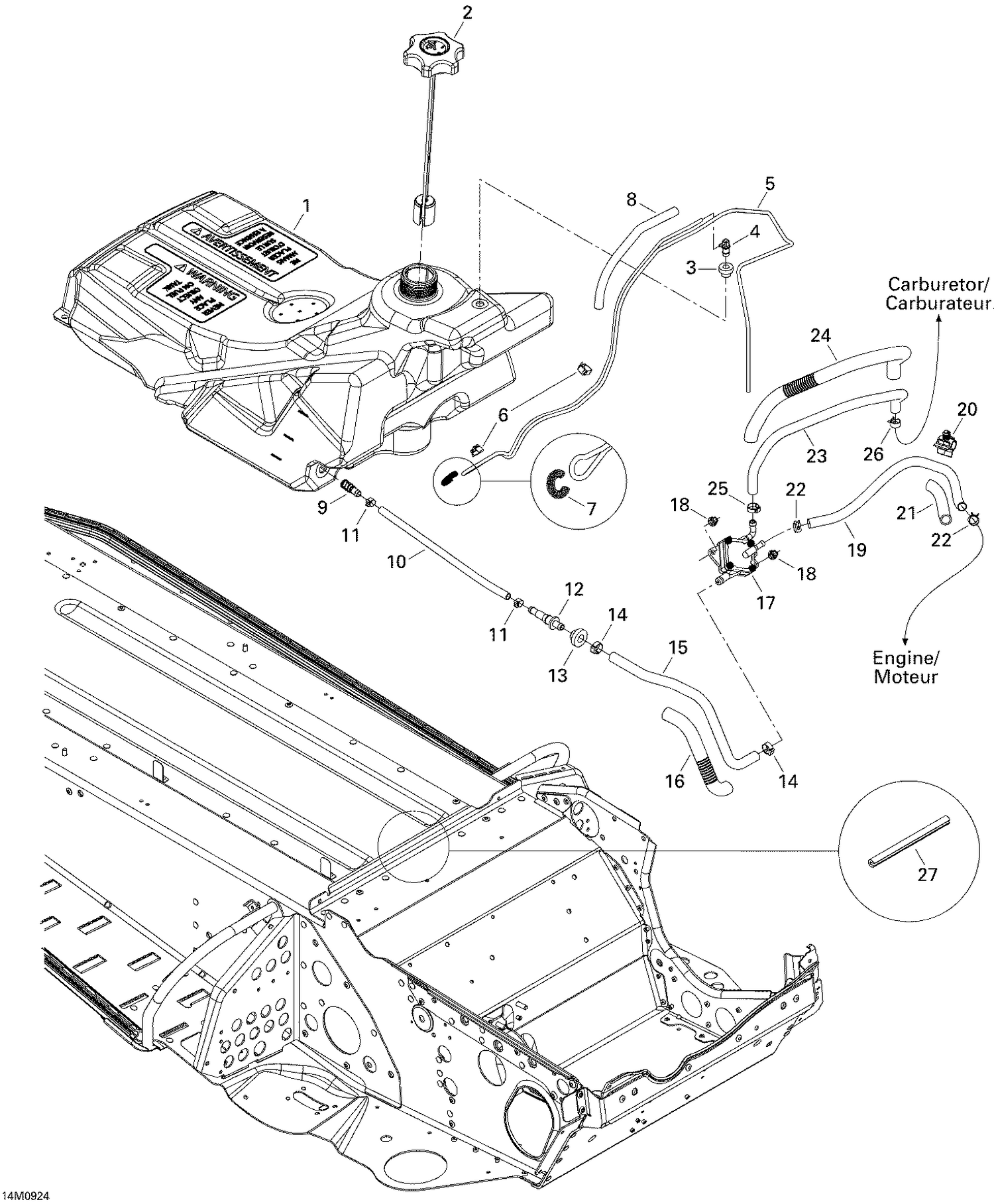

02- Fuel System
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033179 | Fuel Tank |
| 2 | 513033361 | Fuel Tank Cap |
| 3 | 513032908 | Grommet |
| 4 | 414814100 | Male Connector |
| 5 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 6 | 414227300 | Clip |
| 7 | 414818200 | SPRING - Call your local BRP dealership |
| 8 | 219704407 | Tubing 10 MM 1000MM Long |
| 9 | 414872100 | Fuel Filter Strainer |
| 10 | 415005700 | Hose |
| 11 | 513033010 | Norma Spring Clamp |
| 12 | 414872700 | Male Connector |
| 13 | 707800347 | Grommet This part replaces 570273900. |
| 14 | 293650053 | Crimp Clamp |
| 15 | 513033374 | Formed Hose |
| 16 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 17 | 403901815 | FUEL PUMP - Call your local BRP dealership |
| 18 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 19 | 219704549 | Hose This part replaces 219704439. |
| 20 | 275500528 | Hose Retainer |
| 21 | 219704400 | Was 409901800 Tubing (13 mm) |
| 22 | 414415200 | Spring Clamp |
| 23 | 219704422 | HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership |
| 24 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 25 | 293650047 | Crimp Clamp, 15.3-706R |
| 26 | 513033029 | Universal Spring Clamp |
