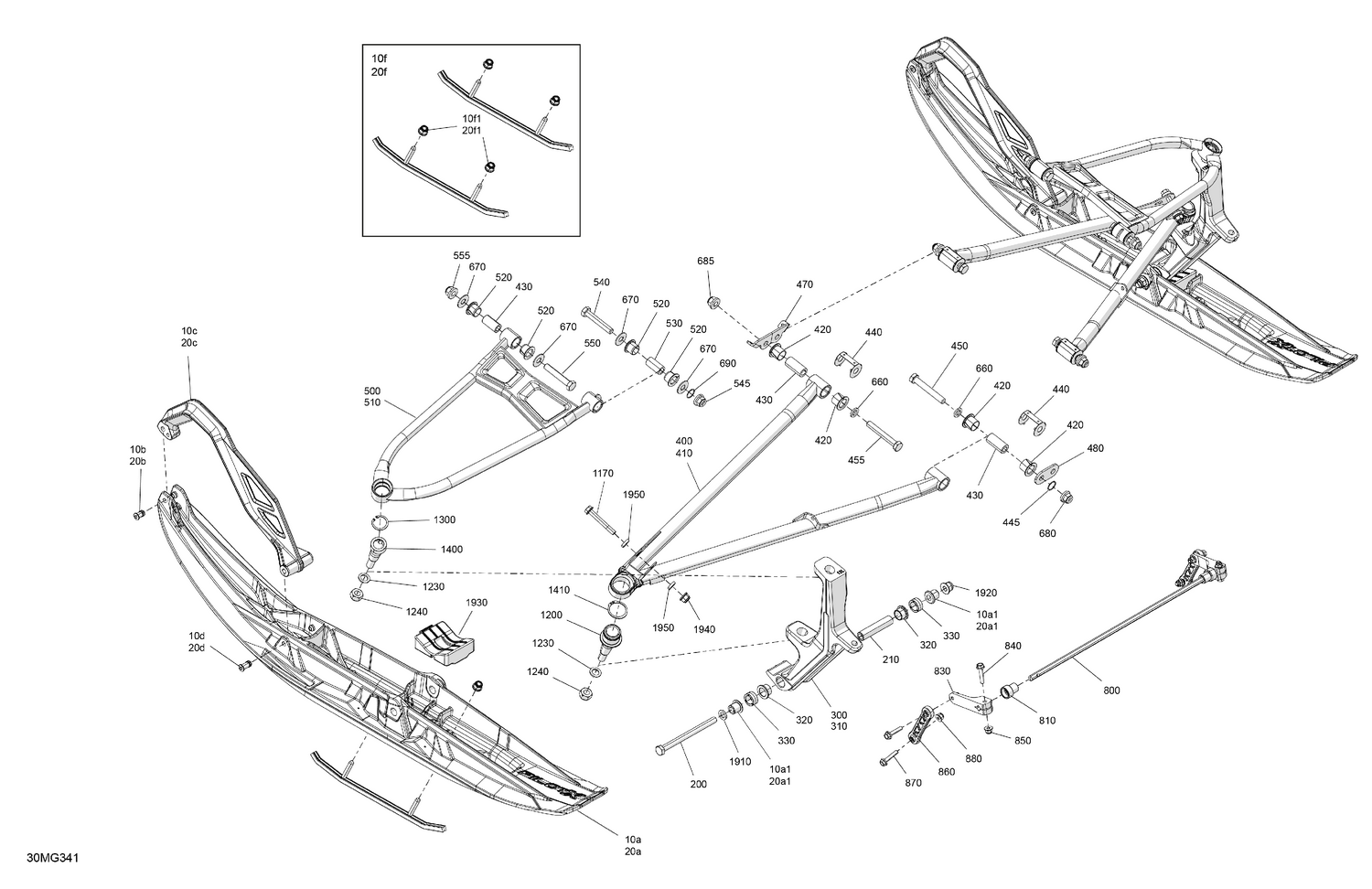

| Ref | Part Number | Description |
|---|
| 10a1 |
505071781 |
Ski Bushing |
| 10b |
505075902 |
Rivet Ski Handle Short |
| 10c |
505075364 |
Deep Black, Ski Handle |
| 10d |
505075906 |
Rivet Ski Handle Long |
| 10f1 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 20a1 |
505071781 |
Ski Bushing |
| 20b |
505075902 |
Rivet Ski Handle Short |
| 20c |
505075364 |
Deep Black, Ski Handle |
| 20d |
505075906 |
Rivet Ski Handle Long |
| 20f1 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 200 |
250000703 |
Hex. Screw M10 X 130 |
| 210 |
505073691 |
Ski Axle |
| 300 |
505076090 |
Magma Red, LH Ski Leg +12 |
| 310 |
505076091 |
Magma Red, RH Ski Leg +12 |
| 320 |
505075612 |
Ski Leg Bushing |
| 330 |
505074949 |
Spacer |
| 400 |
505075672 |
Black, LH Lower Suspension Arm |
| 410 |
505075673 |
Black, RH Lower Suspension Arm |
| 420 |
505072208 |
Bushing |
| 430 |
505072209 |
Sleeve |
| 440 |
505072634 |
Wear Plate |
| 445 |
293300202 |
O-Ring |
| 450 |
250001024 |
Screw Hex. M10 X 70 |
| 455 |
250001024 |
Screw Hex. M10 X 70 |
| 470 |
505073723 |
Wear Plate |
| 480 |
505076478 |
Suspension Arm Reinforcement |
| 500 |
505075526 |
Black, LH Upper Suspension Arm |
| 510 |
505075527 |
Black, RH Upper Suspension Arm |
| 520 |
505072250 |
Bushing |
| 530 |
505072143 |
Sleeve |
| 540 |
250001023 |
Screw Hex. M10 X 60 |
| 545 |
250100165 |
Hex. Flange Elastic Nut M10 |
| 550 |
250001023 |
Screw Hex. M10 X 60 |
| 555 |
250100165 |
Hex. Flange Elastic Nut M10 |
| 660 |
503189564 |
Washer |
| 670 |
505072392 |
Washer |
| 680 |
250100165 |
Hex. Flange Elastic Nut M10 |
| 685 |
250100165 |
Hex. Flange Elastic Nut M10 |
| 690 |
293300202 |
O-Ring |
| 800 |
505075686 |
Black, Stabilizer Bar |
| 810 |
505072064 |
Bushing |
| 830 |
505075627 |
Black, Stabilizer Bar Link |
| 840 |
207663056 |
Hex. Flange Screw M6 X 1.0 X 30 |
| 850 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 860 |
505072204 |
Sway Bar Double Joint Link |
| 870 |
207663056 |
Hex. Flange Screw M6 X 1.0 X 30 |
| 880 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 1170 |
250000824 |
Hex. Flange Screw M8 X 58 |
| 1200 |
505076276 |
Lower Ball Joint |
| 1230 |
503192491 |
Washer |
| 1240 |
232521464 |
Hex Elastic Nut M12 X 1.25 |
| 1300 |
293370070 |
Circlip |
| 1400 |
505072913 |
Upper Ball Joint |
| 1410 |
293370098 |
Snap Ring |
| 1910 |
503192496 |
Washer |
| 1920 |
233201464 |
Hex. Flange Elastic M10 x 1.5 |
| 1930 |
505072594 |
Ski Stopper |
| 1940 |
233281466 |
Elastic Flange Nut M8 |
| 1950 |
505073892 |
Spacer |
