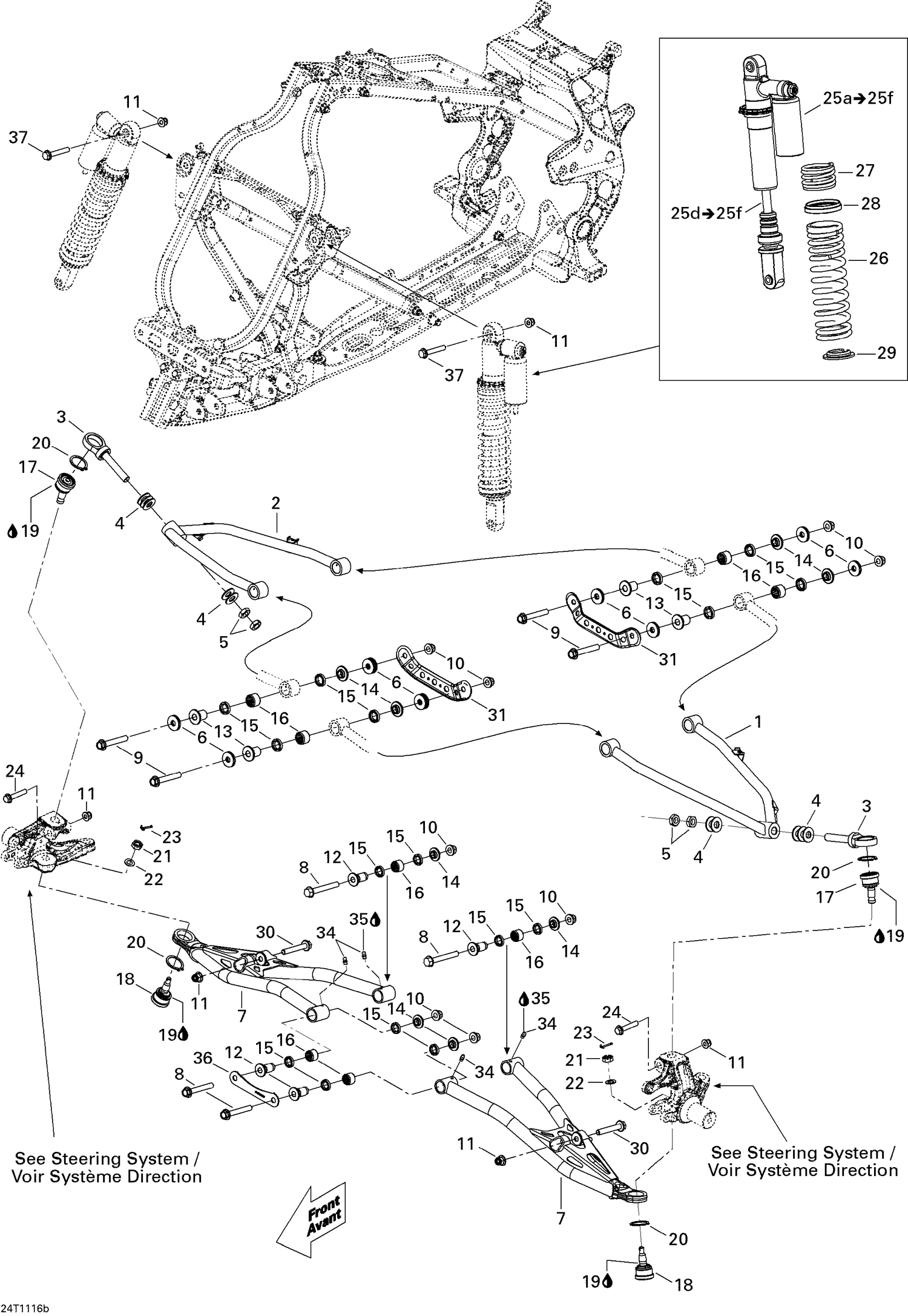

| Ref | Part Number | Description |
|---|
| 1 |
706201128 |
LH UPPER ARM - Call your local BRP dealership This part replaces 706200915. |
| 2 |
706201134 |
RH UPPER ARM - Call your local BRP dealership This part replaces 706200930. |
| 3 |
706201390 |
JOINT SUPPORT - Call your local BRP dealership This part replaces 706200892. |
| 4 |
250200079 |
FLAT WASHER - Call your local BRP dealership |
| 5 |
232170411 |
Hex. Jam Nut M14 |
| 6 |
250200014 |
Flat Washer M10 |
| 7 |
706201398 |
LOWER ARM - Call your local BRP dealership This part replaces 706200904. |
| 8 |
207607036 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 9 |
207607546 |
Hex. Flange Screw M10 X 75 |
| 10 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 11 |
233201434 |
Hex. Flange Elastic Nut M10 |
| 12 |
706200890 |
INNER BUSHING - Call your local BRP dealership |
| 13 |
706200888 |
Inner Bushing |
| 14 |
706200889 |
INNER BUSHING - Call your local BRP dealership |
| 15 |
293200120 |
SEAL - Call your local BRP dealership |
| 16 |
293350064 |
Needle Bearing |
| 17 |
706200462 |
UPPER BALL JOINT - Call your local BRP dealership |
| 18 |
706200461 |
LOWER BALL JOINT - Call your local BRP dealership |
| 19 |
413703100 |
Loctite 609, 10 ml |
| 20 |
293370009 |
Circlip 32 mm |
| 21 |
250100094 |
CASTLE NUT - Call your local BRP dealership |
| 22 |
234001410 |
Flat Washer 10 mm |
| 23 |
250400035 |
Cotter Pin |
| 24 |
207605534 |
Hex. Flange Screw |
| 25b |
706000567 |
Spring Stopper |
| 25c |
293600136 |
SHOCK OIL, 1 LITER - Call your local BRP dealership |
| 25e |
715900074 |
Circlip |
| 25f |
715900075 |
Circlip En C |
| 26 |
706200833 |
Black-Yellow Spring |
| 27 |
706200876 |
Black-Yellow Spring |
| 28 |
503191281 |
Spring Spacer |
| 29 |
706000567 |
Spring Stopper |
| 30 |
207605534 |
Hex. Flange Screw |
| 31 |
706200532 |
FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership |
| 34 |
250000315 |
Grease Fitting |
| 35 |
293550010 |
Synthetic Grease, 400 G |
| 36 |
706200722 |
Front Suspension Lower Plate |
