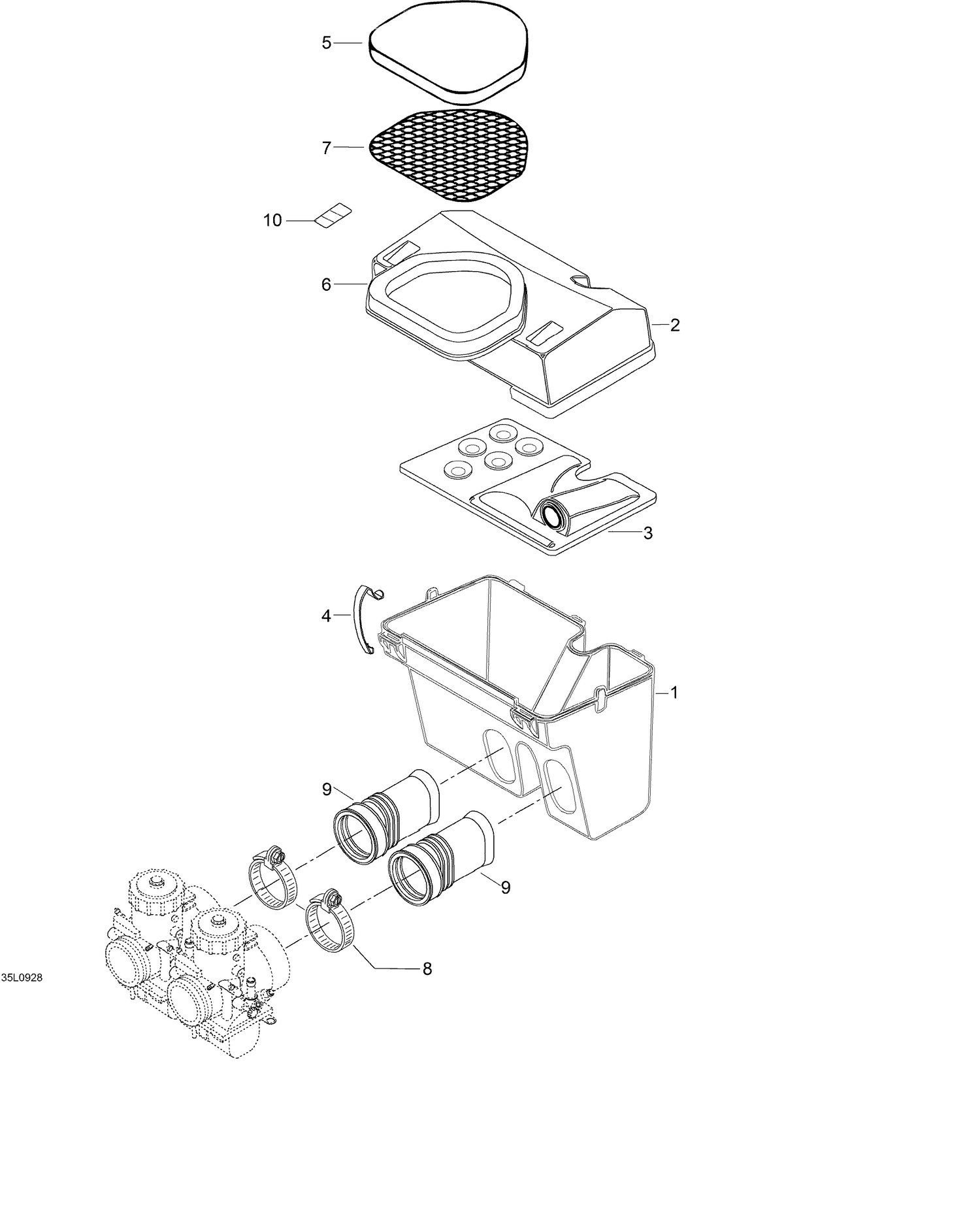

02- Air Intake System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | M5148040 | Air Intake |
| 2 | M5147636 | Intake Cover |
| 3 | M5346744 | Tube Plate |
| 4 | M5448209 | Lock Spring |
| 5 | 605349057 | AIR FILTER - Call your local BRP dealership |
| 6 | 5342959 | Sealing foam This part replaces M5342959. |
| 7 | M5342960 | Intake Grill |
| 8 | 27018 | Clamp - Call your local BRP dealership This part replaces M27018. |
| 9 | 5346828 | ADAPTOR CARBURATOR - Call your local BRP dealership This part replaces M5346828. |
| 9 | 570134300 | RH Air Intake Adaptor |
