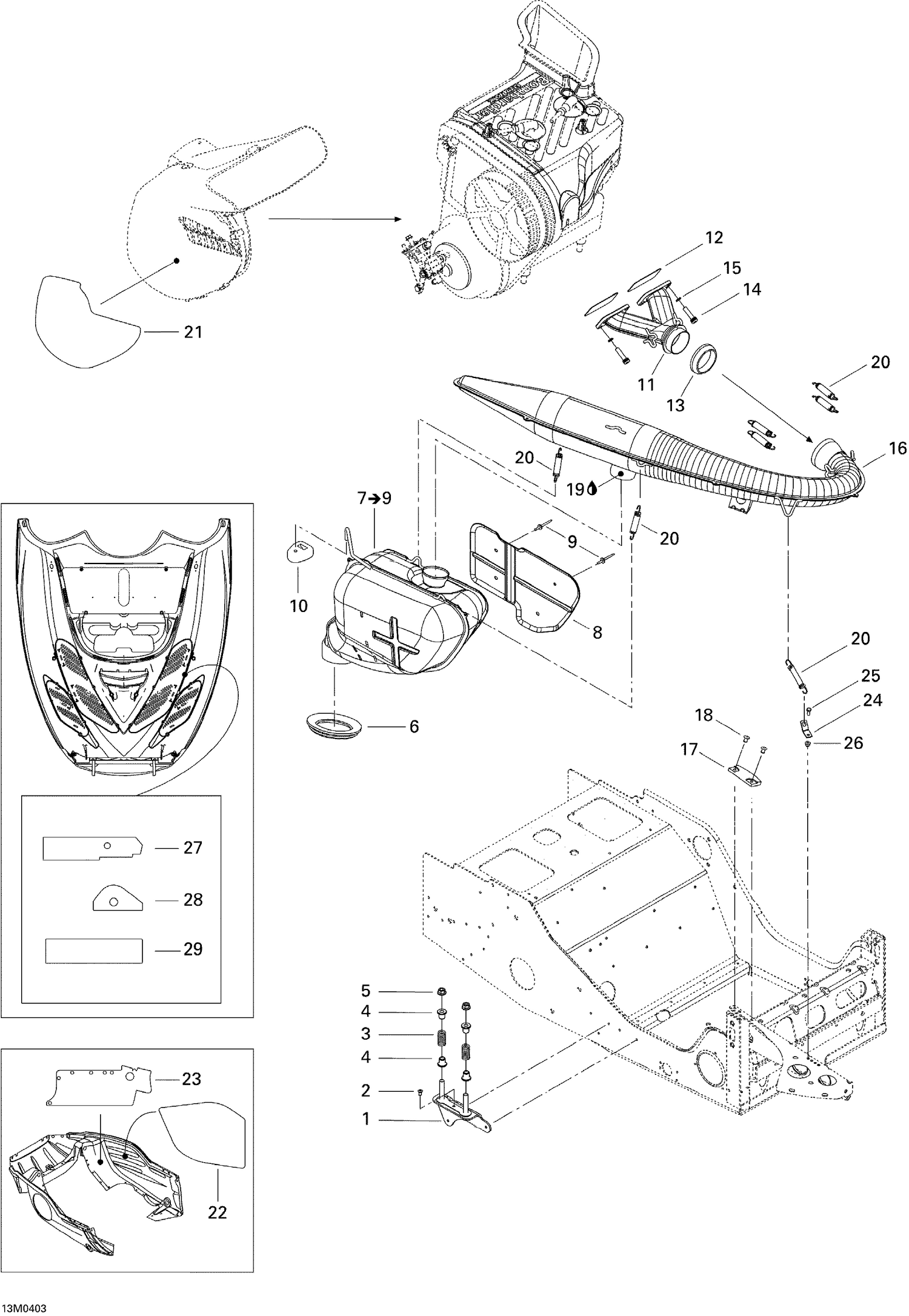

01- Exhaust System, Skandic 550F
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514053263 | Muffler Bracket |
| 2 | 390402200 | Pop Rivet 3/16" |
| 3 | 414913700 | SPRING - Call your local BRP dealership |
| 4 | 514053343 | GUIDE - Call your local BRP dealership |
| 5 | 233481413 | Lock Spring Nut M8 |
| 6 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 8 | 514053389 | Heat Shield |
| 9 | 390910000 | Pop Rivet 3/16” |
| 10 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 11 | 420673065 | Exhaust Manifold |
| 12 | 420831849 | Gasket 1.0 mm |
| 13 | 514053644 | Exhaust Gasket |
| 14 | 205083044 | Socket Head Screw M8 X 30 |
| 15 | 234181401 | Lock Washer 8 mm |
| 16 | 514053645 | Calibrated Tube |
| 17 | 570044100 | Rubber Pad |
| 18 | 293150103 | Pop Rivet 3/16" |
| 19 | 293800090 | Sealant, Loctite, 80 ml |
| 20 | 415107100 | Spring |
| 21 | 514053363 | Reflective Sheet |
| 22 | 514052718 | Reflective Sheet |
| 23 | 514053390 | REFLECTIVE SHEET - Call your local BRP dealership |
| 24 | 514054522 | Spring Bracket This part replaces 514034000. |
| 25 | 207151244 | Hex. Screw M5 X 12 |
| 26 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 27 | 514053435 | Reflective Sheet, Black Cab |
| 28 | 514053446 | Reflective Sheet, Black Cab |
