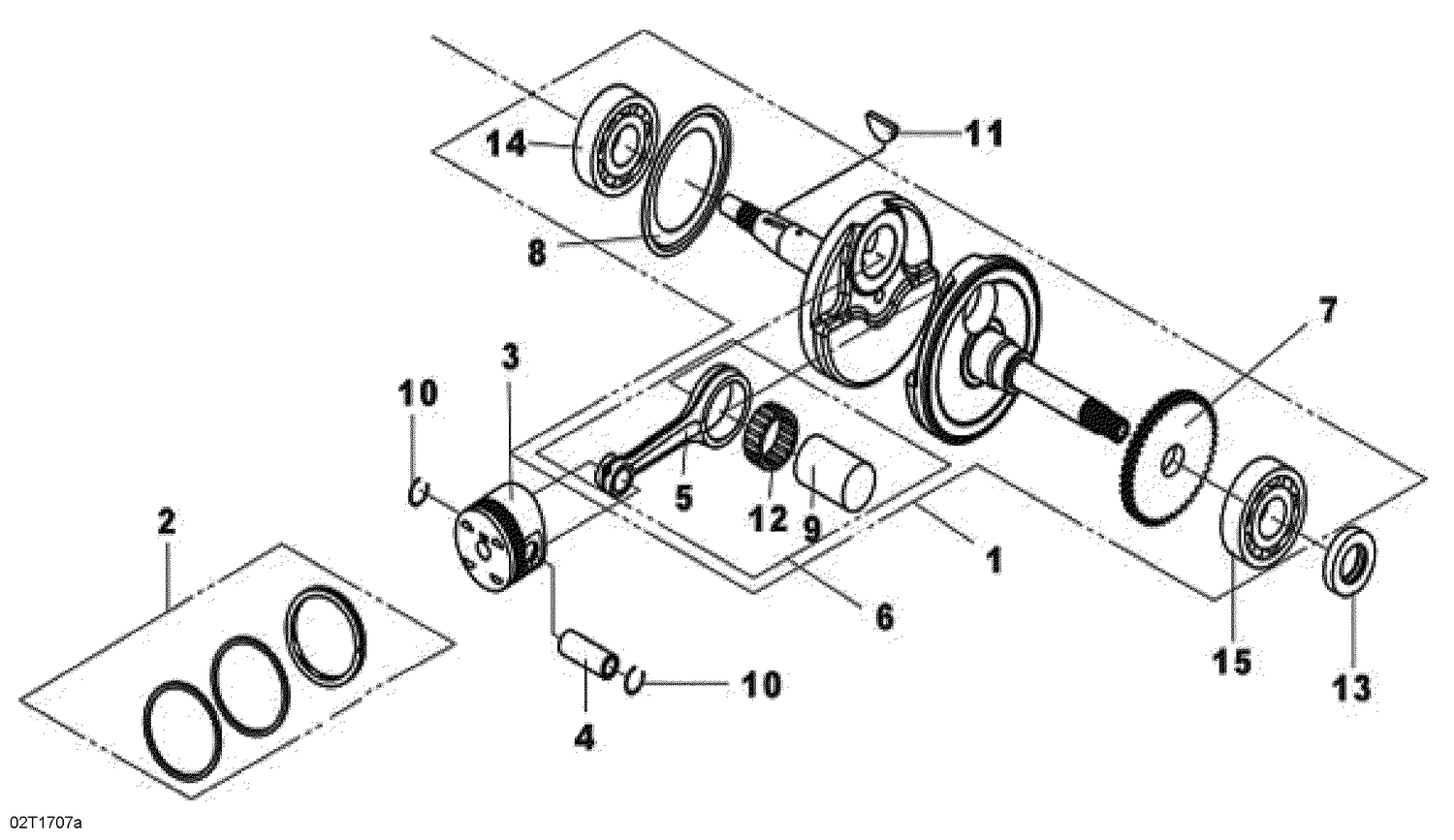

01- Crankshaft and Pistons
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S13000RB1000 | Crankshaft Ass'y |
| 2 | S13010HMA000 | Piston Ring Set |
| 3 | S13101RB1000 | Piston |
| 4 | S13111HMA000 | Piston Pin |
| 5 | NASP/NDPR | Not Available As Spare Parts |
| 6 | NASP/NDPR | Not Available As Spare Parts |
| 7 | NASP/NDPR | Not Available As Spare Parts |
| 8 | NASP/NDPR | Not Available As Spare Parts |
| 9 | NASP/NDPR | Not Available As Spare Parts |
| 10 | S90601HMA000 | Clip Piston Pin |
| 11 | S90701HB6010 | Semicycle Key |
| 12 | S91004RB1000 | Bearing |
| 13 | S91201HMA300 | Oil Seal |
| 14 | S961006207010 | Ball Bearing |
