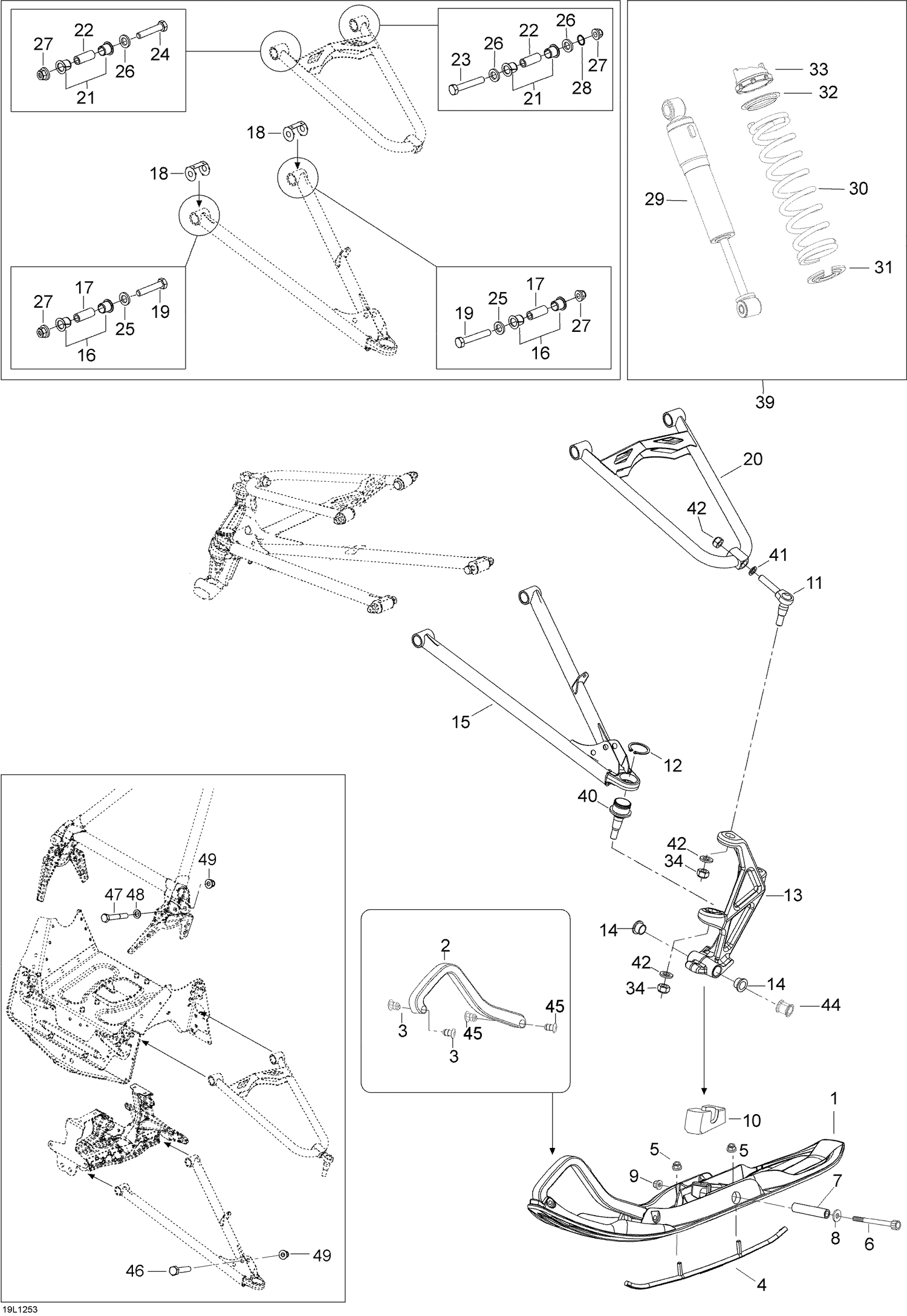

07- Front Suspension And Ski

07- Front Suspension And Ski

Parts (49)

RefPart NumberDescription
1 505073034 Ski
2 505072102 Plastic handle, White
3 505071812 Retainer 17mm long
4 860202822 Round Carbide Runner Kit This part replaces 605352643.
5 233201414 Hex. Flanged Elastic Nut M10
6 40225 Allen screw M10X140
7 506133300 Spacer
8 732900049 Washer
9 33012 Elastic stop nut M10
10 505073149 RUBBER DAMPER - Call your local BRP dealership
11 505072257 Upper Ball Joint
12 293370035 Circlip
13 505073011 LH Ski Leg
13 505073012 RH Ski Leg
14 505072690 Leg Bushing
15 505072497 RH Lower Arm
15 505072498 LH Lower Arm
16 505072208 Bushing
17 505072209 Bushing This part replaces 505072393.
18 505072634 Wear Plate
19 250001024 Screw Hex. M10 X 70 This part replaces 250000291.
20 505072375 Upper Arm
21 505072250 Bushing
22 505072143 Bushing
23 250001023 Screw Hex. M10 X 60 This part replaces 250000290.
24 250001022 Screw Hex. M10 X 50 This part replaces 250000289.
25 503189564 Washer
26 505072392 Washer
27 250100165 Hex. Flanged Elastic Nut M10 This part replaces 250100088.
28 505072448 O-Ring
29 505073342 Front Shock (EUR) This part replaces 505072821.
30 503192286 Spring 300mm-14 N/MM
31 230076 Spring Seat
32 503191872 Spring Guide
33 505073625 Adjustment Cam This part replaces 505070150.
34 250100089 Hex. Elastic Hex. Nut M12
35 Not Available As Spare Part - Hex. Screw M10 X 55
36 Not Available As Spare Part - Hex. Screw M10 X 65
37 Not Available As Spare Part - Washer
38 Not Available As Spare Part - Hex. Flanged Elastic Nut M10
40 505073636 Ball Joint This part replaces 505072682.
41 503189276 Washer
42 250100089 Hex. Elastic Hex. Nut M12
43 234021410 Flat Washer 12 mm
44 505071999 Spacer
45 505072133 Retainer 23mm Long
46 250000443 Hex. Screw M10 X 60
47 207006544 Hex. Screw M10 X 65
48 503189564 Washer
