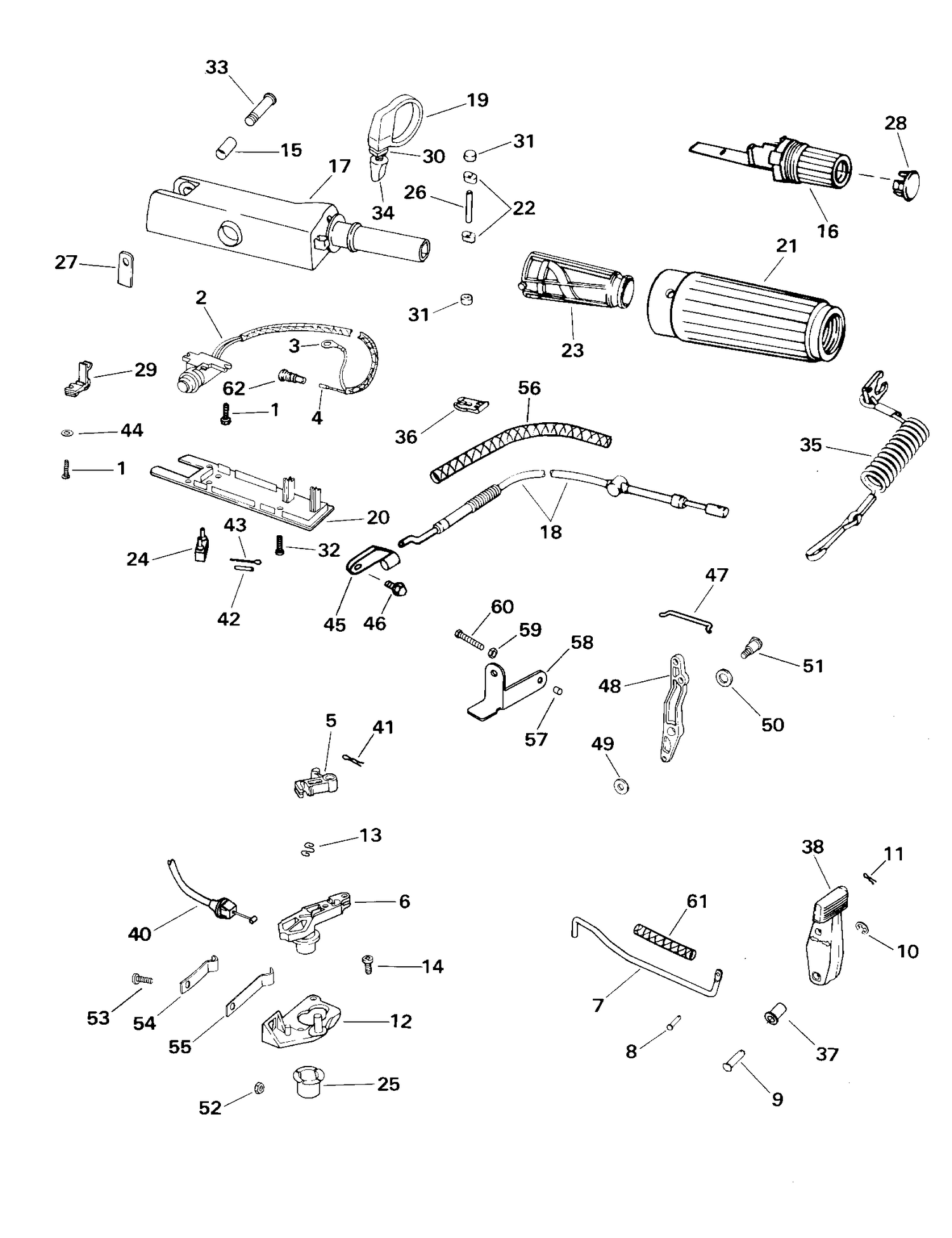

| Ref | Part Number | Description |
|---|
| 2 |
0585104 |
STOP SWITCH |
| 5 |
0336182 |
LEVER, Starter lockout |
| 6 |
0441328 |
LEVER, Shift |
| 7 |
0440194 |
LINK, Shift handle to lever |
| 8 |
0336154 |
PIN, Shift link |
| 9 |
0439585 |
PIN & RETAINER ASSY., Shift handle |
| 12 |
0441112 |
PLATE, Retaining |
| 13 |
0441329 |
DISPOSITIF DE RETENUE, tringlerie de sens de marche |
| 14 |
0441203 |
SCREW, Retaining plate |
| 15 |
0336537 |
SLEEVE, Steering handle screw |
| 17 |
0336156 |
STEERING ARM |
| 18 |
0440178 |
CABLE ASSY., Throttle |
| 19 |
0345064 |
COLLAR, Throttle friction |
| 20 |
0336159 |
COVER, Steering arm |
| 24 |
0336445 |
HOLDER, Spare parts |
| 25 |
0314002 |
BUSHING |
| 27 |
0336220 |
PLATE, Steering arm |
| 29 |
0336558 |
RETAINER, Throttle cable |
| 30 |
0315232 |
RETAINER , Needle valve stbd |
| 33 |
0335377 |
SCREW, Steering handle |
| 37 |
0334135 |
BUSHING |
| 38 |
0336111 |
HANDLE, Shift |
| 40 |
0432927 |
CABLE ASSY., Starter lockout |
| 42 |
0324690 |
DRIVE PIN |
| 44 |
0324956 |
RONDELLE, câble d'accélérateur |
| 47 |
0441126 |
LINK, Lever to carburetor |
| 48 |
0446164 |
THROTTLE LEVER |
| 49 |
0115199 |
RONDELLE , vis du réservoir de carburant |
| 50 |
0446168 |
WASHER, Shift lever |
| 51 |
0446167 |
VIS, manette des gaz |
| 52 |
0441217 |
NUT, Screw, detent spring |
| 53 |
0115751 |
VIS, bobine de charge |
| 54 |
0441230 |
SPRING, Detent |
| 55 |
0441216 |
SPRING, Retaining plate |
| 56 |
0339691 |
GAINE, accélérateur |
| 57 |
0446415 |
CAP, Screw |
| 58 |
0441257 |
STOP, Throttle |
| 59 |
0446115 |
NUT, Carburetor mounting |
| 60 |
0446414 |
SCREW |
| 61 |
0441265 |
SLEEVE, Shift link |
