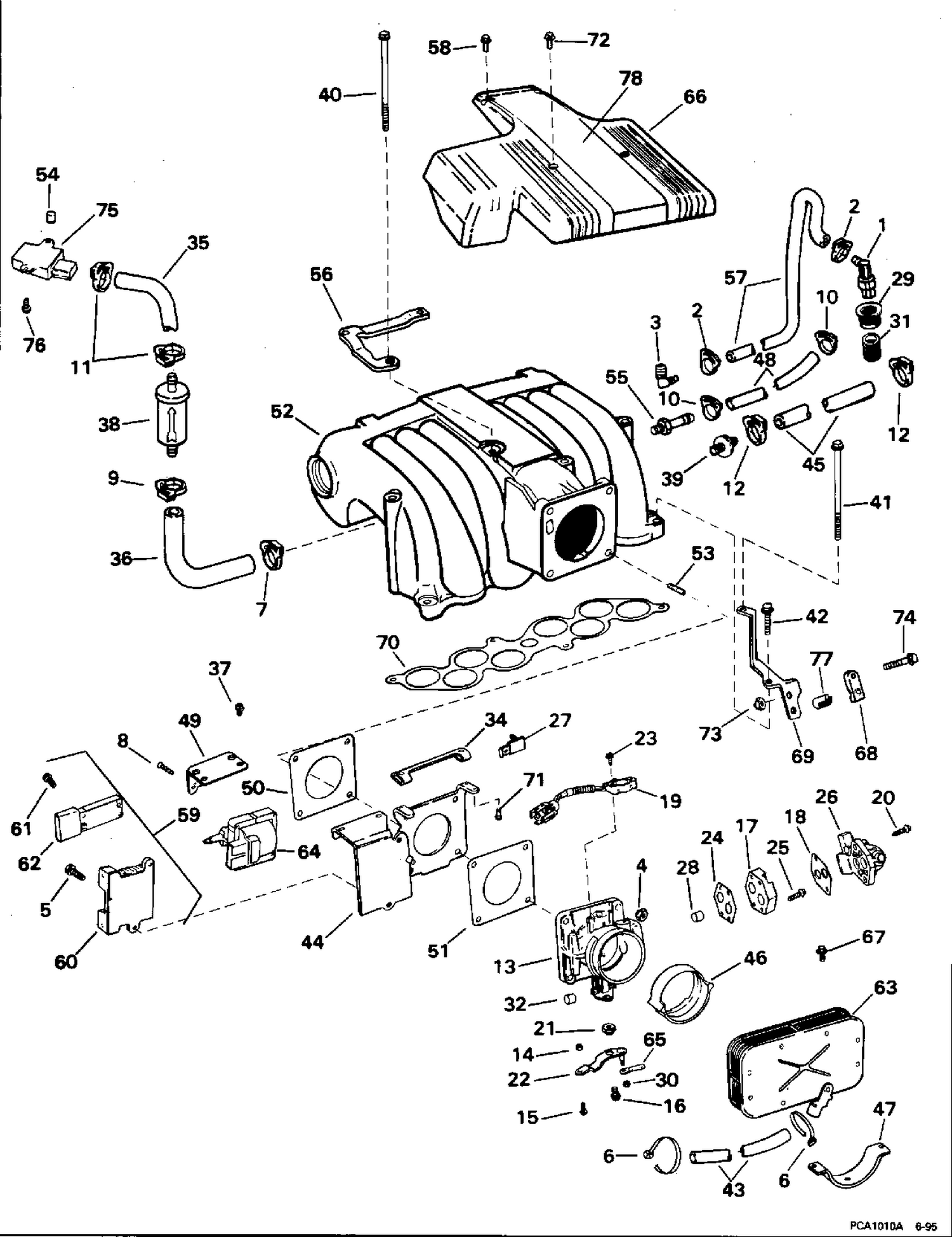

| Ref | Part Number | Description |
|---|
| 1 |
3852820 |
PCV VALVE |
| 3 |
0174177 |
ELBOW KIT This part replaces 3852480. |
| 4 |
0316355 |
BUT, Carburetor mounting This part replaces 3852142. |
| 6 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158. |
| 8 |
0321219 |
VIS, vis de fixation This part replaces 3852168. |
| 9 |
0322654 |
PINCE RAPIDE, flexible d'huile This part replaces 3852172. |
| 11 |
0322654 |
PINCE RAPIDE, flexible d'huile This part replaces 3852172. |
| 13 |
3850768 |
THROTTLE BODY ASSY. |
| 13 |
3855163 |
THROTTLE BODY ASSY. |
| 16 |
0335200 |
VIS, capteur position de vilebrequin vers support This part replaces 3852212. |
| 17 |
3853612 |
ADAPTER, Air bypass solenoid |
| 18 |
3853613 |
GASKET, Adapter to solenoid |
| 19 |
3850988 |
THROTTLE POSITION SENSOR |
| 20 |
3853614 |
SCREW, Air by-pass solenoid |
| 21 |
3853627 |
NUT, Throttle lever |
| 22 |
3850353 |
LEVER & PIN, Throttle body |
| 23 |
3850986 |
SCREW, Throttle sensor |
| 24 |
3853613 |
GASKET, Adapter to solenoid |
| 25 |
3853614 |
SCREW, Air by-pass solenoid |
| 26 |
3850987 |
VALVE, Throttle air by-pass |
| 27 |
3853734 |
CLIP, Connector |
| 28 |
3853748 |
FILTER, Noise suppressor |
| 29 |
3853767 |
GROMMET, PCV valve |
| 30 |
3853729 |
NUT, Lever to bracket |
| 31 |
3853768 |
ELEMENT, Crankcase vent |
| 32 |
3853772 |
CAP, Idle screw |
| 34 |
3853775 |
BRACKET, Styling cover |
| 35 |
3852377 |
HOSE, MAP sensor to filter |
| 36 |
3852376 |
HOSE, Filter to intake manifold |
| 37 |
0335200 |
VIS, capteur position de vilebrequin vers support This part replaces 3852212. |
| 38 |
0398327 |
FILTER, MAP sensor This part replaces 3852224. |
| 40 |
3853760 |
SCREW, Intake manifold, center |
| 41 |
3853635 |
SCREW, Instake manifold, stbd. |
| 42 |
3853638 |
SCREW, Intake manifold |
| 43 |
3853723 |
HOSE, Valve cover to arrestor |
| 44 |
3853763 |
BRACKET, TFI module & E-coil |
| 45 |
3853582 |
HOSE, Reservoir to pulse limiter |
| 46 |
3850922 |
GROMMET, Flame arrestor |
| 46 |
3853594 |
GROMMET, Flame arrestor |
| 47 |
3853595 |
CLAMP, Flame arrestor |
| 48 |
3853765 |
HOSE, Pressure regulator |
| 49 |
3853625 |
BRACKET, E-coil to TFI bracket |
| 50 |
3853761 |
GASKET, Bracket to manifold |
| 51 |
3853761 |
GASKET, Bracket to manifold |
| 52 |
3854276 |
MANIFOLD ASSY., Upper intake |
| 54 |
3853537 |
CAP, Breaker assy |
| 55 |
3853639 |
FITTING, Hose to reducer |
| 56 |
3853762 |
BRACKET, Cover |
| 57 |
HOSE, |
PCV valve |
| 59 |
3854139 |
MODULE ASSY., TFI |
| 60 |
3854272 |
HEAT SINK |
| 61 |
3854273 |
SCREW |
| 62 |
3854274 |
MODULE, TFI |
| 63 |
3850915 |
FLAME ARRESTOR |
| 63 |
3854144 |
FLAME ARRESTOR |
| 64 |
3854161 |
E-COIL |
| 65 |
3850950 |
ANCHOR, Cable |
| 66 |
3853571 |
COVER This part replaces 3854633. |
| 67 |
3853722 |
SCREW, Flame arrestor clamp |
| 68 |
3850266 |
ANCHOR BLOCK |
| 69 |
3850226 |
BRACKET, Throttle anchor |
| 70 |
3853636 |
GASKET, Upper to lower intake |
| 72 |
3853764 |
SCREW, Flame arrestor cover |
| 74 |
0303459 |
ECREW,Exhaust cover,1-1/2"long This part replaces 3852048. |
| 75 |
3854160 |
SENSOR, Manifold air pressure |
| 76 |
3853764 |
SCREW, Flame arrestor cover |
| 77 |
3852019 |
TRUNNION, S.A.E. Cable |
| 78 |
3854989 |
DECAL, 5.8 |
