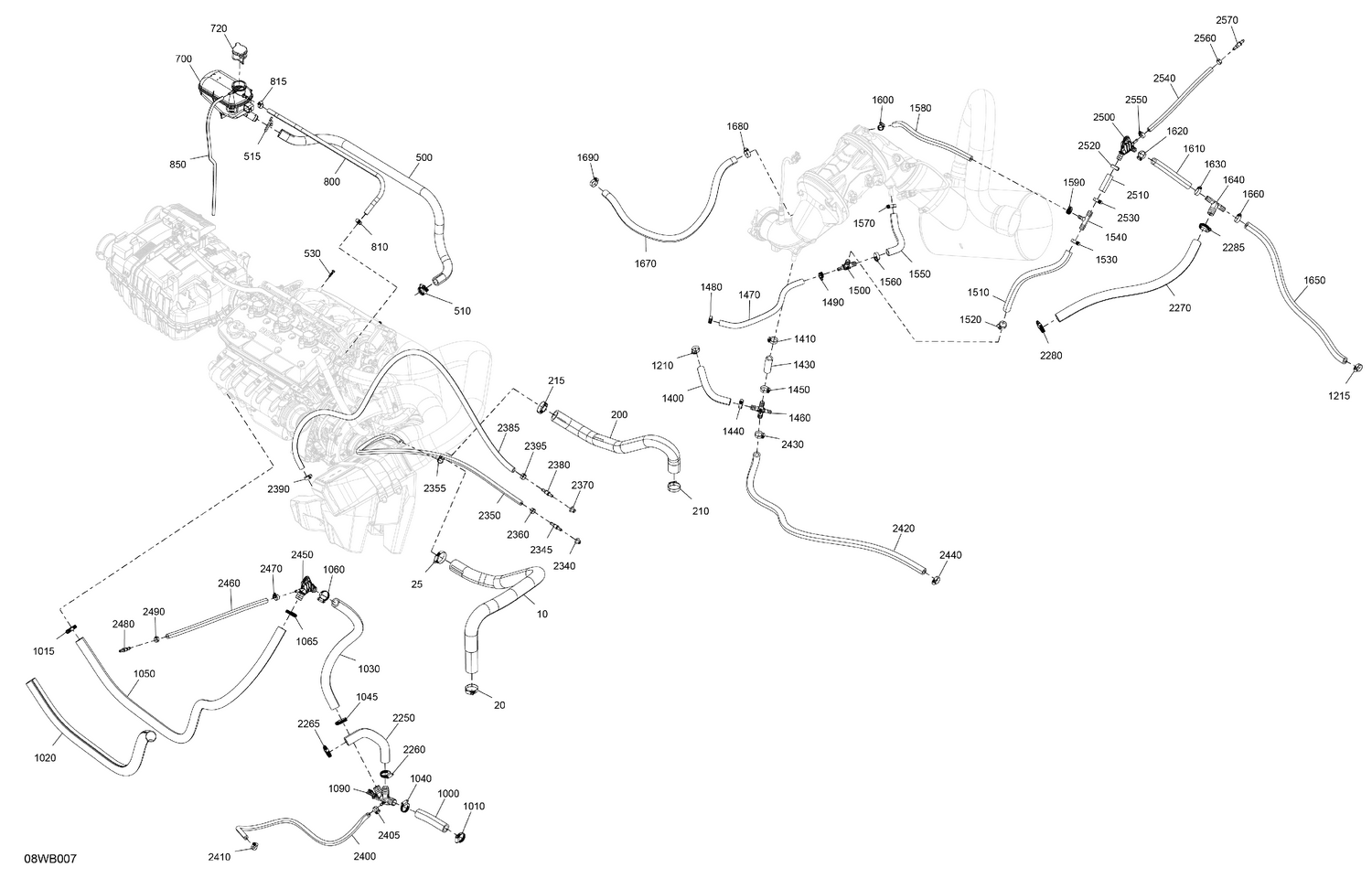

02- MECHANICS - Cooling
Parts (92)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 276000516 | Hose |
| 20 | 293650245 | Norma Clamp |
| 25 | 293650245 | Norma Clamp |
| 200 | 276000517 | Formed Hose |
| 210 | 293650245 | Norma Clamp |
| 215 | 293650245 | Norma Clamp |
| 500 | 276000523 | Coolant Tank Hose |
| 510 | 293650019 | Tridon Gear Clamp |
| 515 | 293650115 | Spring Clamp |
| 530 | 241152060 | Hex. Flange Screw K50 X 20 |
| 700 | 276000419 | Coolant Tank |
| 720 | 276000100 | Pressure Cap |
| 800 | 276000425 | Hose 6,4 MM ID |
| 810 | 293650287 | Gear Clamp |
| 815 | 293650287 | Gear Clamp |
| 850 | 219704389 | Polyurethane Hose 4000MM Long |
| 1000 | 219704420 | Was 509000407 Hose 8 mm |
| 1010 | 293650284 | Gear Clamp |
| 1015 | 293650284 | Gear Clamp |
| 1020 | 219704402 | Tubing 25 MM 1000MM Long |
| 1030 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 1040 | 293650284 | Gear Clamp |
| 1045 | 293650284 | Gear Clamp |
| 1050 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 1060 | 293650284 | Gear Clamp |
| 1065 | 293650284 | Gear Clamp |
| 1090 | 276000544 | Fitting |
| 1210 | 293650285 | Clamp Gear |
| 1215 | 293650285 | Clamp Gear |
| 1400 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1410 | 293650285 | Clamp Gear |
| 1430 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1440 | 293650285 | Clamp Gear |
| 1450 | 293650285 | Clamp Gear |
| 1460 | 276000545 | Fitting |
| 1470 | 219704420 | Was 509000407 Hose 8 mm |
| 1480 | 293650285 | Clamp Gear |
| 1490 | 293650285 | Clamp Gear |
| 1500 | 293710174 | T-Fitting |
| 1510 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1520 | 293650285 | Clamp Gear |
| 1530 | 293650285 | Clamp Gear |
| 1540 | 293710116 | T-Fitting |
| 1550 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1560 | 293650285 | Clamp Gear |
| 1570 | 293650285 | Clamp Gear |
| 1580 | 219704420 | Was 509000407 Hose 8 mm |
| 1590 | 293650285 | Clamp Gear |
| 1600 | 293650285 | Clamp Gear |
| 1610 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1620 | 293650285 | Clamp Gear |
| 1630 | 293650285 | Clamp Gear |
| 1640 | 293710132 | T-Fitting |
| 1650 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1660 | 293650285 | Clamp Gear |
| 1670 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1680 | 293650285 | Clamp Gear |
| 1690 | 293650285 | Clamp Gear |
| 2250 | 276000535 | Formed Hose |
| 2260 | 293650284 | Gear Clamp |
| 2265 | 293650284 | Gear Clamp |
| 2270 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 2280 | 293650284 | Gear Clamp |
| 2285 | 293650284 | Gear Clamp |
| 2340 | 293720029 | Grommet |
| 2345 | 414518500 | Male Connector |
| 2350 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 2355 | 293650287 | Gear Clamp |
| 2360 | 293650025 | Oetiker Gear Clamp |
| 2370 | 293720029 | Grommet |
| 2380 | 414518500 | Male Connector |
| 2385 | 219704420 | Was 509000407 Hose 8 mm |
| 2390 | 293650287 | Gear Clamp |
| 2395 | 293650053 | Crimp Clamp |
| 2400 | 276000425 | Hose 6,4 MM ID |
| 2405 | 293650287 | Gear Clamp |
| 2410 | 293650287 | Gear Clamp |
| 2420 | 219704394 | Was 276000001 Hose 12.5 mm |
| 2430 | 293650285 | Clamp Gear |
| 2440 | 293650285 | Clamp Gear |
| 2450 | 276000547 | Fitting |
| 2460 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 2470 | 293650287 | Gear Clamp |
| 2480 | 414518500 | Male Connector |
| 2490 | 293650025 | Oetiker Gear Clamp |
| 2500 | 276000548 | Fitting |
| 2510 | 219704394 | Was 276000001 Hose 12.5 mm |
| 2520 | 293650285 | Clamp Gear |
| 2530 | 293650285 | Clamp Gear |
| 2540 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 2550 | 293650287 | Gear Clamp |
| 2560 | 293650025 | Oetiker Gear Clamp |
