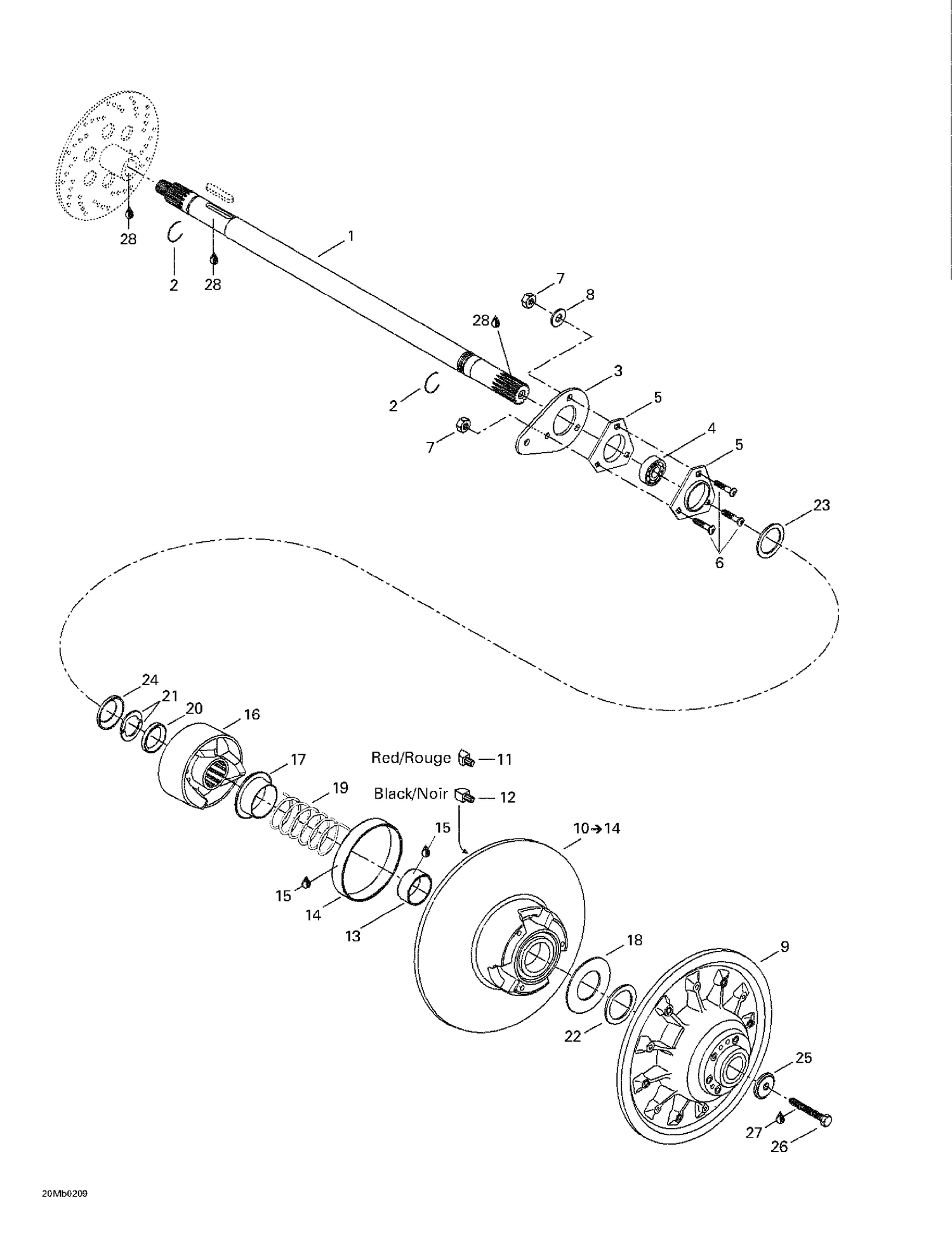

05- Driven Pulley
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 371910000 | Circlip |
| 3 | 080044200 | Spacer (Casting) |
| 4 | 504152008 | BALL BEARING - Call your local BRP dealership |
| 5 | 501025000 | FLANGE - Call your local BRP dealership |
| 6 | 205482546 | SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership |
| 7 | 232581414 | Hex. Elastic Stop Nut M8 |
| 8 | 234081410 | Flat Washer 8 mm |
| 9 | 417126526 | Fixed Flange Ass'y |
| 11 | 417126373 | REAR CAM SLIDER SHOE, RED - Call your local BRP dealership |
| 12 | 417126374 | Front Cam Slider Shoe, Black |
| 13 | 417126901 | BUSHING - Call your local BRP dealership This part replaces 415092600. |
| 14 | 415092700 | Bushing |
| 15 | 413703100 | Loctite 609, 10 ml |
| 16 | 417124700 | Cam Ass'y |
| 17 | 415006000 | GUARD - Call your local BRP dealership |
| 18 | 504099600 | STOPPER WASHER - Call your local BRP dealership |
| 19 | 415092800 | YELLOW SPRING - Call your local BRP dealership |
| 20 | 417126375 | Spacer |
| 21 | 371911000 | HALF KEY - Call your local BRP dealership |
| 22 | 504112300 | SHIM - Call your local BRP dealership |
| 23 | 417300265 | Spacer This part replaces 417300054. |
| 24 | 417300055 | Protector |
| 25 | 517302322 | Strength Washer |
| 26 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 27 | 293800060 | Loctite 243, 10 ml |
