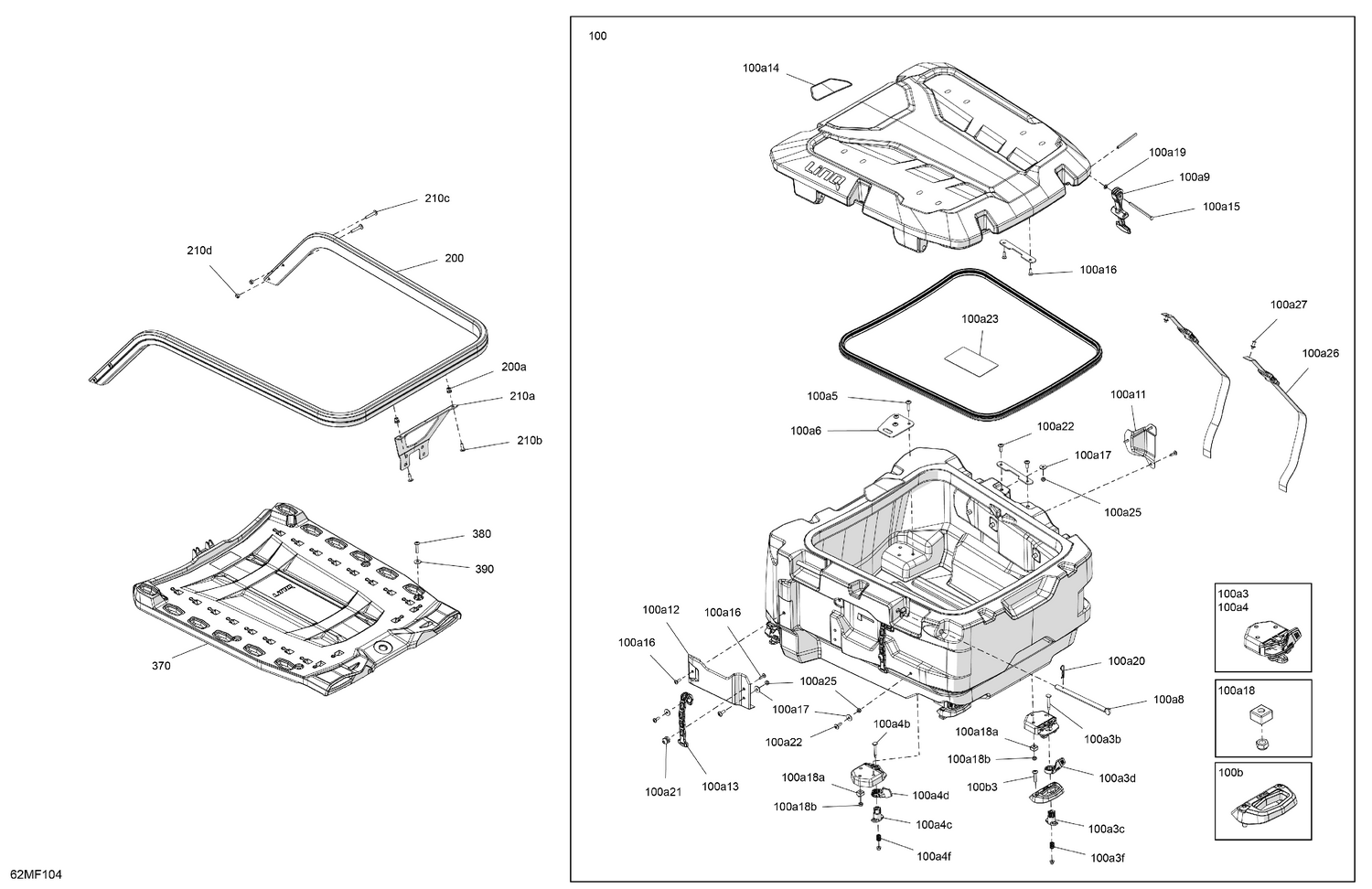

07- Body - Cargo
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 100a11 | 520002074 | Saw Support |
| 100a12 | 520002075 | Axe Support |
| 100a13 | 520002076 | Retaining Strap |
| 100a14 | 520002105 | Warning Label |
| 100a15 | 520002070 | ROD - Call your local BRP dealership |
| 100a16 | 250000720 | Torx Screw K50 X 16 |
| 100a17 | 234062670 | Stainless Steel Flat Washer |
| 100a18a | 269500252 | M6 Nut Housing Ass'y |
| 100a18b | 232561600 | Hex. Elastic Stop Nut M6 |
| 100a19 | 732610072 | Push Nut |
| 100a20 | 520002080 | Cotter Hairpin |
| 100a21 | 511001453 | Retaining Rod |
| 100a22 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 100a23 | 520002102 | Warning Label |
| 100a25 | 232561494 | Elastic Stop Nut M6 |
| 100a26 | 520002162 | Retaining Strap |
| 100a27 | 293150067 | Rivet |
| 100a3b | 511001138 | Rod |
| 100a3c | 708200267 | RH Latch |
| 100a3d | 708200374 | RH Lever |
| 100a3f | 708200263 | Spring |
| 100a4b | 511001138 | Rod |
| 100a4c | 708200266 | LH Latch |
| 100a4d | 708200373 | LH Lever |
| 100a4f | 708200263 | Spring |
| 100a5 | 250000758 | Torx Screw M6 X 25 |
| 100a6 | 520001907 | Plate |
| 100a8 | 520002066 | Pivot |
| 100a9 | 520003026 | Lid Latch |
| 100b3 | 250000843 | Torx Truss Screw M6 X 30 |
| 200a | 293450275 | Insert |
| 210a | 511001266 | Rear Support Rack |
| 210b | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 210c | 250001258 | Screw Torx M6 X 35 |
| 210d | 232561414 | Elastic Stop Nut M6 |
| 370 | 511001145 | Multi Purpose Plate |
| 380 | 250000843 | Torx Truss Screw M6 X 30 |
