| Ref | Part Number | Description |
|---|
| 2 |
0125455 |
HOUSING, Control This part replaces 0123244. |
| 3 |
0125456 |
HOUSING This part replaces 0123245. |
| 4 |
0173598 |
TRAY |
| 5 |
0123261 |
SHAFT, Remote control |
| 6 |
0123496 |
DRIVE GAR, Starboard |
| 8 |
0123265 |
SPRING, Drive gear |
| 9 |
0123266 |
BRUSHING, Shaft to housing |
| 10 |
0123267 |
WASHER |
| 11 |
0123268 |
ROLLER Throttle cam |
| 12 |
0123269 |
WASHER |
| 13 |
0123270 |
CAM Neutral switch |
| 14 |
0123271 |
BUSHING, Throttle hub |
| 15 |
0909859 |
SCREW, Control housing |
| 17 |
0123274 |
SCREW, Tray to housing |
| 18 |
0123279 |
HANDLE, Side mount |
| 19 |
0123281 |
PLATE, Neutral lock |
| 20 |
0123531 |
KNOB, Locknut button |
| 21 |
0123535 |
KNOB Trim/tilt switch |
| 22 |
0123532 |
END CAMP,Knob |
| 25 |
0175090 |
COVER, Handle This part replaces 0123293. |
| 26 |
0123443 |
SPRING, Neutral lock |
| 27 |
0123536 |
GROMMET, Trim switch |
| 28 |
0123312 |
SCREW, Mounting flange |
| 29 |
0123316 |
SCREW, Flange to boat |
| 30 |
0123317 |
VIS, ancrage & solénoïde d'amorçage |
| 33 |
0123342 |
SHOE Detent roller |
| 34 |
0123350 |
BUSHING |
| 35 |
0173571 |
THROTTLE CAM & ARMS ASSY. |
| 36 |
0173477 |
MOUNTING FLANGE & PIN |
| 37 |
0173478 |
THROTTLE CAM & ARM ASSY. |
| 38 |
0173480 |
NEUTRAL START SWITCH |
| 39 |
0173648 |
TRIM SWITCH & LEAD |
| 42 |
0173572 |
LEAD ASSEM BLY |
| 45 |
0303887 |
WASHEER, Pin to swivel bracket |
| 48 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 49 |
0173499 |
LOCKNUT BUTTON ASSEMBLY |
| 50 |
0173542 |
SHAFT GEAR & ARMS ASSY |
| 52 |
0308545 |
SCREW |
| 0982048 |
0982048 |
CABLE HARDWARE KIT |
| 0982444 |
0982444 |
REMOTE CONTORL ASSEMBLY-CONCEALED SIDE MO |
| 0982445 |
0982445 |

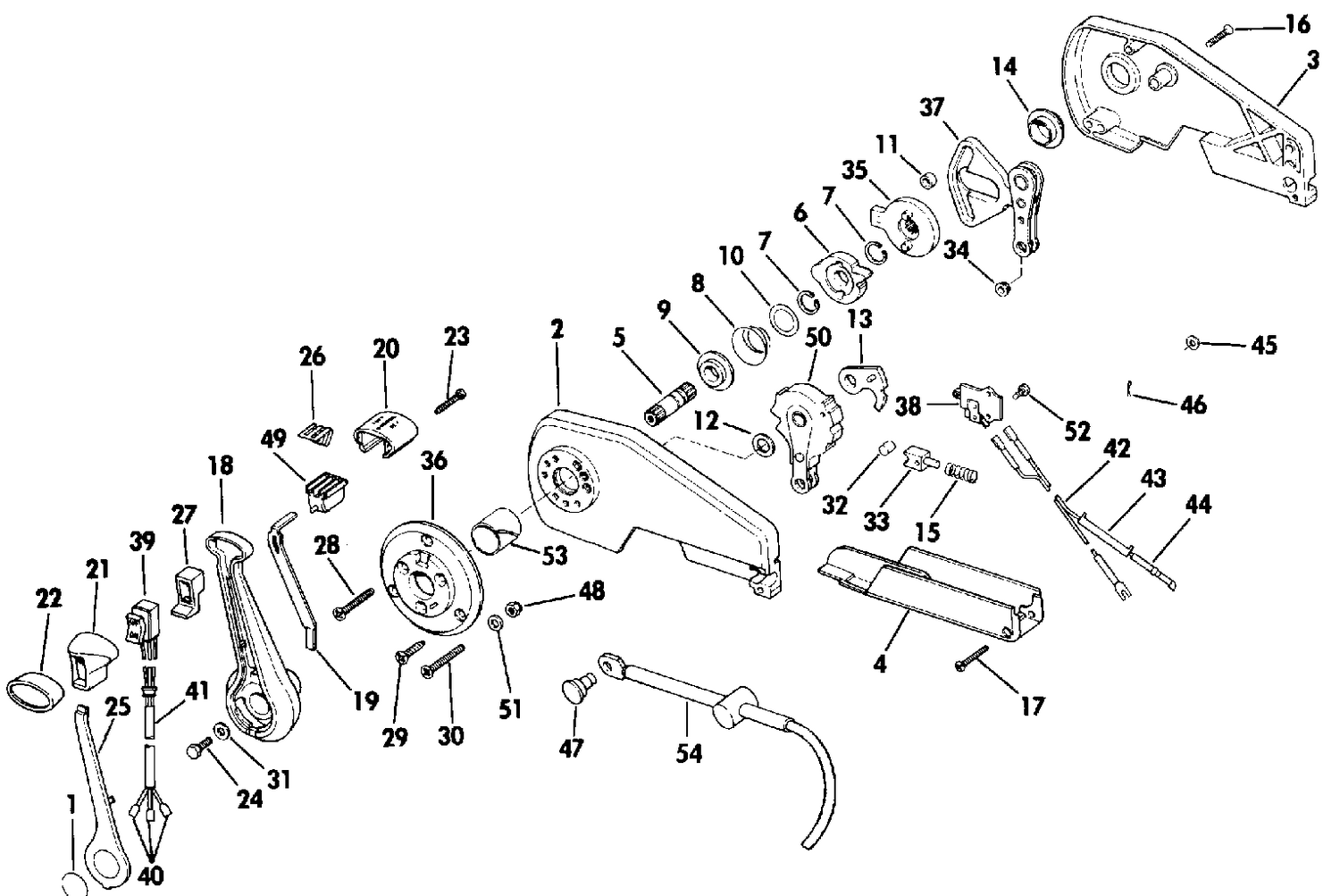

REMOTE CONTROL ASSEMBLY - Concealed side mount with trim switch |
