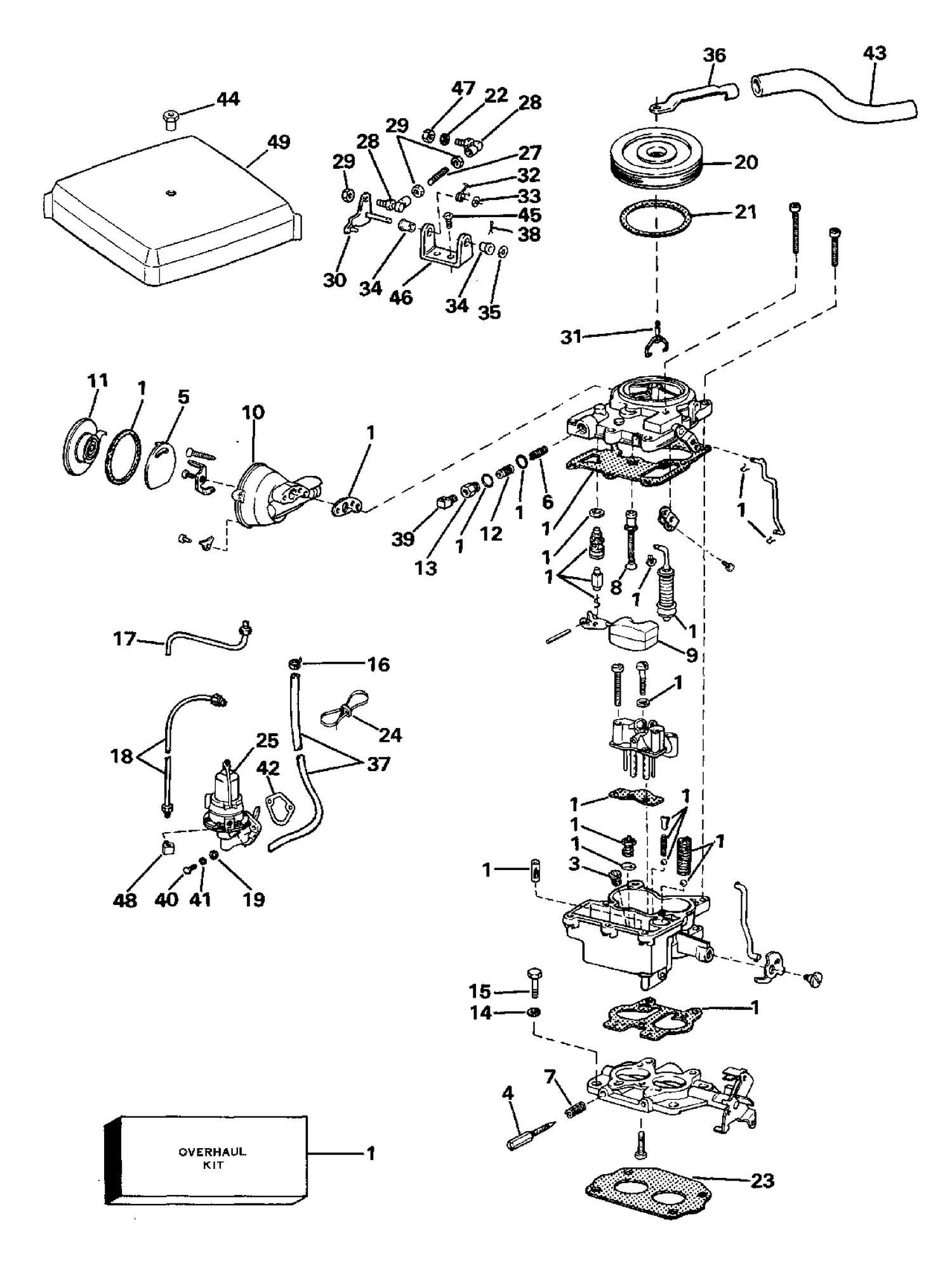

| Ref | Part Number | Description |
|---|
| 1 |
0982384 |
CARBURETOR KIT |
| 2 |
0381398 |
POWER VALVE ASSEMBLY |
| 3 |
0913667 |
METERING JET |
| 4 |
0913666 |
IDLE NEEDLE |
| 5 |
0910184 |
BAFFLE PLATE |
| 6 |
0314548 |
SPRING, Fuel filter |
| 7 |
0312445 |
SPRING, Idle needle |
| 8 |
0382013 |
POWER PISTON ASSEMBLY |
| 9 |
0982385 |
FLAT ASSY. |
| 10 |
0980006 |
CHOKE HOUSING ASSEMBLY |
| 11 |
0980005 |
COVER COIL & GASKET |
| 12 |
0908034 |
FILTER, Fuel inlet |
| 13 |
0908035 |
FILTER NUT, Fuel inlet |
| 15 |
0913209 |
SCREW, Carburetor |
| 16 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 17 |
0980093 |
HEAT EXCHANGE TUBE ASSY |
| 18 |
0985391 |
FUEL LINE, Pump to carb |
| 19 |
0306453 |
LOCKWASHER, Fuel pump |
| 20 |
0982105 |
FLAME ARRESTOR |
| 21 |
0908947 |
GASKET, Flame arrestor |
| 23 |
0315055 |
GASKET, Carb to adapter |
| 25 |
0985337 |
FUEL PUMP ASSEMBLY |
| 26 |
3852506 |
FITTING, Fuel pump outlet This part replaces 0910415. |
| 27 |
0908082 |
LINK |
| 28 |
0379926 |
BALL JOINT |
| 30 |
0980094 |
THROTTLE SHAFT ASSEMBLY |
| 31 |
0913641 |
BAIL, Flame arrestor |
| 32 |
0908450 |
SPRING, Throttle return |
| 33 |
0908187 |
RETAINER, Throttle arm |
| 34 |
0908979 |
BUSHING, Pivot bracket |
| 35 |
0303887 |
WASHEER, Pin to swivel bracket |
| 36 |
3852438 |
CONNECTOR, Crankcase vent This part replaces 0908240. |
| 37 |
HOSE, |
Pump vent to carb |
| 39 |
0310924 |
CLAMP, Main cable to adapter |
| 40 |
0306435 |
SCREW, Brace to alternator |
| 42 |
0311064 |
GASKET, Fuel pump |
| 43 |
0912531 |
HOSE, Cover |
| 44 |
3852749 |
NUT, Cover This part replaces 0913631. |
| 45 |
0304992 |
SCREW |
| 46 |
0908081 |
PIVOT BRACKET, Lilnkage |
| 48 |
3852506 |
FITTING, Fuel pump outlet This part replaces 0910415. |
| 0984180 |
0984180 |
CARBURETOR ASSEMBLY |
