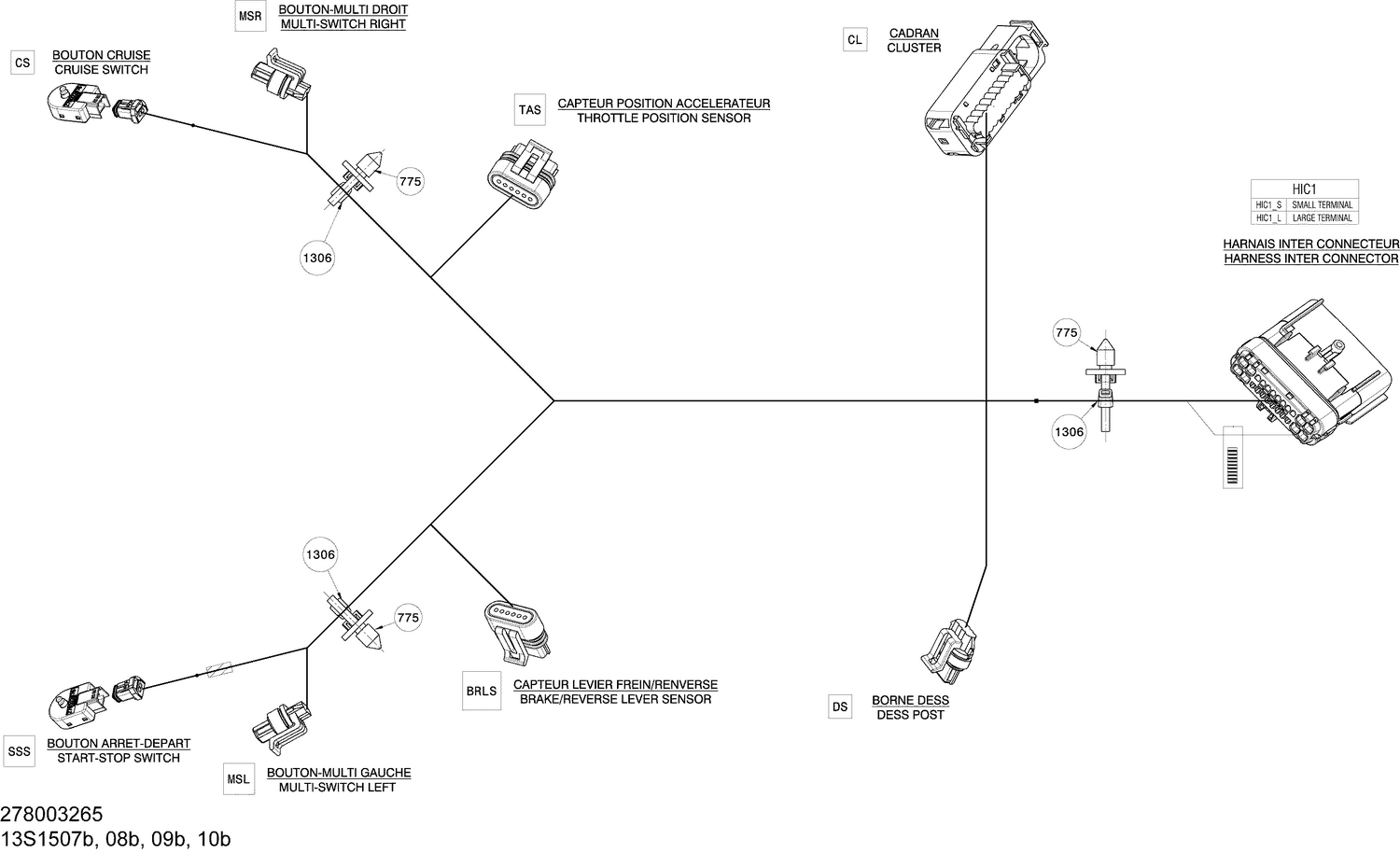

10- Electrical Harness - Steering Harness - 278003265 (Refer to Electrical System for Model)
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| BRLS | 278002299 | Female Terminal Housing 6 Circuits |
| BRLS | 710001119 | Female Terminal |
| CL | 278002385 | Male Terminal Housing, 20 Circuits |
| CL | 710000925 | Terminal |
| CL | 710001153 | Seal Wire |
| CL | 710001163 | Wire Seal |
| CL | 710001164 | Female Terminal |
| CL | 710001225 | Cap |
| CS | 278002676 | Switch Start/Stop This part replaces 278002676. |
| CS | 278002856 | Housing JAE 2 Circuits |
| CS | 278002857 | Female Terminal |
| DS | 710000925 | Terminal |
| DS | 710001153 | Seal Wire |
| DS | 710001161 | Housing |
| HIC1_L | 278002456 | Male Terminal |
| HIC1_S | 278002452 | HOUSING - Call your local BRP dealership |
| HIC1_S | 278002454 | Male Terminal |
| MSL | 278002387 | Female Terminal Housing 3 Circuits |
| MSL | 710001163 | Wire Seal |
| MSL | 710001164 | Female Terminal |
| MSR | 278003442 | Female Terminal Housing, 3 Circuits This part replaces 278002386. |
| MSR | 710001163 | Wire Seal |
| MSR | 710001164 | Female Terminal |
| SSS | 278002676 | Switch Start/Stop This part replaces 278002676. |
| SSS | 278002856 | Housing JAE 2 Circuits |
| SSS | 278002857 | Female Terminal |
| TAS | 278002299 | Female Terminal Housing 6 Circuits |
| 775 | Not | Available As Spare Part - Mount Dart |
| 1306 | Not | Available As Spare Part - Tie Rap |
