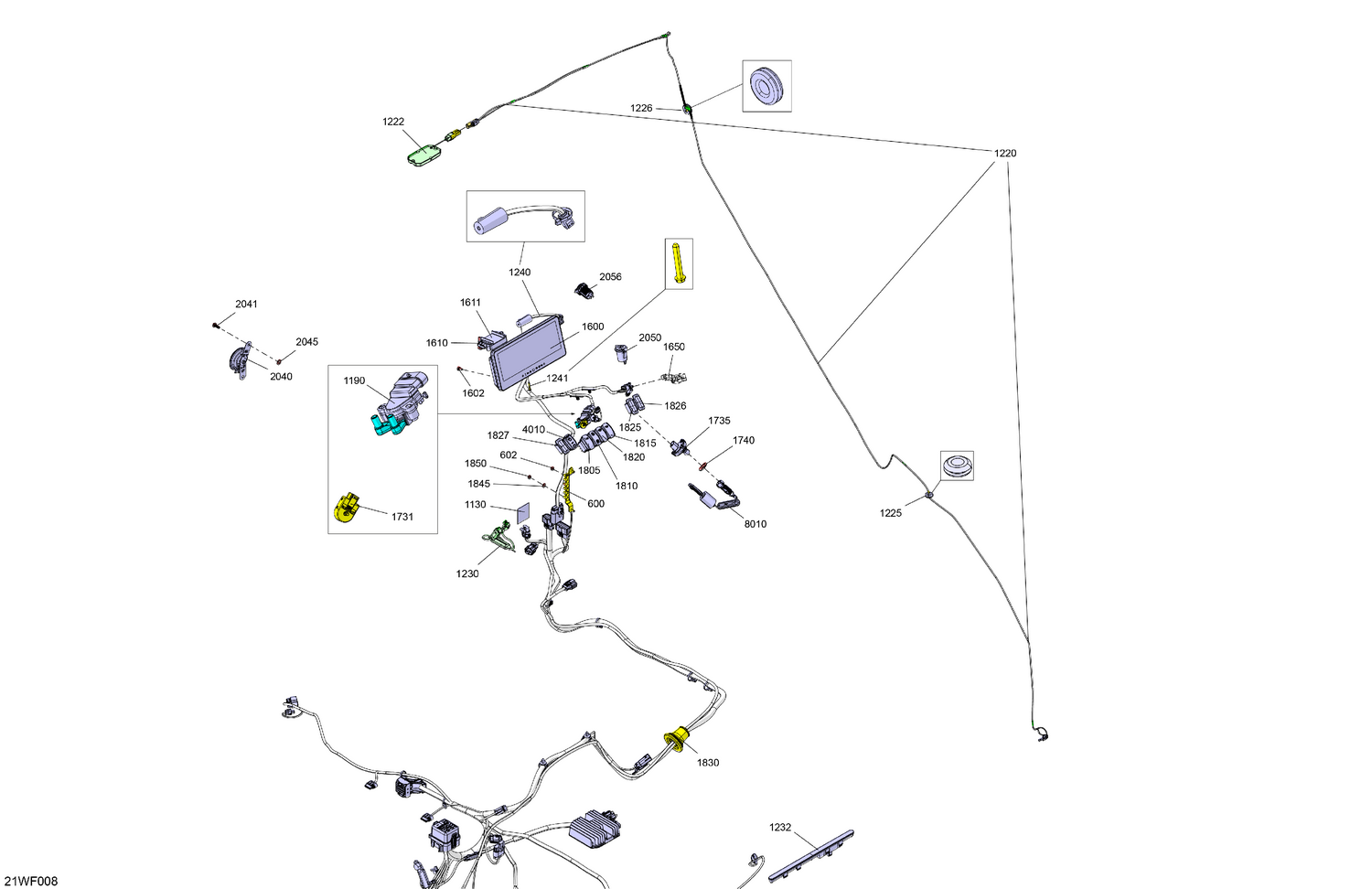

08- ELECTRIC - Electric Upper Section
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 600 | 281000234 | Busbar Ass'y |
| 602 | 232561200 | Brass Elastic Stop Nut M6 |
| 1130 | 219906800 | FUSE HOLDER LABEL |
| 1190 | 278004929 | Sensor |
| 1220 | 278004697 | Roof Wiring Harness |
| 1222 | 278004509 | Dome Light |
| 1225 | 293720062 | Grommet |
| 1226 | 517303756 | Grommet |
| 1230 | 278004260 | LED Module |
| 1232 | 278004205 | Tile Light |
| 1240 | 278004207 | Console Light |
| 1241 | 241142560 | Hex. Flange Screw K40 X 25 |
| 1600 | 710010374 | Multifunction Gauge 10 |
| 1602 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1610 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 1611 | 278004506 | GPS |
| 1650 | 278002283 | Throttle Position Sensor |
| 1731 | 278002676 | Switch Start/Stop This part replaces 278002676. |
| 1735 | 710008832 | Terminal DESS CAN |
| 1740 | 278004274 | Specialized Nut |
| 1805 | 278003690 | Horn Switch |
| 1810 | 278003691 | Nav & Anchor Light Switch |
| 1815 | 278003692 | Pump Switch |
| 1820 | 278003693 | Vent Switch |
| 1825 | 278004279 | Plug |
| 1826 | 278004279 | Plug |
| 1827 | 278004279 | Plug |
| 1830 | 293720134 | Cable Boot |
| 1845 | 234061600 | Stainless Flat Washer M6 |
| 1850 | 232561200 | Brass Elastic Stop Nut M6 |
| 2040 | 278003906 | Horn |
| 2041 | 250001171 | Plastite Torx Screw Cone HD.M6.81X2 |
| 2045 | 234081600 | Stainless, Flat Washer 8 mm |
| 2056 | 219400510 | USB Outlet |
| 4010 | 278004380 | Rocker Switch Button |
| 8010 | 278003400 | Safety Lanyard Ass'y, RFID |
